Whether you’re building a robot, automating industrial processes, or working on a DIY electronics project, Cytron’s motor drivers provide reliable, high-performance control for DC and stepper motors. With a wide range of options—from compact drivers to high-power solutions—Cytron ensures you have the right motor driver for your application.

In this blog, we’ll explore Cytron’s motor driver lineup, highlighting key features, applications, and a comparison table to help you choose the best option for your needs.

Cytron Motor Driver Product Lineup

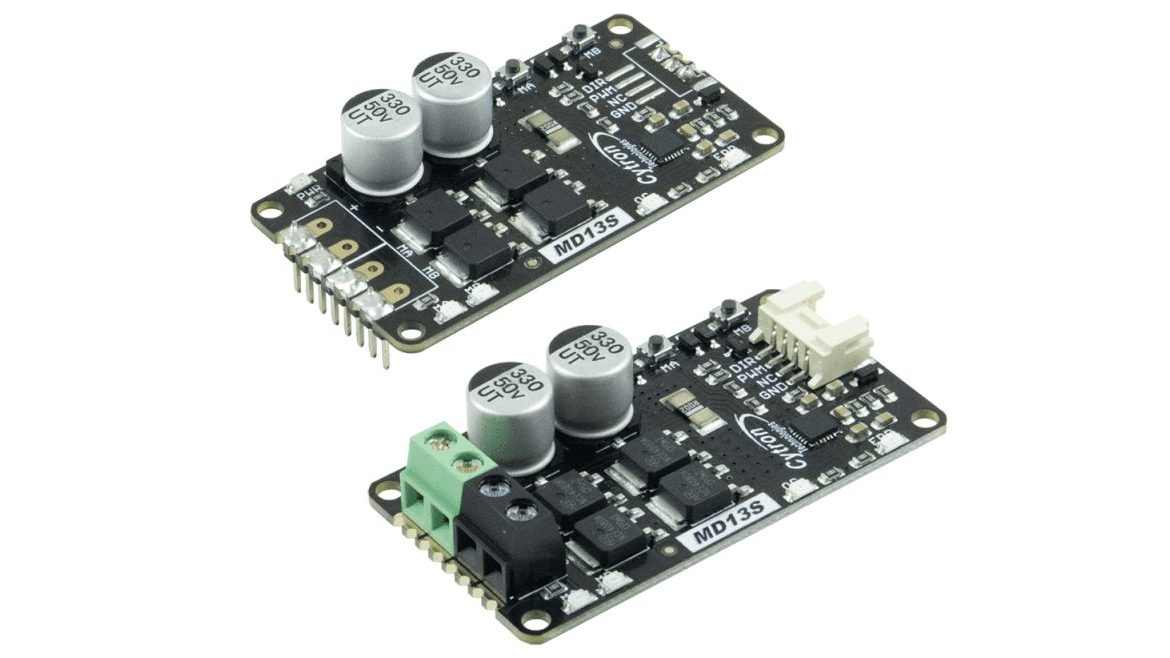

MD13S – Compact 6V-30V 13A DC Motor Driver

✅ Voltage Range: 6-30V
✅ Current Rating: 13A (30A peak)
✅ PWM Control: Up to 20kHz
✅ Protection: Overcurrent & thermal shutdown
🔹 Best for: Small to medium robots, DIY projects requiring high current in a small footprint.
🔹 Product Link

MDD10A – Dual-Channel 5V-30V 10A DC Motor Driver

✅ Voltage Range: 5-30V
✅ Current Rating: 10A per channel (20A peak)
✅ Features: Bidirectional control, built-in protection
🔹 Best for: Dual-motor applications like tracked robots and wheeled platforms.
🔹 Product Link

MD10C – Enhanced 5V-30V 10A DC Motor Driver

✅ Voltage Range: 5-30V
✅ Current Rating: 10A (20A peak)
✅ Control: PWM & direction input
🔹 Best for: High-power motor control with simple interfacing.
🔹 Product Link

MD30C – High-Power 5V-30V 30A DC Motor Driver

✅ Voltage Range: 5-30V
✅ Current Rating: 30A (70A peak)
✅ Heatsink: Integrated for better heat dissipation
🔹 Best for: Heavy-duty robots, industrial automation.
🔹 Product Link

MDDS60 – Smart Drive 7V-45V 60A DC Motor Driver

✅ Voltage Range: 7-45V
✅ Current Rating: 60A (120A peak)
✅ Smart Features: Current sensing, fault detection
🔹 Best for: High-performance robotics, electric vehicles.
🔹 Product Link

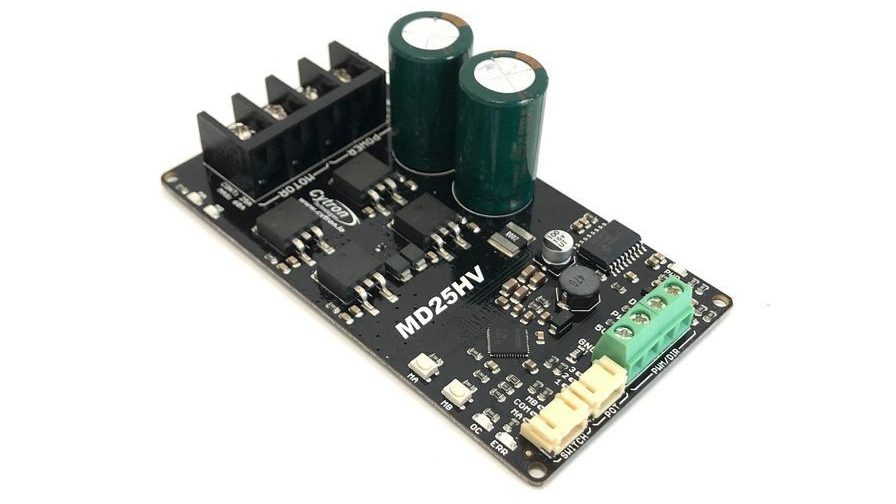

MD25HV – High-Voltage 7V-58V 25A DC Motor Driver

✅ Voltage Range: 7-58V
✅ Current Rating: 25A (60A peak)
✅ Robust Design: For high-voltage applications
🔹 Best for: Industrial machines, large-scale automation.
🔹 Product Link

MDD3A – Dual-Channel 4V-16V 3A DC Motor Driver

✅ Voltage Range: 4-16V
✅ Current Rating: 3A per channel (5A peak)
✅ Compact Size: Ideal for small projects
🔹 Best for: Lightweight robotics, educational kits.
🔹 Product Link

SHIELD-MD10 – Arduino Shield for 7V-30V 10A Motors

✅ Compatibility: Arduino UNO/R3
✅ Current Rating: 10A (20A peak)
✅ Plug-and-Play: No wiring hassle
🔹 Best for: Arduino-based motor control projects.
🔹 Product Link

MD10-POT – 7V-30V 10A Driver with Potentiometer Control

✅ Voltage Range: 7V-30V
✅ Current Rating: 10A (20A peak)
✅ Manual Control: Built-in potentiometer for speed adjustment
🔹 Best for: Testing & prototyping without a microcontroller.
🔹 Product Link

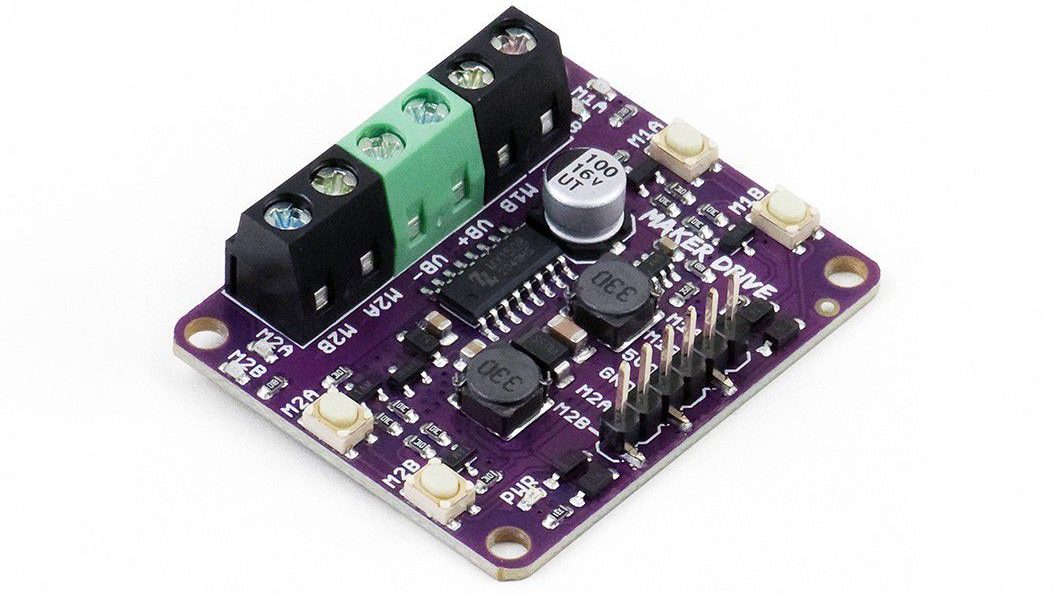

MAKER-DRIVE – Compact 2.5V-9.5V 1A Dual Motor Driver

✅ Voltage Range: 2.5-9.5V
✅ Current Rating: 1A per channel (1.5A peak)
✅ Small Form Factor: Breadboard-friendly
🔹 Best for: Maker projects, small robots.
🔹 Product Link

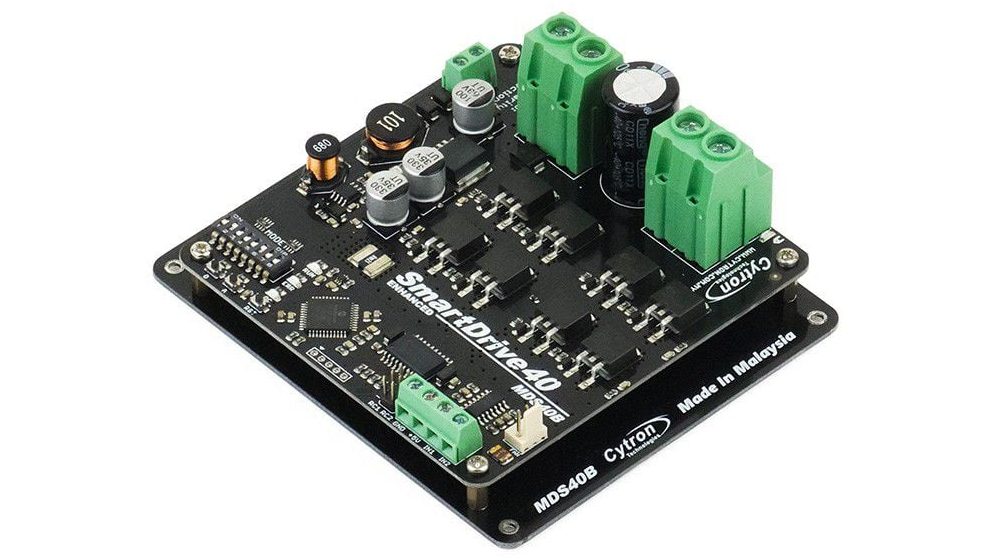

MDS40B – 10V-45V 40A Smart DC Motor Driver

✅ Voltage Range: 10-45V
✅ Current Rating: 40A (80A peak)
✅ Smart Features: Current monitoring, serial control
🔹 Best for: Advanced robotics with feedback control.
🔹 Product Link

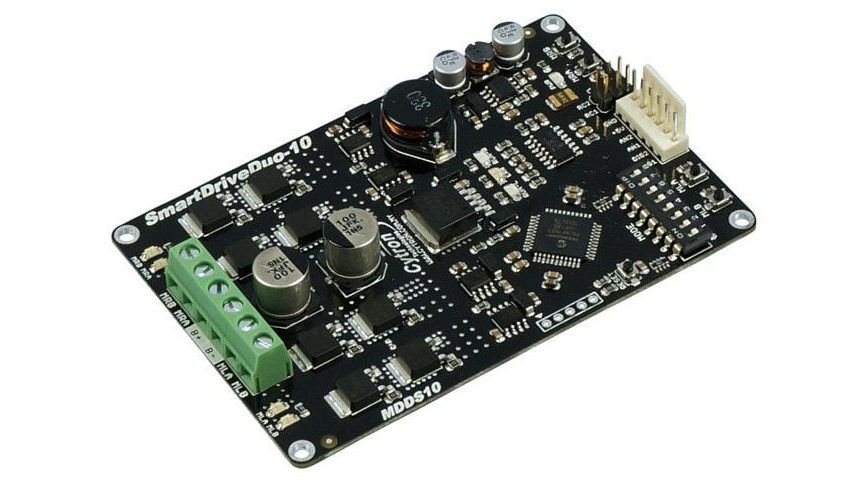

MDDS10 – Smart 7V-35V 10A DC Motor Driver

✅ Voltage Range: 7-35V
✅ Current Rating: 10A (30A peak)
✅ Serial Interface: UART/I²C for smart control
🔹 Best for: IoT and smart automation projects.
🔹 Product Link

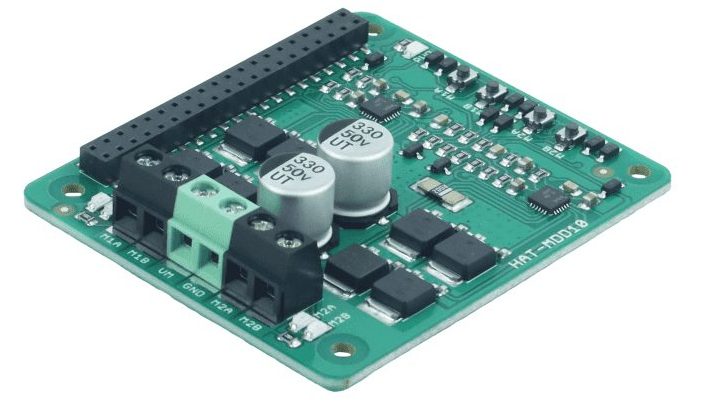

HAT-MDD10 – Raspberry Pi HAT for Dual 10A Motors

✅ Compatibility: Raspberry Pi
✅ Current Rating: 10A per channel (30A peak)
✅ Python Library: Easy integration
🔹 Best for: Raspberry Pi-powered robots.
🔹 Product Link

FD04A – 7V-15V 1.5A 4 Channel DC Motor Driver

✅ Voltage Range: 7-15V
✅ Current Rating: 1.5A (2.5A peak)
✅ Low Cost: Budget-friendly option
🔹 Best for: Simple motor control tasks.
🔹 Product Link

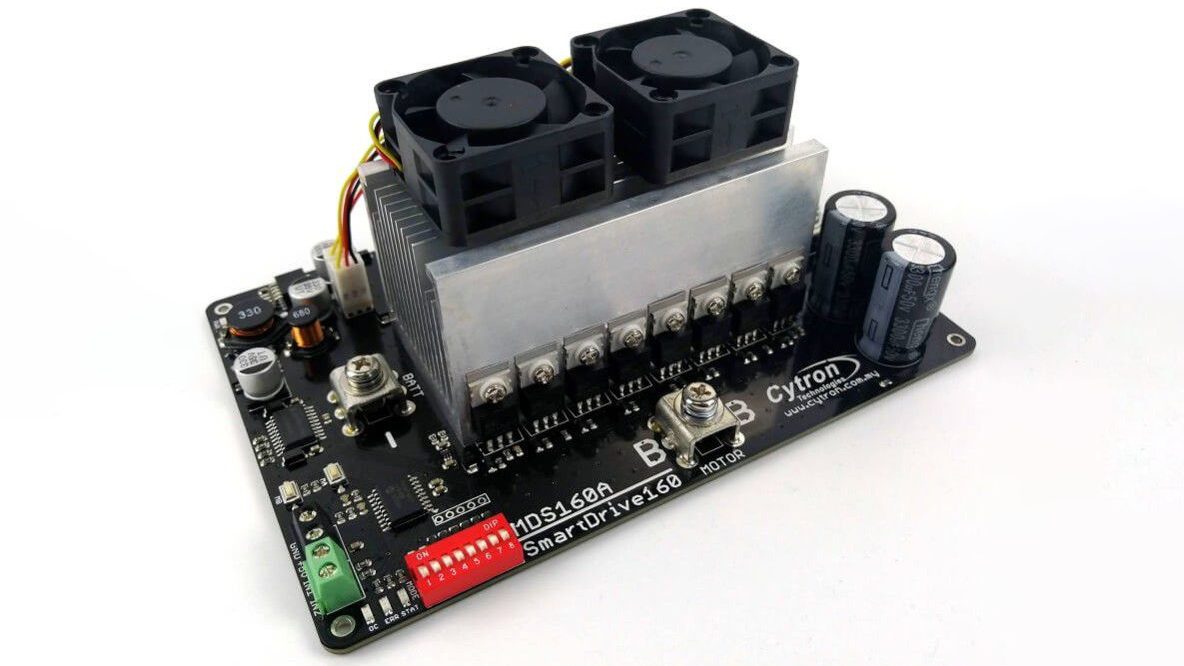

MDS160A – Ultra-High-Power 8V-28V 160A DC Motor Driver

✅ Voltage Range: 8-28V
✅ Current Rating: 160A (320A peak)
✅ Industrial-Grade: For extreme loads
🔹 Best for: Heavy machinery, electric vehicles.
🔹 Product Link

Comparison Table: Cytron Motor Drivers

Which Cytron Motor Driver is Right for You?

• For small robots & DIY projects: MD13S, MDD3A, MAKER-DRIVE

• For Arduino/Raspberry Pi: SHIELD-MD10, HAT-MDD10

• For high-power applications: MD30C, MDDS60, MDS160A

• For smart control & feedback: MDS40B, MDDS10

Cytron’s motor drivers offer reliability, flexibility, and performance for any project. Whether you need a compact driver for a small robot or an industrial-grade solution, Cytron has you covered!

🔗 Explore Cytron’s motor drivers today and power up your next project!
