Introduction

WAGO connectors have become a popular choice for professionals seeking secure, versatile, and easy-to-install solutions. In the world of electrical and industrial automation, reliable and efficient connections are crucial. Whether you’re an electrician, engineer, or DIY enthusiast, understanding WAGO connectors can simplify your wiring projects.

In this blog, we’ll explore:

• What WAGO connectors are

• Their key benefits

• Different types of WAGO connectors

• WAGO Connector Selection Guide

• Common applications

• Best practices for installation

What Are WAGO Connectors?

WAGO connectors are innovative electrical connection devices designed to replace traditional wire nuts, terminal blocks, and soldering. Manufactured by WAGO Group, a German company known for high-quality electrical components, these connectors use spring pressure technology or cage clamps to ensure a secure and maintenance-free connection.

Key Features:

✔ Tool-free installation (for many models)
✔ Reusable and maintenance-free
✔ Vibration-resistant
✔ Suitable for solid, stranded, and fine-stranded wires
✔ Compact and space-saving design

Advantages of WAGO Connectors

1. Quick and Easy Installation

Unlike traditional screw terminals or wire nuts, many WAGO connectors allow for tool-free installation. Simply insert the wire, and the spring mechanism holds it securely.

2. Reliable and Vibration-Resistant

The spring-clamp technology ensures a gas-tight connection, preventing loosening due to vibrations—ideal for industrial and automotive applications.

3. Versatile Wire Compatibility

WAGO connectors work with solid, stranded, and fine-stranded wires, making them adaptable for various electrical setups.

4. Space-Efficient Design

Their compact form factor allows for high-density wiring in control panels, junction boxes, and PCB applications.

5. Reusable & Maintenance-Free

Need to modify a connection? Many WAGO connectors can be opened and reused without damaging the wires.

Types of WAGO Connectors

WAGO offers a wide range of connectors for different needs:

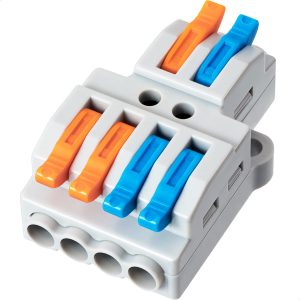

1. Lever-Nut® (Push-Wire Connectors)

• Best for: Quick installations without tools

• Models: 221, 222, 224 series

• Applications: Lighting, residential wiring, control panels

2. Cage Clamp® Connectors

• Best for: Industrial and high-current applications

• Models: 773, 273 series

• Applications: DIN rail terminals, power distribution

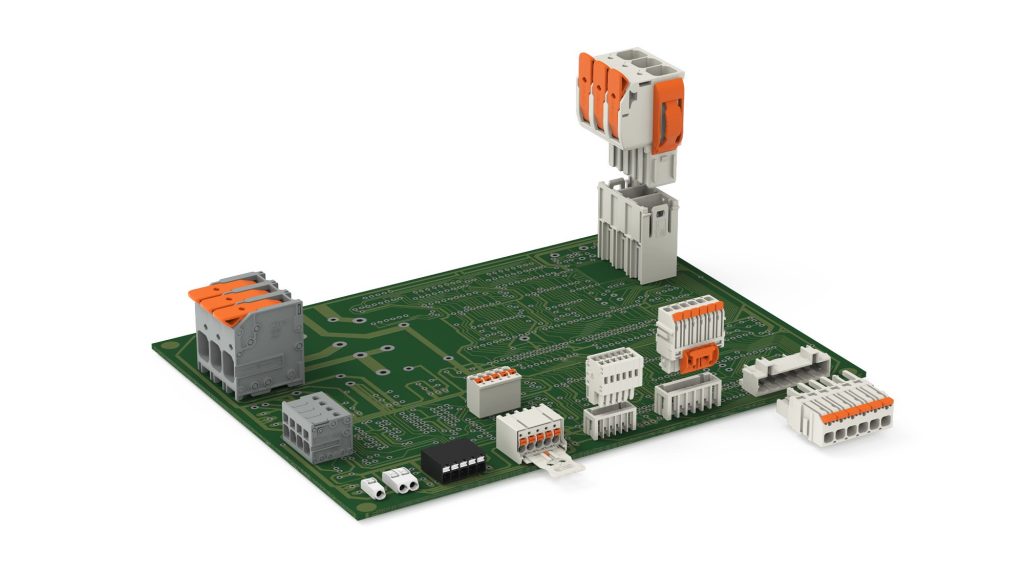

3. PCB Terminal Blocks

• Best for: Electronics and circuit board connections

• Models: 2060, 280 series

• Applications: Automation, sensors, PCBs

4. Splicing Connectors

• Best for: In-line wire splicing

• Models: 2273, 2216 series

• Applications: Automotive, machinery, and field wiring

WAGO Connector Selection Guide

How to Use This Table:

1. Identify your wire size (e.g., 1.5mm² for home wiring).

2. Check current/voltage needs (e.g., 24A for industrial use → 222/773 Series).

3. Choose type (Push-Wire for quick installs, DIN Rail for panels).

Common Applications

✅ Industrial Control Panels – Secure connections in PLCs and motor controls
✅ Building Wiring – Lighting, switches, and junction boxes
✅ Renewable Energy – Solar panel and wind turbine connections
✅ Automotive & Transportation – Vibration-resistant wiring
✅ Home Automation & Smart Devices – Reliable low-voltage connections

Installation Best Practices

1. Strip Wires Correctly – Ensure proper strip length (usually 9-11mm).

2. Use the Right Connector – Match the connector to wire size and current rating.

3. Test the Connection – Gently tug the wire to confirm a secure fit.

4. Avoid Overloading – Do not exceed the maximum current/voltage rating.

5. Follow Local Codes – Ensure compliance with electrical standards (IEC, NEC, etc.).

Conclusion

WAGO connectors provide a fast, reliable, and versatile alternative to traditional wiring methods. Whether you’re working on industrial machinery, home wiring, or electronic projects, these connectors offer efficiency and durability while reducing installation time.

Have you used WAGO connectors before? Share your experience in the comments!
