Surface Mount Devices (SMD): Advantages, Disadvantages, and Common Packages

SMD

Content:

Introduction

SMDs Surface Mount Devices are electronic components designed to be mounted directly onto the surface of printed circuit boards (PCBs). They have largely replaced through-hole components in modern electronics due to their compact size, efficiency, and suitability for automated manufacturing.

In this blog, we’ll explore the advantages and disadvantages of SMD components and discuss the most common SMD packages used in PCB design.



Advantages of SMD Components

1. Smaller Size & Higher Component Density

  • SMDs are significantly smaller than through-hole components.

  • Allows for miniaturization of PCBs (e.g., smartphones, wearables).

  • More components can fit in the same space, improving functionality.

2. Better Performance at High Frequencies

  • Shorter leads reduce parasitic inductance and capacitance.

  • Ideal for high-frequency circuits (RF, microwave applications).

3. Cost-Effective Manufacturing

  • Automated assembly (pick-and-place machines) reduces labor costs.

  • No need for drilling holes, simplifying PCB fabrication.

4. Improved Reliability & Durability

  • Fewer mechanical connections mean less risk of solder joint failure.

  • Better resistance to vibration and shock (important in automotive & aerospace).

5. Faster Production & Soldering

  • Reflow soldering allows simultaneous soldering of multiple components.

  • Faster assembly compared to manual through-hole soldering.



Disadvantages of SMD Components

1. Difficult Manual Soldering & Rework

  • Tiny sizes make hand-soldering challenging without specialized tools.

  • Requires microscope, fine-tip soldering iron, and hot air rework station.

2. Limited Power Handling

  • Most SMDs are designed for low to medium power applications.

  • High-power circuits may still require through-hole components.

3. Thermal Stress Issues

  • Small size leads to heat concentration, requiring proper thermal management.

  • May need thermal vias or heatsinks for high-power SMDs.

4. Higher Initial Setup Cost

  • Requires expensive pick-and-place machines for mass production.

  • Stencil printing for solder paste adds to manufacturing complexity.

5. Harder to Prototype

  • Breadboarding is difficult—requires custom PCBs for testing.

  • Debugging and replacing components is more complex.



Common SMD Packages

SMD components come in standardized sizes and shapes. Here are the most widely used packages:

1. Passive Components (Resistors, Capacitors, Inductors)

  • 0201, 0402, 0603, 0805, 1206 (Metric: mm, e.g., 0603 = 0.06″ x 0.03″)

    • Smaller sizes (0201, 0402) used in compact devices like smartphones.

    • Larger sizes (0805, 1206) for general-purpose circuits.

2. Integrated Circuits (ICs)

  • Small Outline Transistor (SOT) – Small 3-6 pin packages (e.g., SOT-23).

  • Quad Flat Package (QFP) – High pin count ICs with gull-wing leads.

  • Ball Grid Array (BGA) – High-density packaging with solder balls underneath.

  • Dual Flat No-Lead (DFN/QFN) – Compact, thermal pad for heat dissipation.

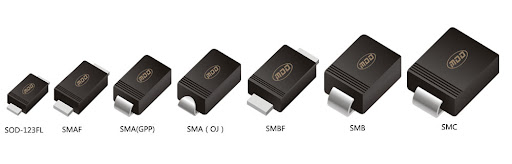

3. Transistors & Diodes

  • SOD (Small Outline Diode) – For diodes (e.g., SOD-123).

  • SOT (Small Outline Transistor) – For transistors (e.g., SOT-223 for power MOSFETs).

4. Connectors & Special Components

  • Land Grid Array (LGA) – Used in CPUs and modules.

  • Wafer-Level Chip Scale Package (WLCSP) – Extremely small, used in advanced ICs.



Comparison: SMD vs. Through-Hole Components

Feature SMD Components Through-Hole Components
Size Very small Larger
Assembly Method Automated (Pick & Place) Manual or wave soldering
Power Handling Low to medium High power applications
High-Frequency Performance Excellent Limited due to lead inductance
Repairability Difficult Easier to replace
Cost (Mass Production) Lower Higher (more manual work)



Most Common Applications of SMD Components

Surface Mount Device (SMD) components have become the backbone of modern electronics due to their compact size, reliability, and compatibility with automated manufacturing. Here’s a breakdown of their most important applications across industries:

1. Consumer Electronics (Highest Volume Use)

  • Smartphones & Tablets

    • 0201/0402 resistors/capacitors for space-saving

    • QFN/BGA packages for processors and memory

    • RF components in 5G/WiFi/Bluetooth modules

  • Wearables (Smartwatches, Earbuds)

    • Ultra-small 01005 components

    • Flexible PCB designs with thin chip components

  • Laptops & TVs

    • Power management ICs in DFN packages

    • LED backlight drivers in SOT-23

2. Computing & Data Storage

  • Motherboards & GPUs

    • High-density BGA packages for CPUs/GPUs

    • 0603/0805 capacitors for decoupling

  • SSDs & Memory Modules

    • NAND flash in WLCSP (Wafer-Level Chip Scale)

    • DDR memory in fine-pitch QFN packages

3. Automotive Electronics

  • ECUs (Engine Control Units)

    • AEC-Q200 qualified SMD resistors/capacitors

    • High-reliability QFP packages for microcontrollers

  • ADAS & Infotainment

    • Radar sensors using RF SMD components

    • Automotive-grade 1206 capacitors for power filtering

4. Industrial & IoT Devices

  • Industrial Control Systems

    • Thick-film SMD resistors for harsh environments

    • Isolated DC-DC converters in SIP packages

  • IoT Sensors

    • Low-power SMD crystals for MCU clocks

    • Miniature MEMS sensors in LGA packages

5. Medical Electronics

  • Portable Medical Devices

    • 0402 capacitors in pacemakers/insulin pumps

    • Hermetically sealed SMD packages for implants

  • Diagnostic Equipment

    • High-precision SMD resistors in PCR machines

    • Medical-grade EMI filters in 0805 packages

6. Aerospace & Defense

  • Avionics Systems

    • Radiation-hardened SMD ICs

    • MIL-SPEC tantalum capacitors

  • Satellite Communications

    • RF amplifiers in ceramic QFN packages

    • Hi-Rel SMD oscillators for space applications

7. LED Lighting & Power Electronics

  • LED Drivers

    • High-current SMD MOSFETs in DPAK

    • 1206/1210 resistors for current limiting

  • Power Supplies

    • Synchronous buck converters in SOIC-8

    • SMD inductors for DC-DC conversion

Why SMD Dominates These Applications?

Space Efficiency – Enables miniaturization
Better High-Frequency Performance – Shorter traces reduce EMI
Automation Friendly – Essential for mass production
Improved Thermal Performance – Many packages have thermal pads
Cost-Effective at Scale – Lower assembly costs vs through-hole

The Only Major Exceptions Where Through-Hole is Still Used:

  • High-power applications (TO-220/TO-247 packages)

  • Prototyping/breadboarding

  • Extreme environment electronics (military/aerospace in some cases)

Future Trend: Components continue shrinking (01005 → 008004 sizes) while power handling improves with new packaging like embedded die technologies.

Conclusion

SMD components dominate modern electronics due to their compact size, efficiency, and compatibility with automated manufacturing. However, they also come with challenges like difficult manual soldering and thermal management issues.

Choosing between SMD and through-hole depends on the application:

  • SMD is best for miniaturized, high-frequency, and mass-produced devices.

  • Through-hole is better for high-power, prototyping, and rugged applications.

Understanding SMD packages helps engineers select the right components for PCB design.

Have you worked with SMD components? What challenges did you face? Share your thoughts in the comments!
