Features:
- Alloy casing, shielded with half Copper plating (copper core pin welding)
- Characteristic impedance: 75Ω
- Needle core: Copper Plated
- Shielding ring: Zinc Alloy
- Frequency range: 0~2GHz
- Wiring card: alloy
- Contact resistance:inner conductor ≤2.0mΩ; external resistance ≤0.2mΩ
- Outer layer: alloy nickel plating
- Insulation resistance: ≥4000MΩ
- Medium withstand voltage: 1200V
- Voltage standing wave ratio: ≤1. 3
- Connector durability: 500 product materials and coating
- Installation category: welding free
- Can connect an RG59 / RG-6 coaxial cable to a BNC connection port

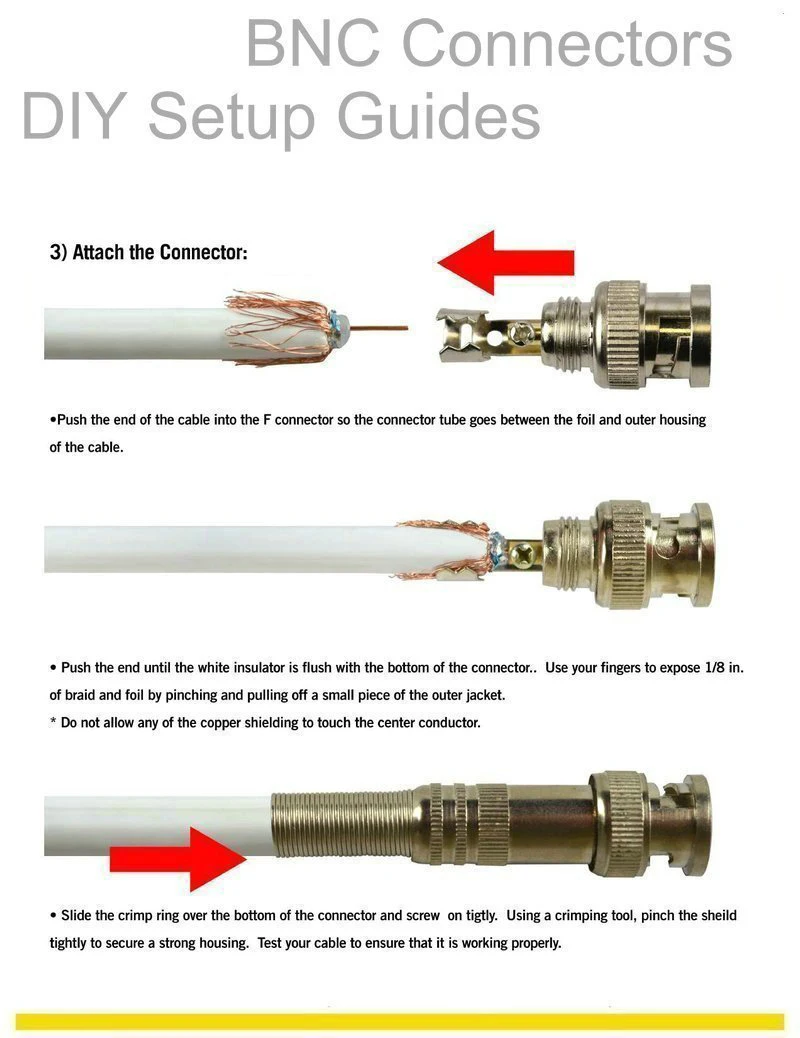

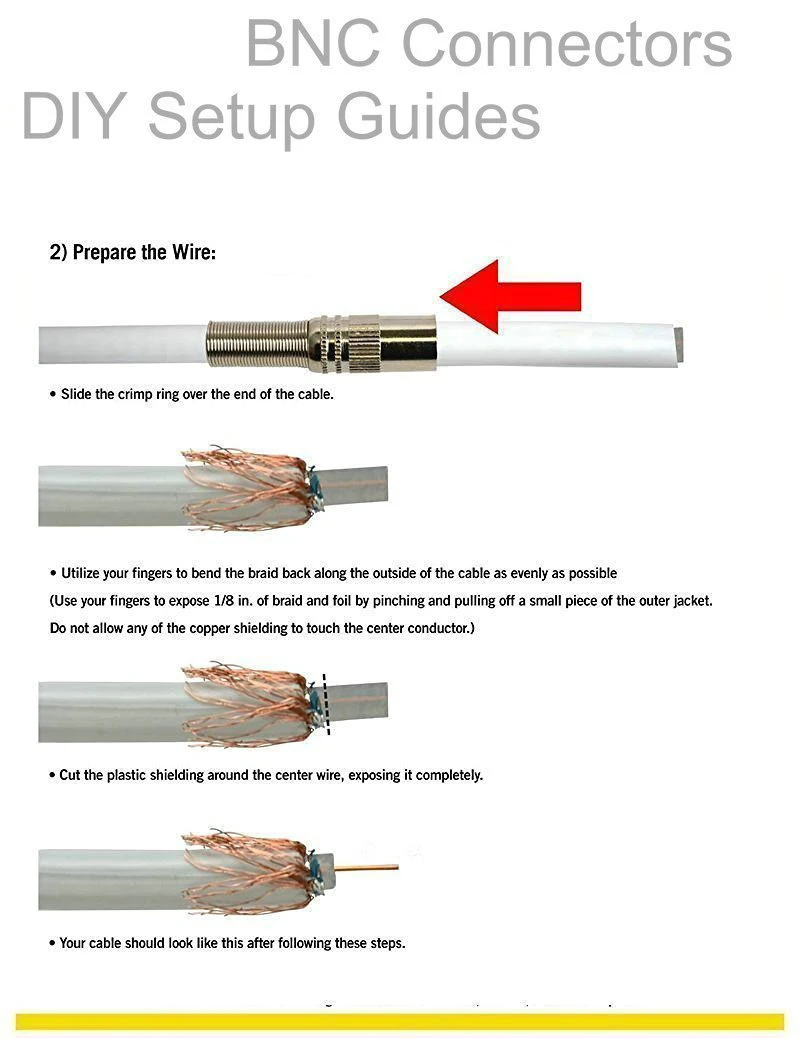

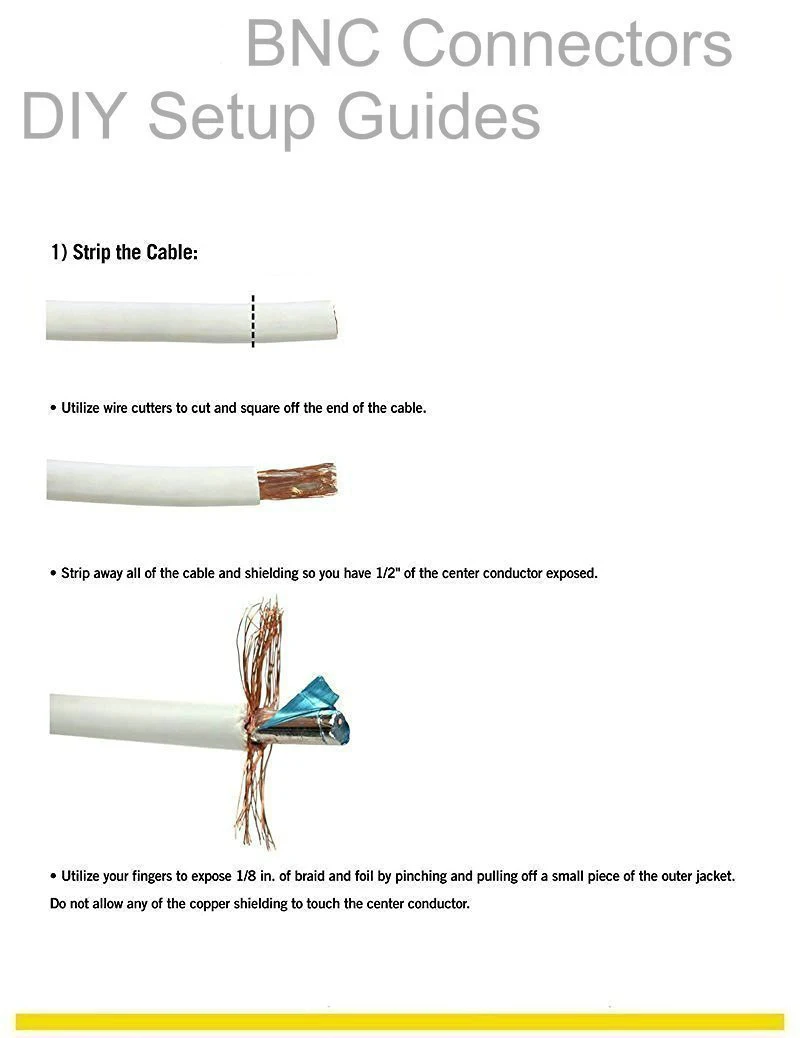

Setup Guide:
Package Include:
1 x Solder Less Twist Spring BNC Jack
