Buck vs Boost Converters: How to Choose the Right DC-DC Converter?

Contents List

1. Introduction to DC-DC Converters

DC-DC converters are essential components in modern electronic systems because different devices often require different operating voltages. A battery may provide a voltage that changes as it discharges, while a microcontroller, sensor, display, or motor driver may require a specific voltage to operate correctly.

A DC-DC converter solves this problem by converting one direct-current (DC) voltage into another suitable DC voltage. Depending on its design, it can reduce the input voltage, increase it, or regulate the output when the input voltage moves above and below the required level.

For example, a project powered by a 12 V battery may need 5 V for an Arduino-compatible board or 3.3 V for a sensor. A step-down converter can provide the required lower voltage. Conversely, a battery-powered circuit that needs a voltage higher than the battery can provide may use a step-up converter.

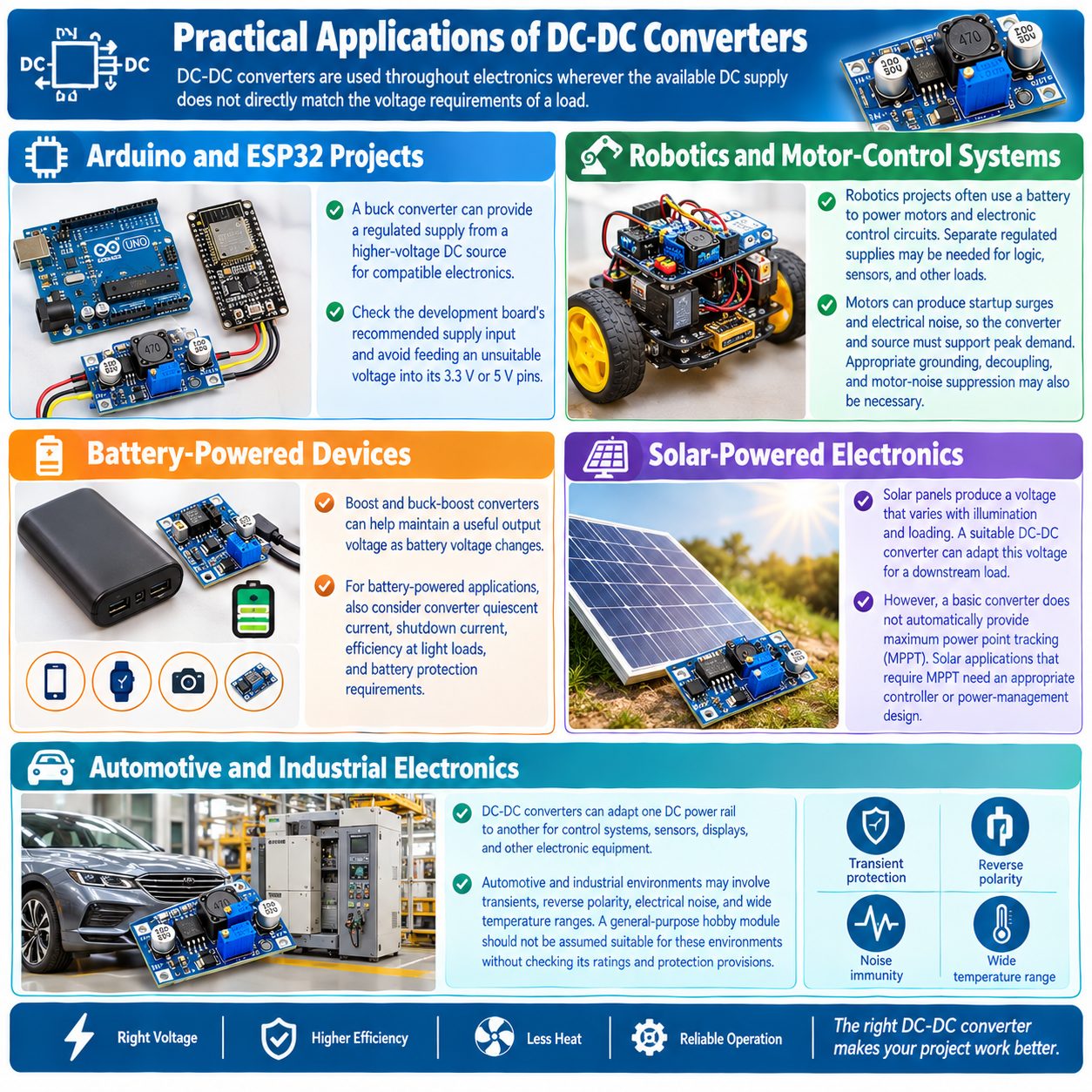

DC-DC converters are widely used in Arduino and ESP32 projects, robotics, portable electronics, battery-powered devices, automotive electronics, and industrial control systems.

This guide explains how DC-DC converters work, compares their main types, examines common converter modules, and provides practical guidance for selecting the right module for an electronics project.

2. What Is a DC-DC Converter?

• A DC-DC converter is an electronic circuit that changes the voltage level of a DC power source to meet the requirements of an electrical load.
• The input may come from a battery, a DC power supply, a solar panel, or another regulated power system.
• The converter then delivers an output voltage suitable for the connected device, provided that the input, output, current, and power requirements are within its operating limits.

A DC-DC converter typically has three main connections or functional sections:

• Input: Receives DC power from the source.
• Conversion circuit: Processes the input voltage using a suitable conversion topology.
• Output: Supplies the converted DC voltage to the load.

Many modules also include adjustment potentiometers, enable pins, indicator LEDs, or display screens, depending on their design.

Why Are DC-DC Converters Needed?

Electronic components do not all operate at the same voltage.

For example:

• A system may contain a 12 V battery, a 5 V sensor module, and a 3.3 V microcontroller.
• Connecting a device directly to an unsuitable voltage can cause malfunction or permanent damage.
• A correctly selected converter helps provide the voltage that the device requires.

Common reasons for using a DC-DC converter include:

• Converting a higher DC voltage to a lower voltage.
• Increasing a low DC voltage to a higher voltage.
• Maintaining a stable output as the input voltage changes within the converter’s operating range.
• Improving power-conversion efficiency compared with a linear regulator in many applications.

Adapting a shared power source to multiple voltage requirements.

DC-DC Converter vs. Voltage Regulator

• The terms DC-DC converter and voltage regulator are closely related, but they do not always mean exactly the same thing.
• A DC-DC converter describes a circuit that converts DC power from one voltage level to another.
• A voltage regulator describes a circuit or function that maintains a controlled output voltage despite changes in input voltage or load.
• Many switching DC-DC converters perform both functions: they convert the voltage and regulate the output.

3. How Does a DC-DC Converter Work?

The working principle depends on the converter topology. Most commonly used adjustable DC-DC modules are switching converters, which control the transfer of energy using electronic switches that turn on and off rapidly.

Unlike a linear regulator, which regulates voltage by dissipating excess energy as heat, a switching converter transfers energy through components such as inductors, capacitors, transistors, and sometimes diodes.

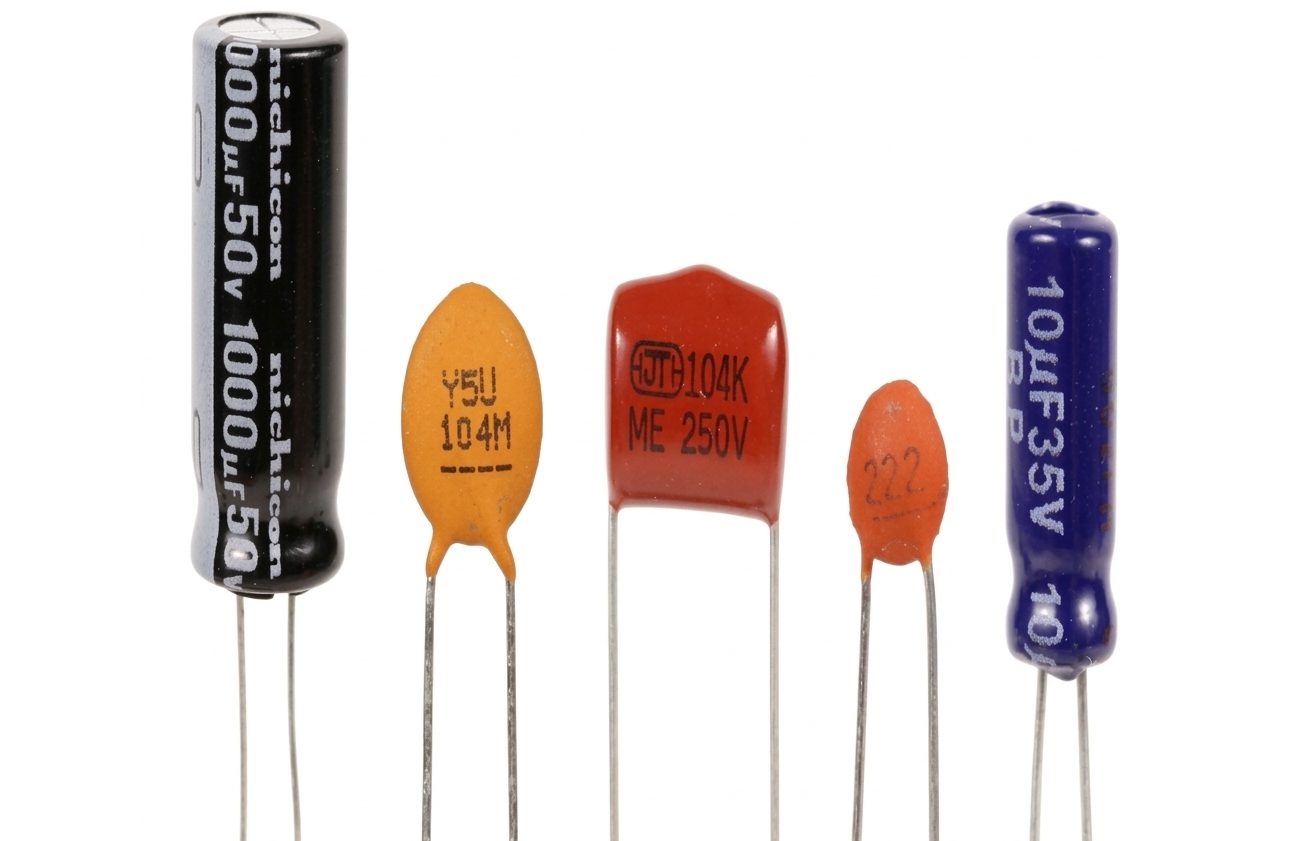

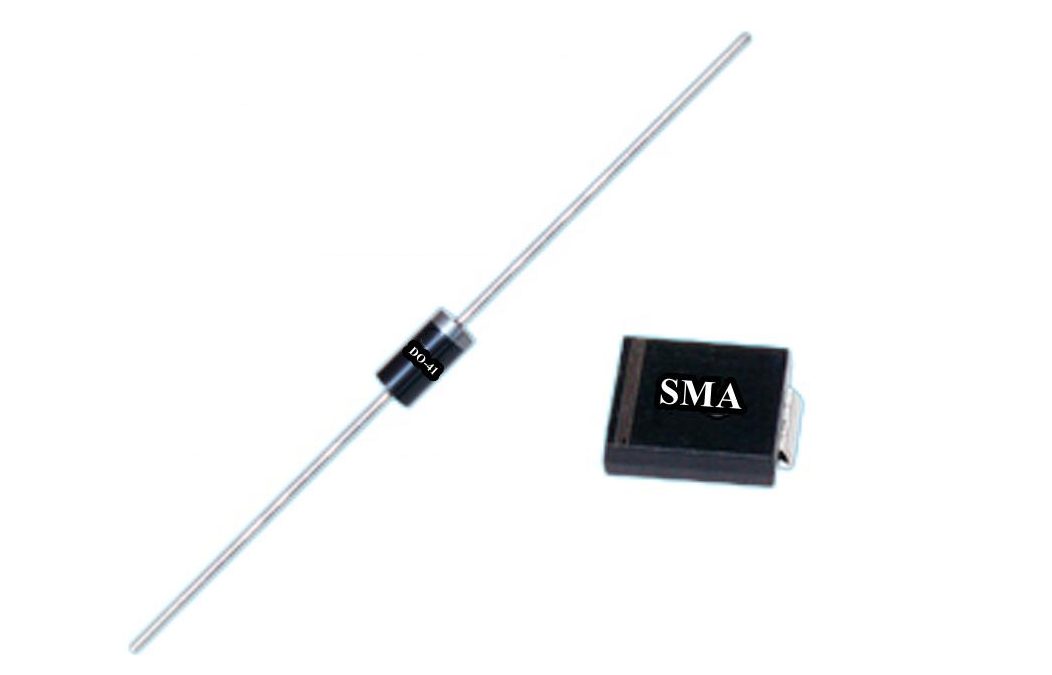

Main Components of a Switching DC-DC Converter

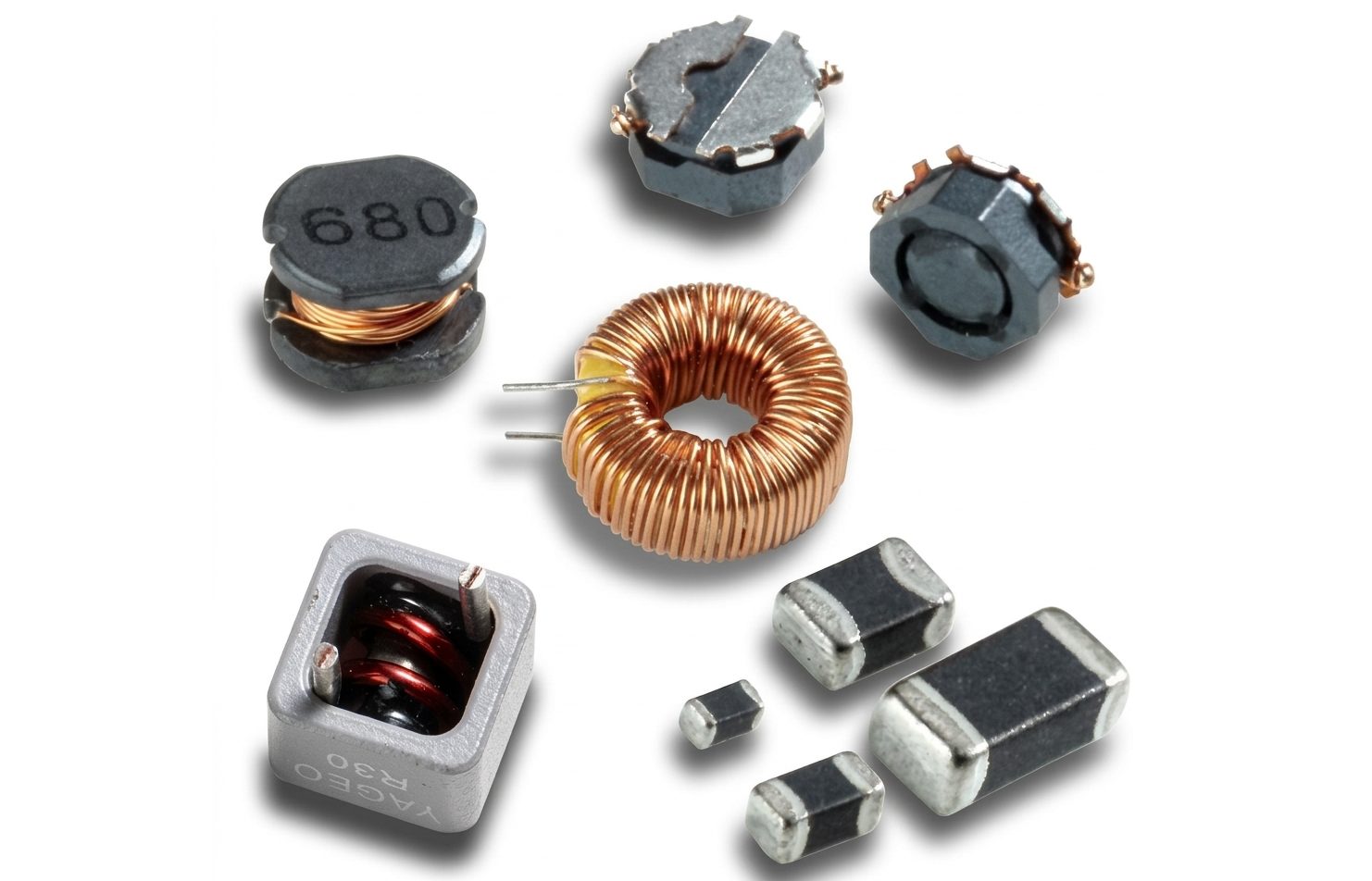

Inductor

Stores energy in a magnetic field and releases it during the switching cycle. It is a key component in buck, boost, and many buck-boost converters.

Switching transistor

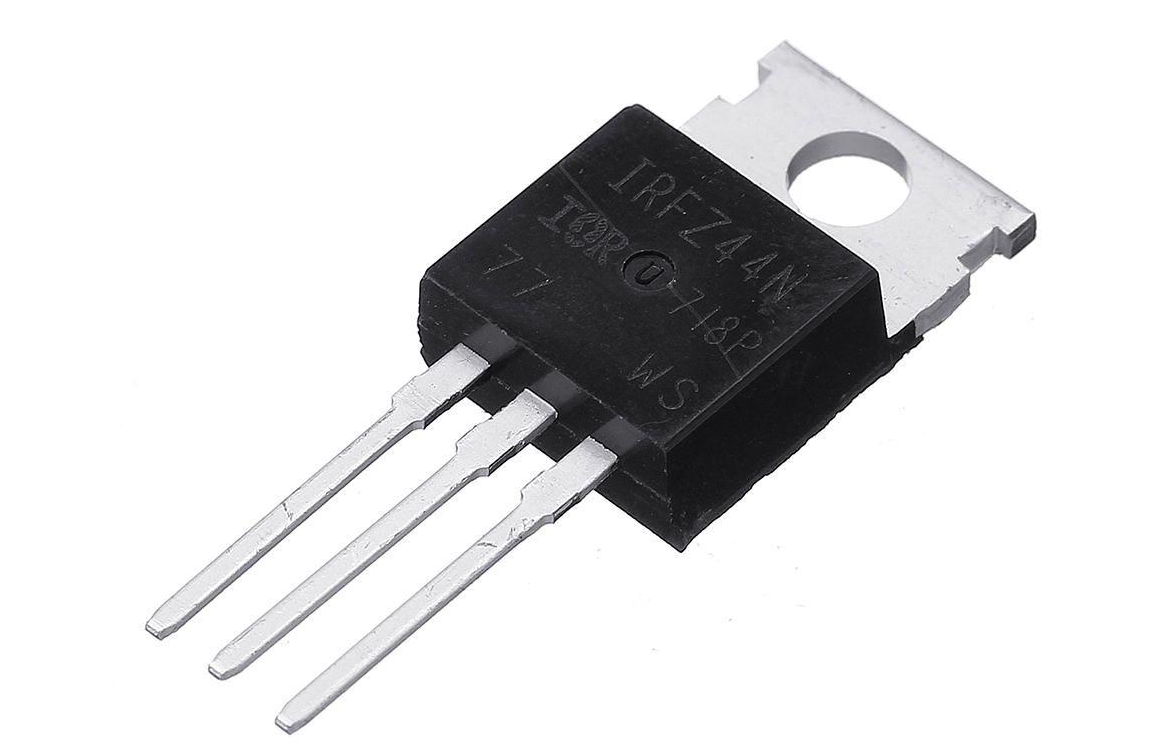

Usually a MOSFET or another transistor that controls the current path by switching on and off at high speed.

Understanding Switching Operation

In a typical switching converter, the transistor repeatedly switches between on and off states. During these states, energy is stored in and transferred through the inductor and capacitors.

A feedback circuit compares the output with a reference voltage and adjusts the switching operation to compensate for changes in the input or load.

For example, if the load begins drawing more current and the output voltage starts to decrease, the controller can adjust its switching behavior to deliver more energy, provided the converter remains within its limits.

The precise current paths and switching sequence differ between buck, boost, and buck-boost topologies. Analog Devices and Monolithic Power Systems provide useful technical explanations of these operating principles.

What Is PWM?

Pulse-width modulation (PWM) is a common technique used to control the switching operation of a converter.

The duty cycle is the proportion of each switching period during which the controlled switch is on.

For an ideal buck converter operating in continuous conduction mode, under simplified steady-state conditions:

Where:

For example:

• An ideal buck converter supplied with 12 V and operating at a duty cycle of 0.417 would produce approximately 5 V.
• This is an idealized relationship. A real converter has losses, and its controller must account for factors such as load current, component characteristics, and operating limits.

4. Main Types of DC-DC Converters

DC-DC converters are classified according to how they change the relationship between the input and output voltages.

The three main non-isolated switching topologies commonly encountered in hobby electronics are buck, boost, and buck-boost converters.

Buck converter — Step-down

Reduces a higher DC input voltage to a lower regulated output voltage. Common examples include converting 12V to 5V or 24V to 12V.

Boost converter — Step-up

Increases a lower DC input voltage to a higher output voltage. It is useful when the power source cannot directly provide the required voltage.

Other DC-DC converter topologies include flyback, forward, SEPIC, and Ćuk converters. Some use transformers or other arrangements to provide galvanic isolation or different voltage-conversion characteristics.

For most basic Arduino, ESP32, and robotics projects, understanding buck, boost, and buck-boost converters is a good starting point.

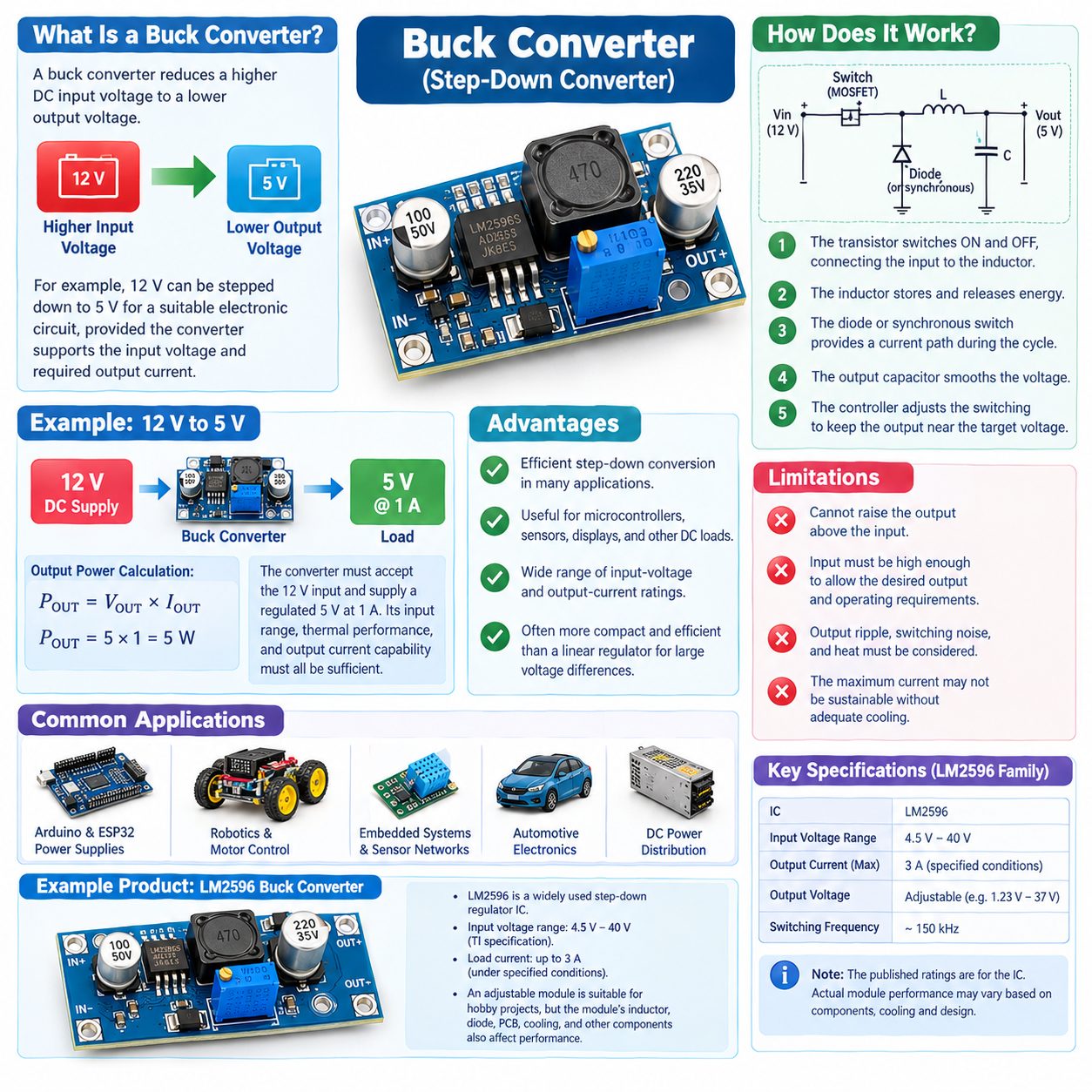

5. Buck Converter (Step-Down Converter)

A buck converter reduces a higher DC input voltage to a lower output voltage. It is commonly used when the power source provides more voltage than the load requires.

For example:

A 12 V DC supply can be stepped down to 5 V for a suitable electronic circuit, provided the selected converter supports the input voltage and required output current.

How Does a Buck Converter Work?

During the switching cycle, the controlled transistor connects and disconnects the input from the inductor circuit. The inductor stores and releases energy, while the diode or synchronous switch provides a current path during the appropriate part of the cycle. The output capacitor helps smooth the resulting voltage.

The controller adjusts switching operation to keep the output near its target voltage.

Example: Converting 12 V to 5 V

Suppose an electronics project has a 12 V supply and requires 5 V at 1 A.

The output power is:

• Pout = Vout× Iout
• Pout = 5 × 1 = 5 W

The buck converter must accept the 12 V input and supply a regulated 5 V output at 1 A. Its input-voltage range, thermal performance, and output-current capability must all be sufficient for the application.

Advantages of Buck Converters

• Efficient step-down conversion in many applications.
• Useful for powering microcontrollers, sensors, displays, and other DC loads.
• Available in a wide range of input-voltage and output-current ratings.
• Often more compact and efficient than dissipating a large voltage difference through a linear regulator.

Limitations of Buck Converters

• A standard buck converter cannot raise the output above the input.
• The input must be high enough to accommodate the desired output and the converter’s operating requirements.
• Output ripple, switching noise, and heat still need to be considered.
• The advertised maximum current may not be sustainable without adequate cooling.

Common Applications

• Buck converters are commonly used in:
• Arduino and ESP32 power supplies.
• Robotics and motor-control electronics.
• Embedded systems and sensor networks.
• Automotive accessory electronics.
• DC power distribution systems.

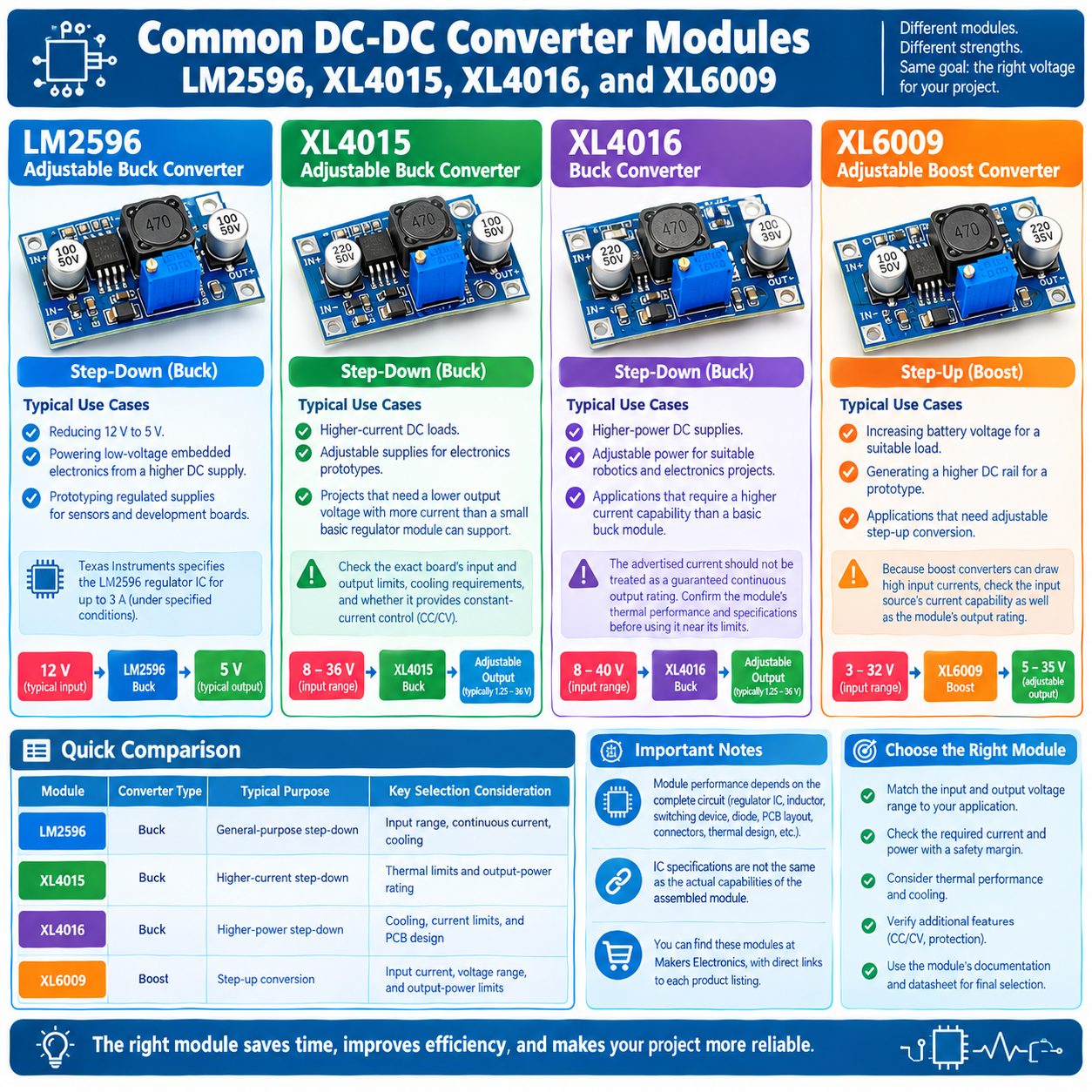

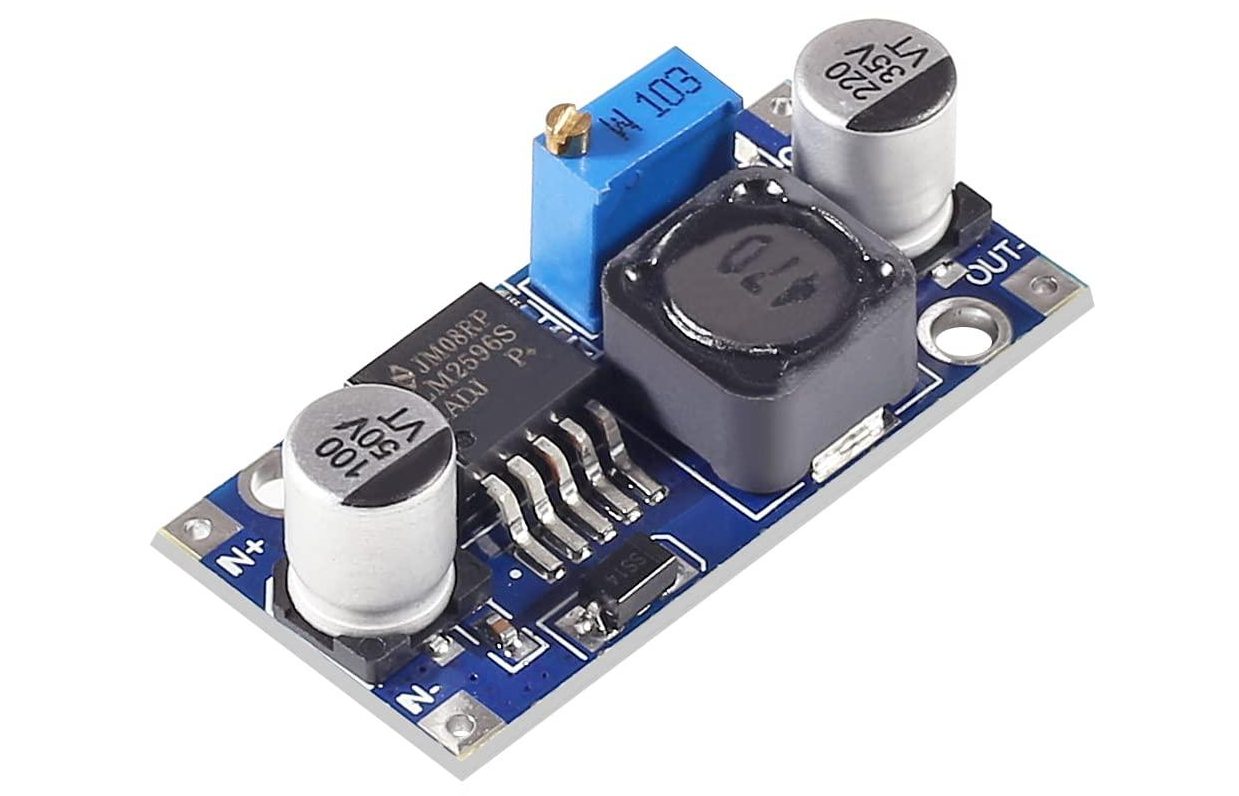

Example Product: LM2596 Buck Converter

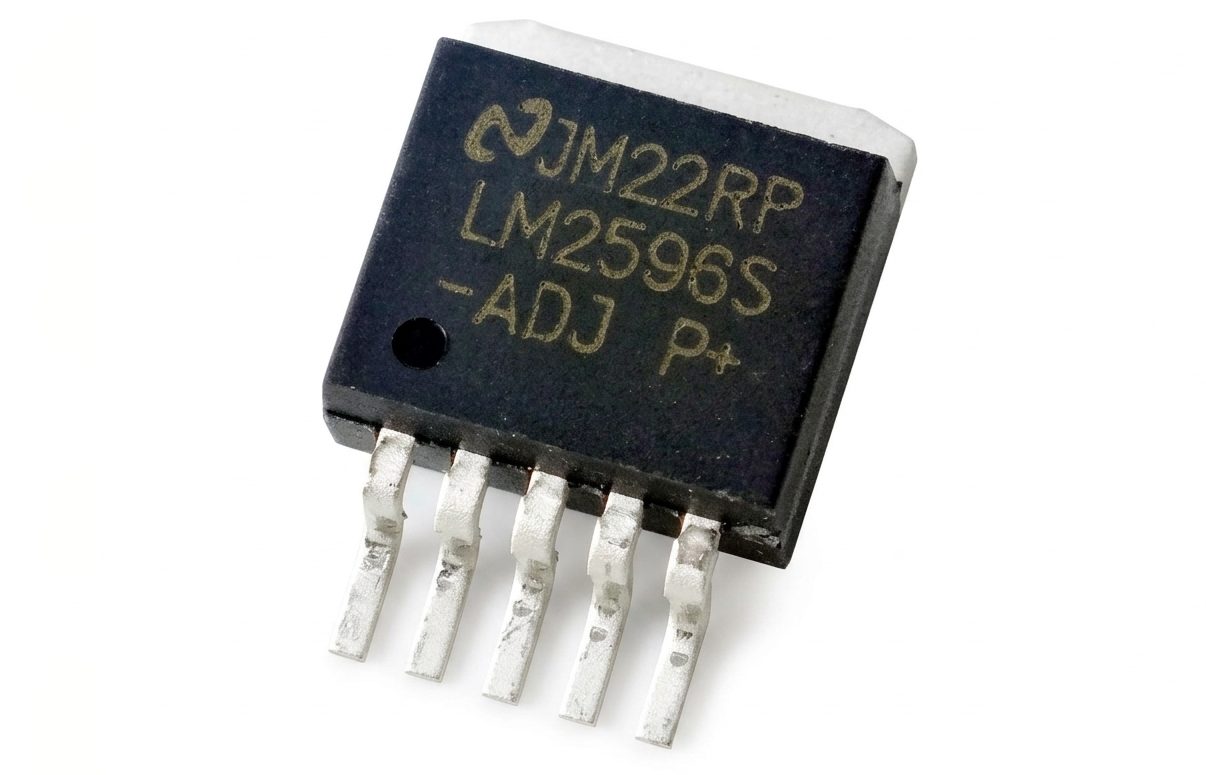

The LM2596 is a widely used step-down regulator IC. Texas Instruments specifies the LM2596 family for input voltages from 4.5 V to 40 V and load currents up to 3 A under specified operating conditions.

An adjustable LM2596 module can be a practical choice for hobby projects requiring a lower DC voltage. However, the IC’s published ratings should not be treated as a guarantee that every module can deliver 3 A continuously. The module’s inductor, diode, PCB, cooling, and other components also affect performance.

6. Boost Converter (Step-Up Converter)

A boost converter increases a lower DC input voltage to a higher output voltage. It is useful when the power source voltage is lower than the voltage required by the load.

For example:

A boost converter may increase a 3.7 V nominal lithium-ion battery supply to 5 V for a suitable electronic load.

How Does a Boost Converter Work?

When the switching transistor turns on, current flows through the inductor and energy is stored in its magnetic field. When the transistor turns off, the inductor’s voltage changes and drives current through the output path, transferring energy to the load and output capacitor.

This process allows the output voltage to exceed the input voltage. The controller adjusts switching operation to regulate the output.

Example: Converting 3.7 V to 5 V

Suppose a battery-powered device requires 5 V at 500 mA.

The output power is:

Assuming a conversion efficiency of 85%, the approximate input power required is:

At an input voltage of 3.7 V, the approximate input current is:

This illustrates an important point: a boost converter can draw considerably more current from a low-voltage source than it delivers at its higher-voltage output. Actual current depends on efficiency, battery voltage, and load conditions.

Advantages of Boost Converters

• Increase a DC voltage without adding series-connected battery cells.
• Useful for battery-powered electronics.
• Can maintain a higher output voltage as the input changes within the specified range.
• Available in compact modules for prototyping and embedded systems.

Limitations of Boost Converters

• They cannot normally reduce the output below the input like a buck converter.
• Input current can be high when stepping up from a low voltage.
• Output-current capability depends on input voltage, conversion ratio, losses, and thermal conditions.
• Some boost topologies do not provide output isolation or a true input-to-output disconnect when disabled.

Common Applications

Boost converters are used in:

• Battery-powered sensors and portable devices.
• Low-voltage LED systems.
• Small embedded systems requiring a higher supply voltage.
• Certain solar-powered electronics.
• Electronic projects that need a regulated 5 V or other elevated DC supply.

Example Product: XL6009 Boost Converter

The XL6009 is commonly used in adjustable step-up converter modules. It may be suitable for projects that need a higher output voltage from a lower DC source.

Before selecting a specific XL6009 board, check the actual module’s input range, output-voltage range, maximum switch-current rating, thermal requirements, and continuous output-power capability. These depend on the design of the complete module, not just the regulator IC.

Analog Devices provides a detailed technical explanation of boost conversion and its operating principles.

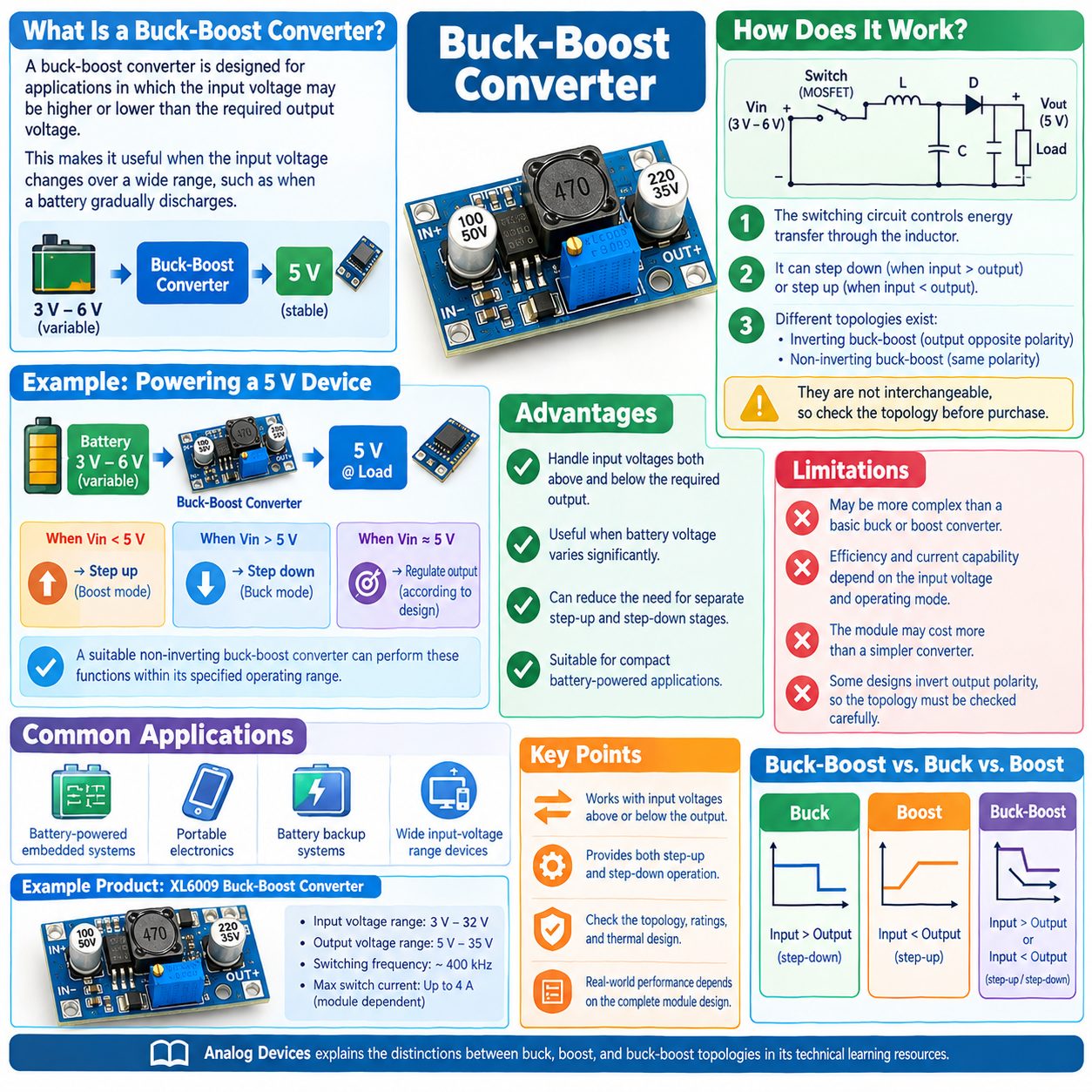

7. Buck-Boost Converter

A buck-boost converter is designed for applications in which the input voltage may be higher or lower than the required output voltage.

This makes it useful when the input voltage changes over a wide range, such as when a battery gradually discharges.

How Does a Buck-Boost Converter Work?

A buck-boost converter controls energy transfer through a switching circuit and an inductor to regulate the output.

Depending on the topology, it can operate in step-down mode when the input exceeds the target output, or step-up mode when the input falls below it.

There are several buck-boost implementations. A traditional inverting buck-boost produces an output of opposite polarity, while non-inverting buck-boost designs maintain the same output polarity as the input. They are not interchangeable, so check the circuit topology before purchase.

Example: Powering a 5 V Device from a Changing Battery

Imagine a battery-powered system whose voltage varies from 3V to 6V, while the load requires a stable 5V.

• When the input is below 5V, the converter must step up the voltage.
• When the input is above 5V, the converter must step it down.
• When the input is close to 5V, the converter must regulate the output according to its design.

A suitable non-inverting buck-boost converter can perform these functions within its specified operating range.

Advantages of Buck-Boost Converters

• Handle input voltages both above and below the required output.
• Useful when battery voltage varies significantly.
• Can reduce the need for separate step-up and step-down stages.
• Suitable for compact battery-powered applications.

Limitations of Buck-Boost Converters

• May be more complex than a basic buck or boost converter.
• Efficiency and current capability depend on the input voltage and operating mode.
• The module may cost more than a simpler converter.
• Some designs invert output polarity, so the topology must be checked carefully.

Common Applications

• Battery-powered embedded systems.
• Portable electronics.
• Battery backup systems.
• Devices that must continue operating across a wide input-voltage range.

Monolithic Power Systems explains the distinctions between buck, boost, and buck-boost topologies in its technical learning resources.

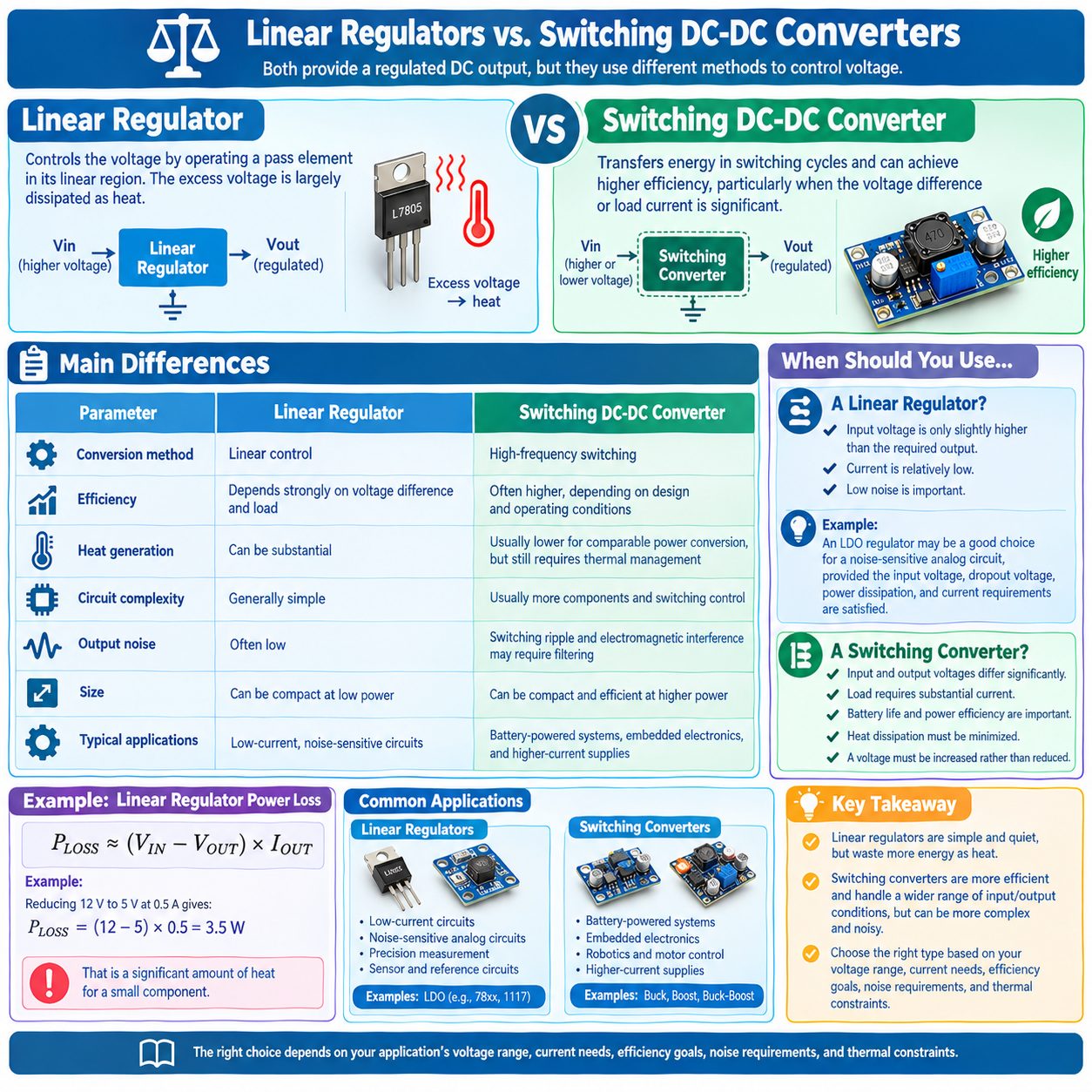

8. Linear Regulators vs. Switching DC-DC Converters

A linear regulator and a switching DC-DC converter can both provide a regulated DC output, but they use different methods to control voltage.

A linear regulator controls the voltage by operating a pass element in its linear region. The excess voltage is largely dissipated as heat. A switching converter transfers energy in switching cycles and can achieve higher efficiency, particularly when the voltage difference or load current is significant.

Main Differences

When Should You Use a Linear Regulator?

A linear regulator may be appropriate when the input voltage is only slightly higher than the required output, the current is relatively low, and low noise is important.

For example, an LDO regulator may be a good choice for supplying a noise-sensitive analog circuit, provided the input voltage, dropout voltage, power dissipation, and current requirements are satisfied.

When Should You Use a Switching Converter?

A switching converter is often preferable when:

• The input and output voltages differ significantly.
• The load requires substantial current.
• Battery life and power efficiency are important.
• Heat dissipation must be minimized.
• A voltage must be increased rather than reduced.

For a linear regulator, approximate power dissipation is:
 Ploss ≈ (Vin − Vout) × Iout
For example, reducing 12 V to 5 V at 0.5 A gives an approximate regulator loss of:
 Ploss = (12 − 5) × 0.5 = 3.5W

That is a significant amount of heat for a small component. A switching converter can reduce this loss, although its actual performance depends on the selected design.

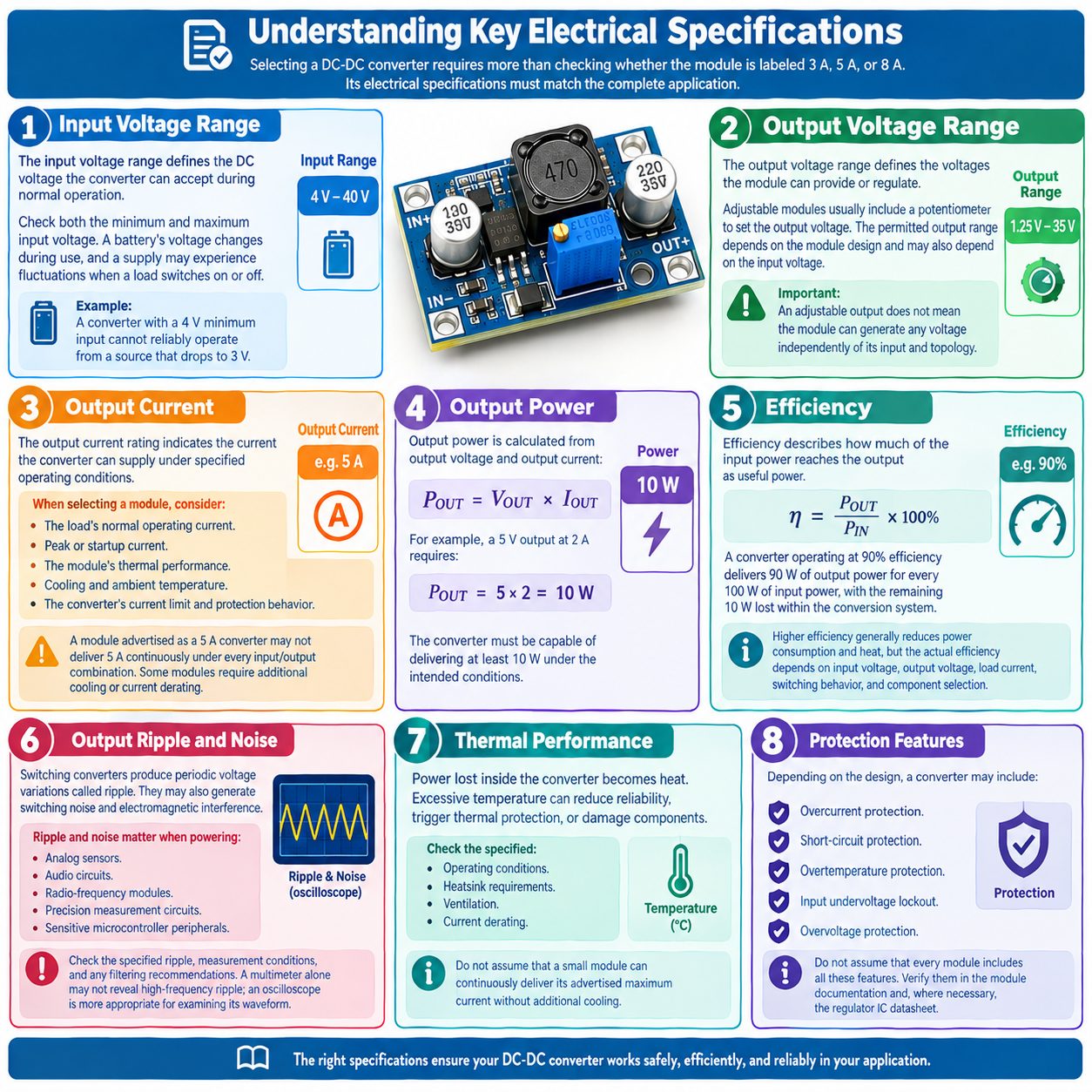

9. Understanding Key Electrical Specifications

Selecting a DC-DC converter requires more than checking whether the module is labeled 3 A, 5 A, or 8 A. Its electrical specifications must match the complete application.

Input Voltage Range

The input voltage range defines the DC voltage the converter can accept during normal operation.

Check both the minimum and maximum input voltage. A battery’s voltage changes during use, and a supply may experience fluctuations when a load switches on or off.

Example: A converter with a 4 V minimum input cannot reliably operate from a source that drops to 3 V.

Output Voltage Range

The output voltage range defines the voltages the module can provide or regulate.

Adjustable modules usually include a potentiometer to set the output voltage. The permitted output range depends on the module design and may also depend on the input voltage.

Important: An adjustable output does not mean the module can generate any voltage independently of its input and topology.

Output Current

The output current rating indicates the current the converter can supply under specified operating conditions.

When selecting a module, consider:

• The load’s normal operating current.
• Peak or startup current.
• The module’s thermal performance.
• Cooling and ambient temperature.
• The converter’s current limit and protection behavior.

A module advertised as a 5 A converter may not deliver 5 A continuously under every input/output combination. Some modules require additional cooling or current derating.

Output Power

Output power is calculated from output voltage and output current:
 Pout = Vout × Iout
For example, a 5 V output at 2 A requires:
 Pout = 5 × 2 = 10W

The converter must be capable of delivering at least 10 W under the intended conditions.

Efficiency

Efficiency describes how much of the input power reaches the output as useful power.

η = (Pout ÷ Pin) × 100%

A converter operating at 90% efficiency delivers 90 W of output power for every 100W of input power, with the remaining 10W lost within the conversion system.

Higher efficiency generally reduces power consumption and heat, but the actual efficiency depends on input voltage, output voltage, load current, switching behavior, and component selection.

Output Ripple and Noise

Switching converters produce periodic voltage variations called ripple. They may also generate switching noise and electromagnetic interference.

Ripple and noise matter when powering:

• Analog sensors.
• Audio circuits.
• Radio-frequency modules.
• Precision measurement circuits.
• Sensitive microcontroller peripherals.

Check the specified ripple, measurement conditions, and any filtering recommendations. A multimeter alone may not reveal high-frequency ripple; an oscilloscope is more appropriate for examining its waveform.

Thermal Performance

Power lost inside the converter becomes heat. Excessive temperature can reduce reliability, trigger thermal protection, or damage components.

Check the specified operating conditions, heatsink requirements, ventilation, and current derating. Do not assume that a small module can continuously deliver its advertised maximum current without additional cooling.

Protection Features

Depending on the design, a converter may include:

• Overcurrent protection.
• Short-circuit protection.
• Overtemperature protection.
• Input undervoltage lockout.
• Overvoltage protection.

Do not assume that every module includes all these features. Verify them in the module documentation and, where necessary, the regulator IC datasheet.

10. Common DC-DC Converter Modules: LM2596, XL4015, XL4016, and XL6009

Several adjustable converter modules are popular for prototyping, embedded systems, and educational projects. The following comparison explains their typical roles.

The exact performance of a module depends on its complete circuit, including the regulator IC, inductor, switching device, diode, PCB layout, connectors, and thermal design.

LM2596 Adjustable Buck Converter

The LM2596 is a step-down regulator family commonly used in adjustable DC-DC modules.

Typical use cases:

• Reducing 12V to 5V.
• Powering low-voltage embedded electronics from a higher DC supply.
• Prototyping regulated supplies for sensors and development boards.

Texas Instruments specifies the LM2596 regulator IC for up to 3 A under specified operating conditions. The continuous output capability of a third-party module must be assessed separately.

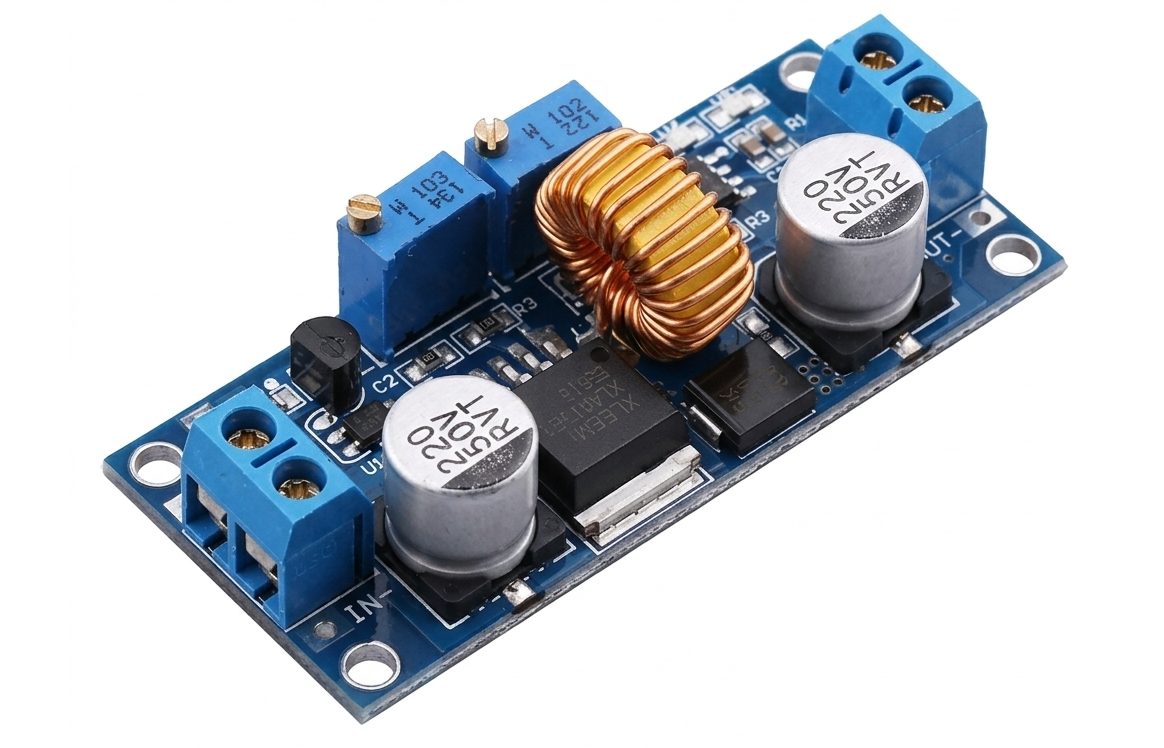

XL4015 Adjustable Buck Converter

The XL4015 is commonly used in step-down modules designed for higher-current applications.

Typical use cases:

• Higher-current DC loads.
• Adjustable supplies for electronics prototypes.
• Projects that need a lower output voltage with more current than a small basic regulator module can support.

Check the exact board’s input and output limits, cooling requirements, and whether it provides constant-current control. A board with CC/CV adjustment may be useful for certain charging applications, but its suitability must be verified against the battery chemistry and charging requirements.

XL4016 Buck Converter

XL4016-based modules are often marketed for higher-current step-down applications.

Typical use cases:

• Higher-power DC supplies.
• Adjustable power for suitable robotics and electronics projects.
• Applications that require a higher current capability than a basic buck module.

The advertised current should not be treated as a guaranteed continuous output rating. Confirm the module’s thermal performance and specifications before using it near its limits.

XL6009 Boost Converter

The XL6009 is commonly used in step-up modules that increase a lower DC input voltage to a higher output voltage.

Typical use cases:

• Increasing battery voltage for a suitable load.
• Generating a higher DC rail for a prototype.
• Applications that need adjustable step-up conversion.

Because boost converters can draw high input currents, check the input source’s current capability as well as the module’s output rating.

Product Comparison Table

For Makers Electronics, these modules can be presented as product options within the article, with a direct link to each verified product listing. Product descriptions should distinguish IC specifications from the actual capabilities of the assembled module.

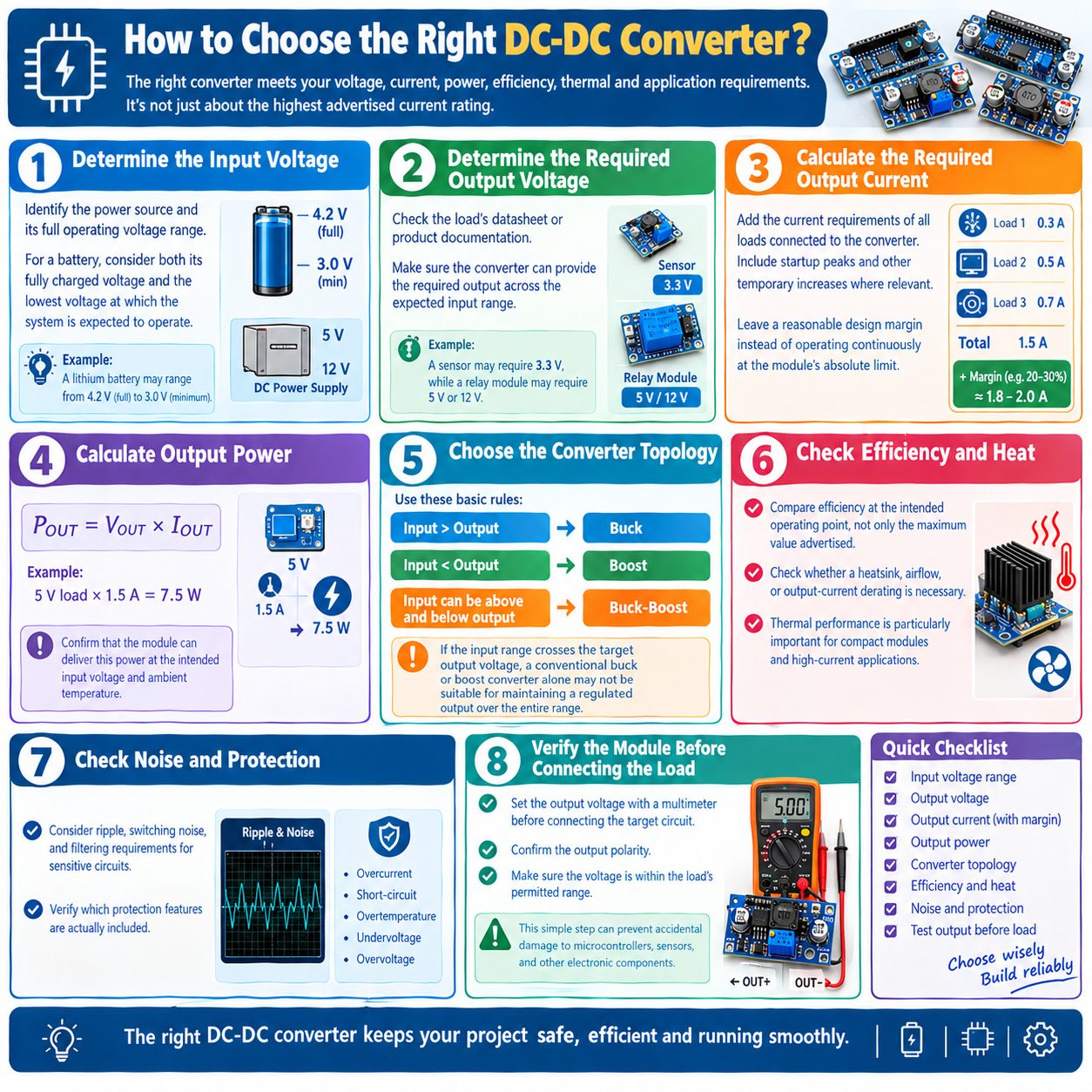

11. How to Choose the Right DC-DC Converter?

A suitable converter is one that meets the voltage, current, power, efficiency, thermal, and application requirements—not simply the one with the highest advertised current rating.

Step 1: Determine the Input Voltage

Identify the power source and its full operating voltage range.

For a battery, consider both its fully charged voltage and the lowest voltage at which the system is expected to operate.

Step 2: Determine the Required Output Voltage

Check the load’s datasheet or product documentation.

For example, a sensor may require 3.3V, while a relay module may require 5V or 12V. Make sure the converter can provide the required output across the expected input range.

Step 3: Calculate the Required Output Current

Add the current requirements of all loads connected to the converter. Include startup peaks and other temporary increases where relevant.

Leave a reasonable design margin instead of operating continuously at the module’s absolute limit.

Step 4: Calculate Output Power

Use:     Pout = Vout × Iout

For example, a 5V load drawing 1.5A requires 7.5W of output power.

Confirm that the module can deliver this power at the intended input voltage and ambient temperature.

Step 5: Choose the Converter Topology

Use these basic rules:

• Choose a buck converter when the input voltage is higher than the required output.
• Choose a boost converter when the input voltage is lower than the required output.
• Choose a buck-boost converter when the input can move above and below the required output.

If the input range crosses the target output voltage, a conventional buck or boost converter alone may not be suitable for maintaining a regulated output over the entire range.

Step 6: Check Efficiency and Heat

Compare efficiency at the intended operating point, not only the maximum value advertised.

Check whether a heatsink, airflow, or output-current derating is necessary. Thermal performance is particularly important for compact modules and high-current applications.

Step 7: Check Noise and Protection

For sensitive circuits, consider ripple, switching noise, and filtering requirements. Also verify which protection features are actually included.

Step 8: Verify the Module Before Connecting the Load

Set the output voltage with a multimeter before connecting the target circuit. Confirm the output polarity and make sure the voltage is within the load’s permitted range.

This simple step can prevent accidental damage to microcontrollers, sensors, and other electronic components.

12. Practical Applications of DC-DC Converters

DC-DC converters are used throughout electronics wherever the available DC supply does not directly match the voltage requirements of a load.

Arduino and ESP32 Projects

A buck converter can provide a regulated supply from a higher-voltage DC source for compatible electronics. However, check the development board’s recommended supply input and avoid feeding an unsuitable voltage into its 3.3V or 5V pins.

Robotics and Motor-Control Systems

Robotics projects often use a battery to power motors and electronic control circuits. Separate regulated supplies may be needed for logic, sensors, and other loads.

Motors can produce startup surges and electrical noise, so the converter and source must support peak demand. Appropriate grounding, decoupling, and motor-noise suppression may also be necessary.

Battery-Powered Devices

Boost and buck-boost converters can help maintain a useful output voltage as battery voltage changes.

For battery-powered applications, also consider converter quiescent current, shutdown current, efficiency at light loads, and battery protection requirements.

Solar-Powered Electronics

Solar panels produce a voltage that varies with illumination and loading. A suitable DC-DC converter can adapt this voltage for a downstream load.

However, a basic converter does not automatically provide maximum power point tracking (MPPT). Solar applications that require MPPT need an appropriate controller or power-management design.

Automotive and Industrial Electronics

DC-DC converters can adapt one DC power rail to another for control systems, sensors, displays, and other electronic equipment.

Automotive and industrial environments may involve transients, reverse polarity, electrical noise, and wide temperature ranges. A general-purpose hobby module should not be assumed suitable for these environments without checking its ratings and protection provisions.

13. Wiring and Setup Guidelines

Correct wiring and setup are important for obtaining the expected output voltage and preventing damage.

Identify the Input and Output Terminals

Most adjustable modules have terminals marked IN+, IN−, OUT+, and OUT−, although labeling and terminal arrangements vary.

• Connect the power source to the input terminals.
• Connect the load to the output terminals.
• Verify the polarity before applying power.
• Follow the module documentation for any additional control pins.

Set the Output Voltage Before Connecting the Load

For an adjustable module:

1. Disconnect the load.
2. Connect a suitable DC input source within the specified range.
3. Turn on the source.
4. Measure the output using a multimeter.
5. Adjust the potentiometer carefully until the required voltage is reached.
6. Turn off the supply if needed, then connect the load with the correct polarity.
7. Power the circuit and check the output voltage under load.

Some modules require a minimum load or have other startup requirements. Follow the manufacturer’s instructions where available.

Use Appropriate Wiring

Higher currents require appropriately sized wires, secure connections, and connectors that can handle the current without excessive heating or voltage drop.

Keep power wiring short where practical, particularly for high-current switching circuits. Follow the module’s layout guidance and ensure that any heatsink has adequate clearance and ventilation.

Common Setup Example: 12 V to 5 V

For a 12 V source and a 5 V load, an appropriate buck converter can be used if its input range includes 12 V and its output capability meets the load’s requirements.

Before connecting a microcontroller or sensor:

• Confirm that the source voltage is within the module’s input range.
• Set and measure the output at 5 V.
• Verify output polarity.
• Confirm that the converter can supply the required current.
• Check the output voltage again after the load is connected.

Safety note:

• These instructions apply to suitable low-voltage DC systems.
• Do not connect an ordinary hobby converter module directly to household AC mains.
• Use an appropriately rated, isolated AC-DC power supply where mains power is involved.

14. Common Mistakes and Troubleshooting

Even a correctly selected converter can behave unexpectedly if it is wired incorrectly, overloaded, or used outside its operating limits.

Output Voltage Is Too Low

Possible causes:

• The input voltage is below the required operating range.
• The load draws more current than the converter can supply.
• The input power source or wiring has excessive voltage drop.
• The converter is entering current limiting or thermal protection.

What to check:

Measure the input voltage at the module terminals while the load is operating. Then measure the output and compare the results with the module’s specifications.

Converter Overheats

Possible causes:

• Excessive output current or power.
• Poor airflow or inadequate heatsinking.
• Operation at an unfavorable input/output voltage ratio.
• Losses in the switching components, inductor, or PCB connections.

What to check:

Reduce the load, check the temperature under normal conditions, and confirm the module’s continuous rating and cooling requirements.

Output Voltage Fluctuates

Possible causes:

• An unstable or undersized input supply.
• Rapid changes in load current.
• Inadequate filtering or poor wiring.
• A damaged module or an application that exceeds its operating range.

What to check:

• Measure input and output voltages under different loads.
• Use an oscilloscope if you need to examine ripple or transient behavior.

The Converter Cannot Reach the Desired Voltage

Possible causes:

• The requested voltage is outside the module’s adjustment range.
• The selected topology cannot produce the required voltage.
• The input voltage is insufficient.
• The module has reached a duty-cycle, current, or other operating limit.

What to check:

Compare the desired output with the module’s specified input and output ranges and select a different topology if necessary.

The Load Resets or Behaves Erratically

Possible causes:

• Startup current exceeds the converter’s capability.
• Voltage drops occur in wires or connectors.
• Switching noise affects sensitive circuits.
• The supply and load do not share the intended reference or grounding arrangement.

What to check:

Measure voltage at the load during startup, inspect wiring and grounding, and verify that the power source and converter can support peak current demand.

15. Frequently Asked Questions

What is the main purpose of a DC-DC converter?

A DC-DC converter changes one DC voltage level to another. Depending on its topology, it can step the voltage down, step it up, or regulate the output when the input voltage varies above and below the required output.

What is the difference between a buck and a boost converter?

A buck converter reduces the input voltage, while a boost converter increases it. A buck-boost converter can perform both functions, depending on its design and operating conditions.

Can I use a DC-DC converter to power an Arduino or ESP32?

Yes, provided the converter’s output voltage and current meet the board’s requirements. Check the board’s documentation to determine the correct power input, and verify the converter output with a multimeter before connecting it.

Is a DC-DC converter more efficient than a linear regulator?

A switching DC-DC converter is often more efficient when the input/output voltage difference or load current is significant. However, the actual efficiency depends on the converter design, operating point, and load. A linear regulator may be preferable for low-current or noise-sensitive applications.

Can a buck converter increase voltage?

No. A conventional buck converter is designed to step voltage down. If the required output is higher than the input, use a boost converter or an appropriate buck-boost converter.

Can a boost converter reduce voltage?

A conventional boost converter is designed to increase voltage, not regulate it below the input. For applications requiring both step-up and step-down operation, choose a suitable buck-boost topology.

What does a 5 A rating mean on a DC-DC converter module?

It indicates an advertised current capability, but it does not necessarily guarantee continuous 5 A operation under every condition. Check the manufacturer’s specifications, thermal limits, cooling requirements, and current derating information.

How do I calculate the required converter power?

Multiply the required output voltage by the output current:

For example, a 12 V load drawing 2 A requires 24 W of output power. Select a converter that can supply this power under the intended operating conditions.

Can I use a DC-DC converter to charge a lithium battery?

Not every DC-DC converter is suitable for battery charging. Lithium batteries require a charging method appropriate for their chemistry, cell count, voltage, and charging-current limits. Use a compatible charger or a properly designed CC/CV charging circuit with the necessary safety provisions.

Does a DC-DC converter provide electrical isolation?

Not necessarily. Many common buck, boost, and buck-boost modules are non-isolated, meaning their input and output share an electrical reference. Galvanic isolation requires a suitable isolated converter topology, such as an appropriately designed flyback or forward converter.

16. Conclusion

DC-DC converters are essential building blocks in electronic power systems because they allow a DC source to supply the voltage required by a particular load.

Understanding the differences between buck, boost, and buck-boost converters makes it easier to choose the correct module for a project. The LM2596, XL4015, and XL4016 are examples of commonly used step-down modules, while the XL6009 is commonly used for step-up conversion.

However, selecting the right converter involves more than choosing a product with the desired output voltage. Input-voltage range, output-current capability, power rating, efficiency, ripple, thermal performance, and protection features must all be considered.

For beginners, starting with a low-voltage DC source and measuring the converter output before connecting a load is a useful way to learn. For more advanced designs, the manufacturer’s datasheet and application notes should guide component selection, thermal calculations, filtering, and circuit layout.

Choosing a converter that matches the application’s actual electrical requirements helps improve power efficiency, reliability, and overall system performance.
