Li-ion Battery 12V 3S-9P 20000mAh – High-Capacity Power Solution!
Features:

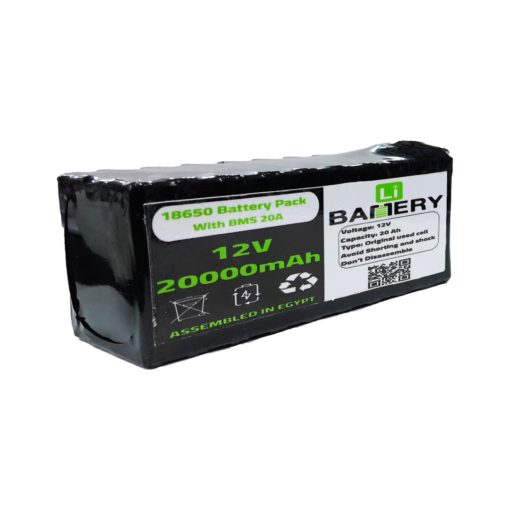

This Li-ion Battery Pack has a nominal voltage of 12.6 volts and is a 3s9p battery pack. The 12V lithium-ion battery pack contains 27 cells connected in series and parallel, giving it a capacity of 20000mAh.
The battery pack has a built-in BMS that protects the battery from overcharging, over-discharging and short circuit.
Specification:
- Charging Voltage: 12.6V
- Capacity: 20000mAh
- Nominal Pack Voltage: 11.1V
- Max. Discharge Current- Tested for: 7.2A
- Cell: Original cells
- Battery Type: 18650 Lithium-Ion
- Protection (Included BMS 20A)
- Short Circuit Protection
- Overvoltage cut-off- 12.8
- Undervoltage cut-off- 9.2V
- Dimensions : 180mm (L)x 67mm (H)x 60mm(W)
- Battery Connector Cable:
- DC Power connector 5.5 x 2.1mm (Female)
- 20AWG Wire
Recommended Charger – Charging Time:
- 12.6v 1.5A Lithium Battery Charger – 7Hrs.
- 12.6v 2A Li-ion Battery Charger – 5 Hrs 30Min.
- 12.6v 3A Li-ion Battery charger – 3Hrs 30Min.
- 12.6v 5A Lithium Battery Charger – 2 Hrs 30Min.
Applications:
- Small scale UPS Battery
- Battery for GPS Tracking – Vehicle Tracking – Asset Tracking
- Wi-Fi Modem or Router Battery for backup
- 12V Remote CCTV Camera
- PSP
- Industrial Machines
- Emergency Lights
- Robotics and RC cars
- Music Players and Audio Systems
Warning:
Note: Lithium batteries can become unstable, if not handled properly, resulting in heat or fire. Safety precautions and prior knowledge is advised.
