1502TA M&R DC Power Supply 15V 2A
1502TA is A compact regulated DC power supply commonly used for powering and testing electronic circuits and devices.
2,950.00 EGP
Buy Now1502TA M&R DC Power Supply 15V 2A

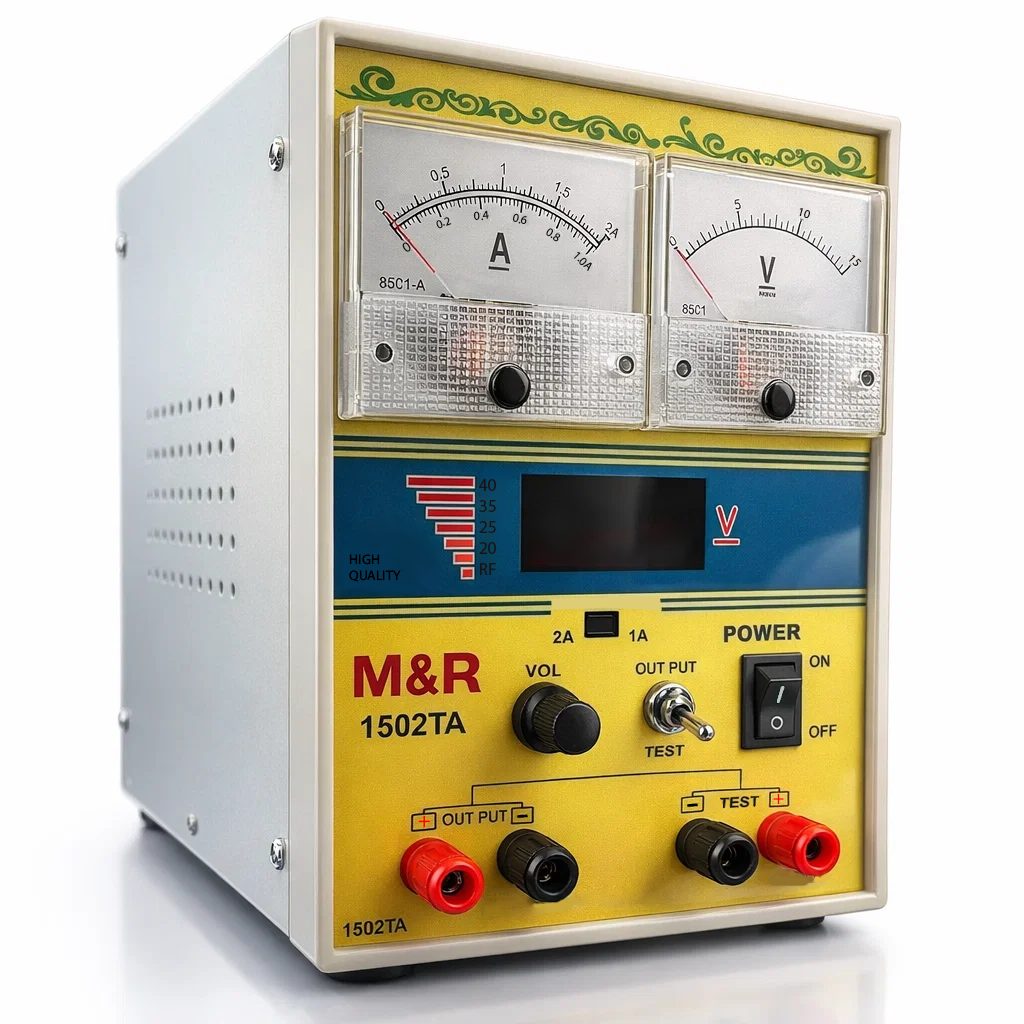

The 1502TA M&R DC Power Supply is a precision bench power supply providing 15V DC at up to 2A. Designed for electronics labs, educational environments, and DIY electronics projects, it delivers a stable and adjustable DC output suitable for a wide range of low-power devices and circuits.

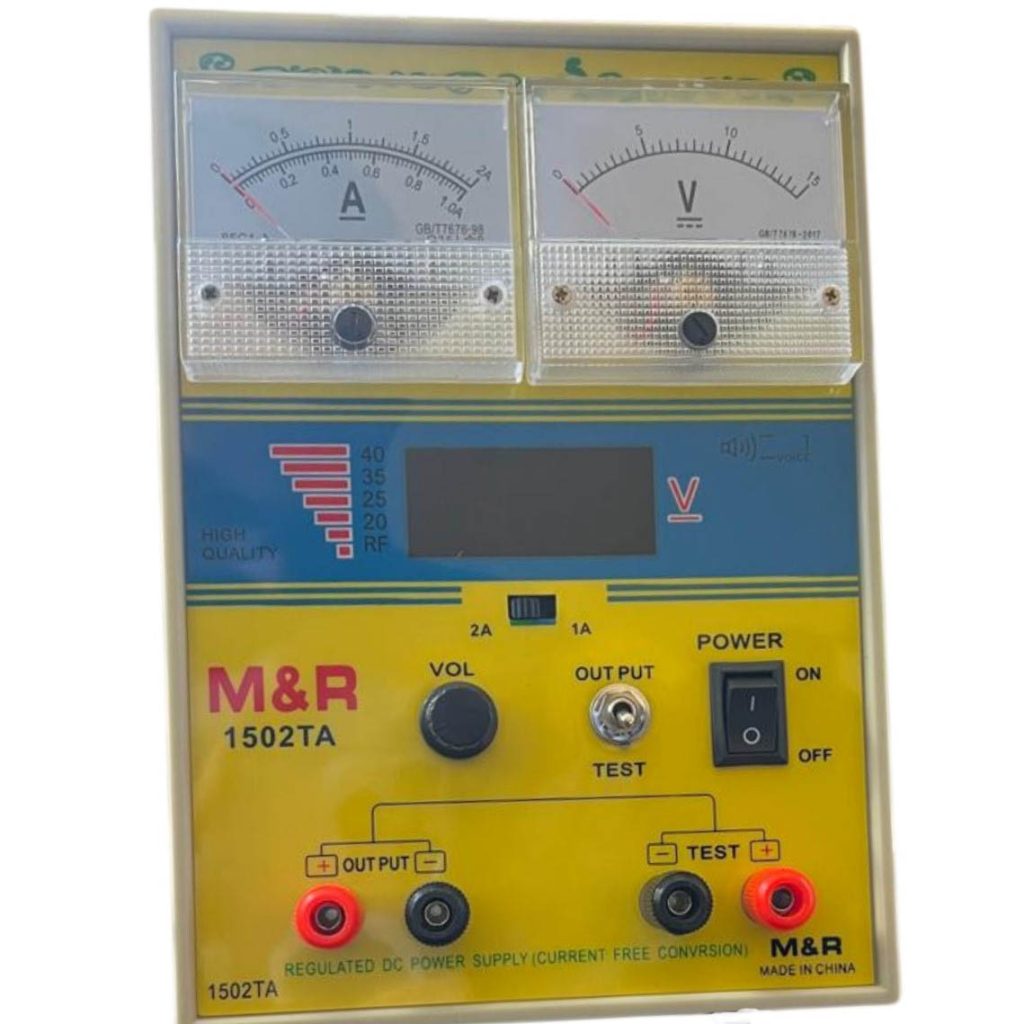

Its compact design and clear voltage/current display make it easy to monitor and adjust output settings. The 1502TA is ideal for powering Arduino and Raspberry Pi projects, breadboard circuits, small motors, and other electronic components. Built with overcurrent and short-circuit protection, it ensures safety for both the user and connected devices.
Features:
- Regulated and stable DC output.
- User-friendly front-panel controls.
- Clear voltage and current display.
- Built-in protection for safe operation.
- Compact bench-top design.
- Suitable for continuous operation in labs and workshops.
Specifications:
| Category | Parameter | Description |
|---|---|---|
| Input Power: | Input Voltage | AC 220V ±10%, 50Hz / AC 110V ±10%, 60Hz |
| Environment: | Operating Temperature | 0 – 40°C |
| Operating Humidity | 80% | |
| Storage Temperature | -10 – 70°C | |
| Storage Humidity | 35% – 45% | |
| Mechanical: | Dimensions (W × L × H) | 142 × 250 × 202mm |
| Output – Voltage Mode: | Output Voltage Range | 0 – 15V (continuously adjustable) |
| Voltage Resolution | 0.1V | |
| Voltage Output Accuracy | ±0.1V | |
| Voltage Stability | < 0.01% + 3mV | |
| Load Stability (Voltage) | < 0.01% + 3mV | |
| Recovery Time | 100µs | |
| Ripple & Noise (Voltage) | < 0.1% Vrms | |
| Temperature Coefficient | < 300PPM/°C | |
| Output – Current Mode: | Constant Current Range | 0 – 2A / 0 – 3A / 0 – 5A |
| Current Adjustment | Continuously adjustable from 0 to 5A | |
| Current Stability | < 0.1% + 3mA | |
| Load Stability (Current) | < 0.1% + 3mA | |
| Ripple & Noise (Current) | < 1%Vrms |
Applications:
- Electronics testing and troubleshooting.
- Powering development boards and modules.
- Educational laboratory experiments.
- Repair and maintenance work.
- Prototyping and DIY electronics projects.
Packages:
- 1x M&R DC Power Supply 1502TA 15V 2A.
- 1x User manual.
