Feature:
1. Arc Igniter: This cigarette lighter can instantly ignite the paper, and the purple electric arc is very beautiful.
2. Simpler DIY: Super mini size allows for broad application, such as electronic lighter, DIY, learning and so on.
3. Safe to Use: The transformer is encapsulated in resin, which ensures safe working performance and good stability.
4. Working Tip: 3.7V lithium battery is recommended, and the output pulse voltage can get up to 0.5kv‑0.8kv.
5. Easy to Install: Light in weight and compact in size as well, the installation is very convenient to complete.
Specification:

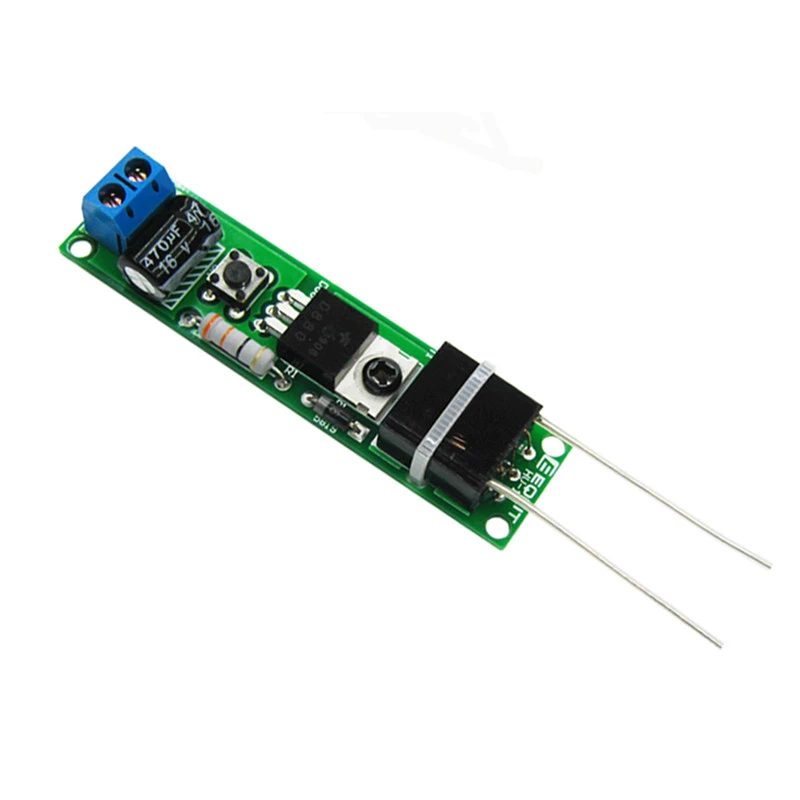

- Name: HV-1 High Voltage Igniter
- Input voltage: DC 3-5V
- Input current: 3A
- Output Pulse Voltage: 0.5kv-0.8kv
- Working current:<=2.5A
- Operation way: self-excitation oscillating thrust
- Operating frequency: 20KHz
- Continuous running time: 10s
- Arc length: 5mm
- Size: 71x18x11mm
- Ignition switch: yes
Note:
It can work continuously and reliably for a long time, but it is recommended that each time the cigarette is turned on for no more than 1 minute, pay attention to heat dissipation.
How to use:

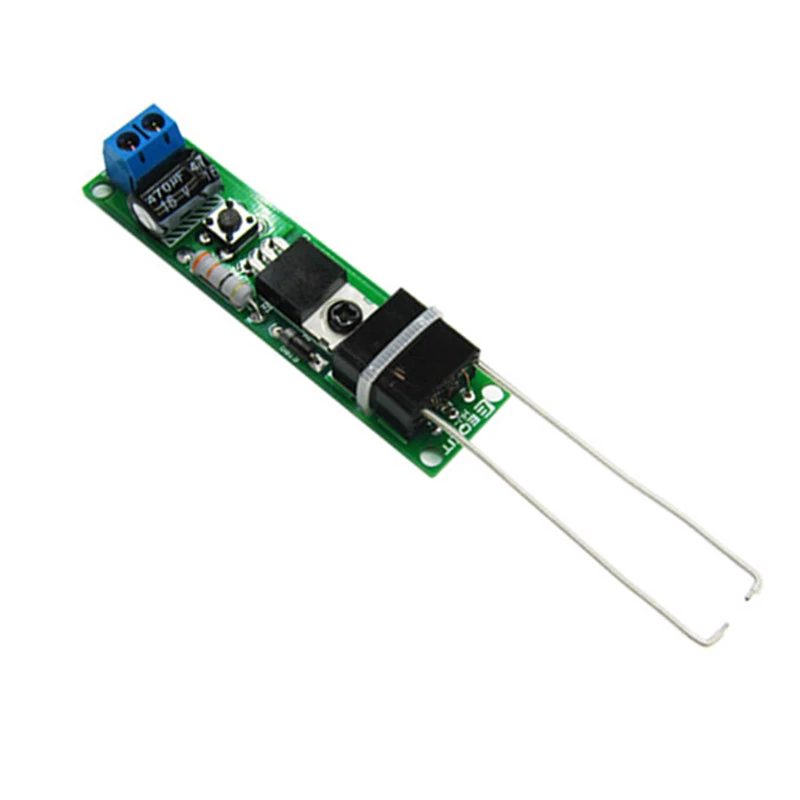

When the input terminal of this product is connected to a DC 3‑5V power supply, and the secondary high voltage output is not connected to a high voltage rectifier diode or capacitor, the output two stage line terminal can generate a purple high temperature arc with a length less than or equal to 0.8 cm. There is no crackling sound, but the temperature is very high. You can easily and instantly light a paper and even the very thin iron wire can burn with sparks.

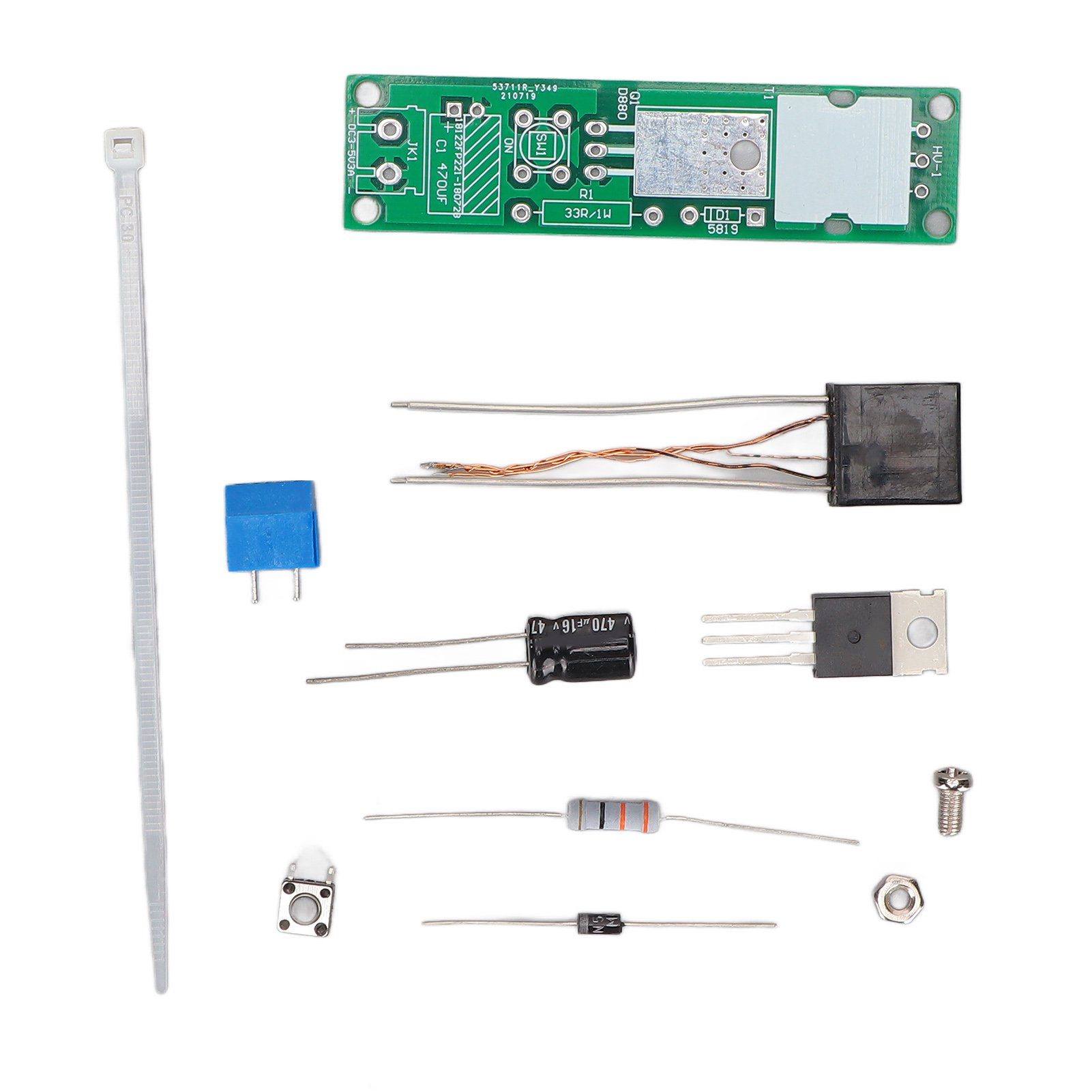

This Circuit is not Soldered
