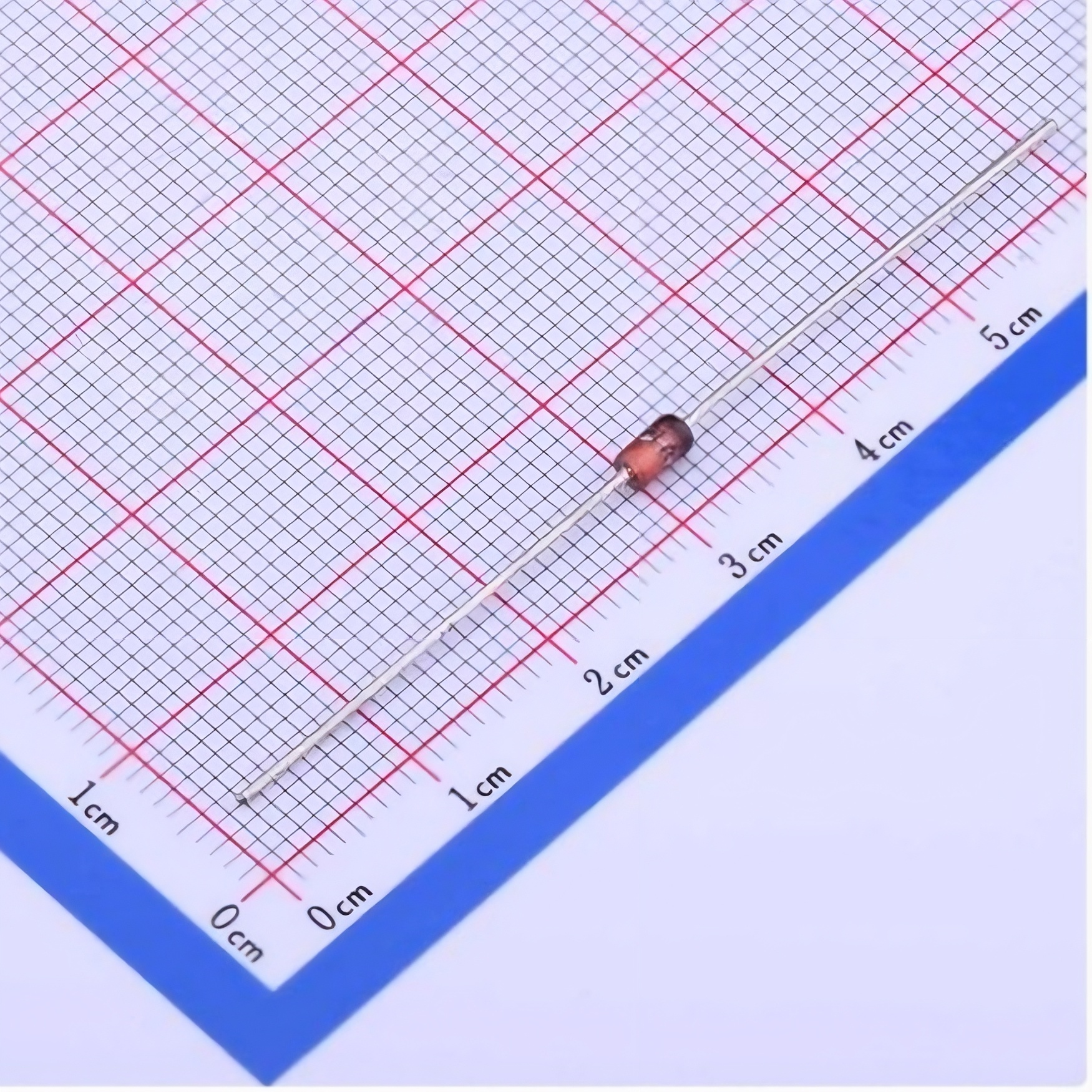

1N4761 Zener Diode 75V 1W DO-35
The 1N4761 75V 1W Zener Diode DO-35 is a silicon planar Zener diode designed to provide stable voltage regulation and over-voltage protection in electronic circuits. This diode features a nominal Zener voltage of 75V and a maximum power dissipation of 1W, making it suitable for voltage stabilization and reference applications in power supplies and signal circuits.
Features:
- Nominal Zener voltage of 75V.
- Maximum power dissipation of 1W.
- Designed for voltage regulation and reference circuits.
- Silicon planar Zener diode technology.
- DO-35 glass axial package for reliable operation.
- Suitable for clipping and surge protection circuits.
Specifications:
| Parameter | Value |
|---|---|
| Zener Voltage | 75V |
| Tolerance | ±5% |
| Power Rating | 1W |
| Test Current | 3.3mA |
| Zener Impedance | 175Ω max |
| Leakage Current | 5µA max @56V |
| Forward Voltage | 1.2V max |
| Operating Temperature | -65°C to +175°C |
| Package | DO-35 |
Footprint:
Applications:
- Voltage regulation and reference circuits.
- Overvoltage protection in power supplies.
- Signal clipping and limiting in analog designs.
- Transient suppression in industrial controls.
- Battery charging and protection modules.
- General-purpose stabilization in consumer electronics.
Package Include:
1x 1N47-61 Zener Diode 75V 1W DO-35.
