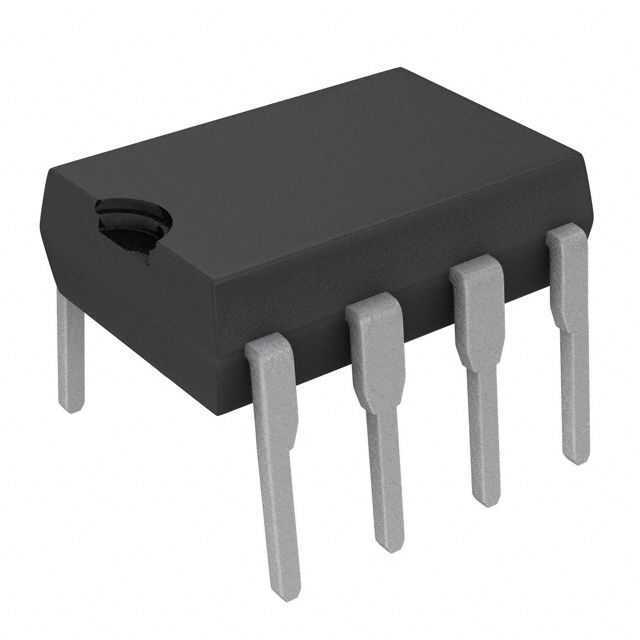

The 24C16 is a 16,384-bit serial Electrically Erasable and Programmable Read-Only Memory (EEPROM) that provides dependable non-volatile storage. Organized as 2048 words of 8 bits each, this EEPROM is ideal for applications requiring low-power and low-voltage operation. It communicates using a standard 2-wire bidirectional serial interface, often referred to as I2C.
Pin Layout
Pin Description
Pin Number
Description
1
A0 – Address Input
2
A1 – Address Input
3
A2 – Address Input
4
GND – Ground
5
SDA – Serial Data
6
SCL – Serial Clock Input
7
WP – Write Protect
8
Vcc – Positive Power Supply
Specifications
Specification
Value
Memory Size
16 kbit
Organization
2048 x 8 bits
Interface Type
2-Wire, Serial (I2C Compatible)
Supply Voltage (Min)
1.7 V
Supply Voltage (Max)
5.5 V
Clock Frequency
400 kHz (at 1.7V to <2.5V), 1 MHz (at 2.5V to 5.5V)
