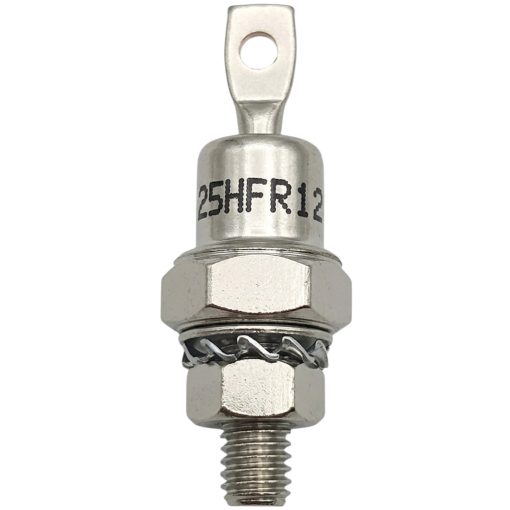

25HFR120 Metal Diode 25A 1200V Anode Stud Mount
The 25HFR120 is a high-performance, stud-mounted power rectifier diode designed for heavy-duty applications. Capable of handling up to 25 Amperes of continuous current and withstanding peak reverse voltages of 1200V, this diode is engineered for durability and efficient heat dissipation. The “R” in the part number signifies Reverse Polarity, meaning the Anode is connected to the mounting stud, allowing for direct mounting onto heat sinks that serve as the positive terminal of a circuit.
Features
- High Power Handling
- Reverse Polarity (Anode to Stud)
- High Surge Capability
- Rugged Construction
- Ease of Installation
Specifications
| Parameter | Details |
|---|---|
| Model Number | 25HFR120 |
| Component Type | Standard Recovery Power Rectifier |
| Max. Average Forward Current (IF) | 25 Amperes |
| Max. Peak Reverse Voltage (VRRM) | 1200 Volts |
| Mounting Style | Stud / Screw Mount |
Applications
- Battery Chargers
- Welding Equipment
- Power Supplies
- Motor Control
- Converters & Inverters
Package Content
- 1 x 25HFR120 Metal Diode 25A 1200V Anode Stud Mount
