2N7002K 7002 N Channel MOSFET SMD 60V 340mA 0.35W 1.7Ω@4.5V SOT-23
The 2N7002K 7002 N Channel MOSFET is a compact N-channel enhancement-mode MOSFET designed for voltage-controlled switching applications. The device is rated for a drain-source voltage of 60V and a continuous drain current of 340mA, making it suitable for low-power switching and signal-control applications. The exact C17702881 listing specifies a maximum power dissipation of 350mW and an RDS(on) of 1.7Ω at a 4.5V gate-source voltage.
Features:
- N-channel MOSFET.
- 60V drain-source voltage.
- 340mA continuous drain current.
- 350mW maximum power dissipation.
- 1.7Ω maximum RDS(on) at 4.5V gate-source voltage.
Specifications.
| Parameter | Value |
|---|---|
| Component Type | N-Channel MOSFET |
| Model Number | 7002-2N7002K |
| Channel Type | N-Channel |
| Number of Channels | 1 |
| Drain-Source Voltage (VDS) | 60V |
| Continuous Drain Current (ID) | 340mA |
| Power Dissipation (PD) | 350mW |
| Gate Threshold Voltage (VGS(th)) | 2.5V maximum |
| Drain-Source On Resistance (RDS(on)) | 1.7Ω @ 4.5V |
| Input Capacitance (Ciss) | 40pF |
| Output Capacitance (Coss) | 30pF |
| Reverse Transfer Capacitance (Crss) | 10pF |

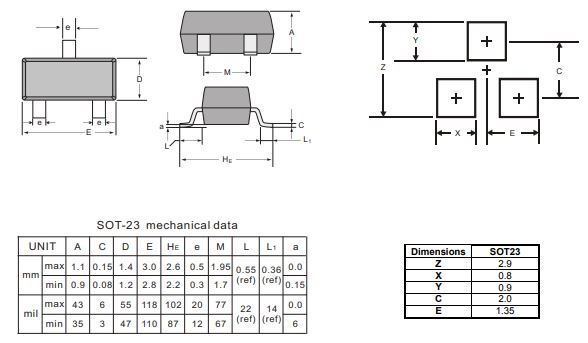

| Package | SOT-23 |
| Mounting Type | Surface Mount |
| Operating Temperature | -55°C to +150°C |
| ESD Protection | 2kV HBM |

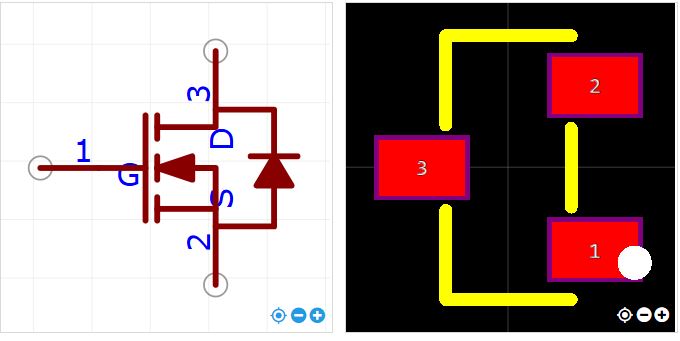

Foot print:
Applications:
- Load switching for portable electronic devices.
- DC/DC converter circuits.
- Small-signal switching.
- Electronic switching circuits.
- Low-power control circuits.
- Logic-controlled switching applications.
- Battery-powered electronic equipment.
- Portable electronic devices.
- Compact PCB designs.
- General-purpose MOSFET switching applications.
Package Include:
1x 2N7002K 7002 N Channel MOSFET SMD 60V 340mA 0.35W 1.7Ω@4.5V SOT-23
