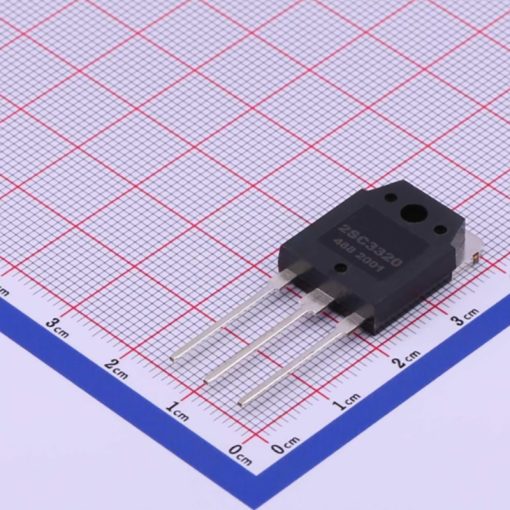

2SC3320 NPN Power Transistors TO-3PN

2SC3320 NPN Power Transistors TO-3PN

The 2SC3320 is a high-performance NPN power transistor designed for demanding applications in power electronics. With its robust construction, this transistor is optimized for high voltage and high current applications. Featuring a collector-emitter breakdown voltage of 400V and a collector current capability of up to 15A, the 2SC3320 is well-suited for power switching circuits and high-efficiency amplifiers. Its construction ensures that it performs efficiently, with high reliability in various industrial environments.

One of the standout features of the 2SC3320 is its fast switching speed and low saturation voltage, which makes it highly effective in high-frequency applications. It can handle high-power levels without overheating, with a collector power dissipation rating of 80W and a thermal resistance of 1.56°C/W. This allows the transistor to maintain optimal performance without excessive heat buildup, even under load.

The 2SC3320 is used in a wide range of applications that require high efficiency and fast switching speeds. Its collector-emitter voltage of 400V and sustaining voltage of 400V ensure it can be used in switching regulators, high-frequency inverters, and other power amplification systems. Its ability to perform reliably in demanding environments makes it a trusted choice for engineers and designers looking for a versatile and high-performing NPN transistor.

Features:

• High Collector-Emitter Breakdown Voltage: 400V (Min)
• High Switching Speed
• Reliable Performance in High Power Applications
• Low Saturation Voltage: VCE(sat) = 1.0V (at IC = 6A)
• Fast Switching Time: Turn-on time (ton) = 0.5μs
• High Current Capability: IC = 15A
• High Power Dissipation: PC = 80W
• Wide Operating Temperature Range: -65°C to 150°C
• Low Collector Cutoff Current: ICBO = 1.0mA at VCB = 500V

Specifications:

Pinout Diagram:

Footprint:

Applications:

• Switching Regulators.
• Ultrasonic Generators.
• High-Frequency Inverters.
• General-Purpose Power Amplifiers.

Package Include:

• 1x 2SC3320 NPN Power Transistors TO-3PN

Datasheet
