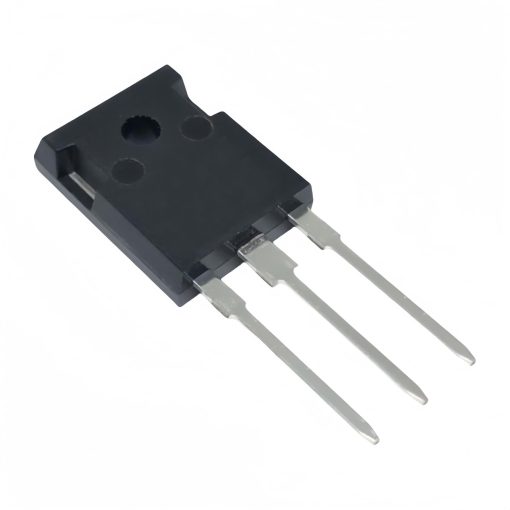

2SC4111 NPN Transistor
The 2SC4111 NPN Transistor is a high-speed switching power transistor designed for use in horizontal deflection output stages in electronics. It is built using a silicon triple diffusion planar structure, providing enhanced reliability and performance. With a collector-emitter voltage (VCE) of 700V and a high collector-to-base voltage (VCBO) rating of 1500V, the 2SC4111 is capable of handling significant power levels while ensuring safe and efficient operation.
Features:
- High-speed switching
- High collector to base voltage VCBO
- Wide area of safe operation (ASO)
- Satisfactory linearity of forward current transfer ratio hFE
Specifications:
| Parameter | Value |
|---|---|
| Collector to base voltage | 1500V |
| Collector to emitter voltage | 700V |
| Emitter to base voltage | 7V |
| Peak collector current | 22A |
| Collector current | 10A |
| Base current | 3.5A |
| Collector power dissipation (TC=25°C) | 150W |
| Junction temperature | 150°C |
| Storage temperature | -55to+150°C |
| Forward current transfer ratio (hFE1, VCE=5V, IC=1A) | 5(min) |
| Forward current transfer ratio (hFE2, VCE=5V, IC=7A) | 3(min)to8(max) |
| Collector to emitter saturation voltage (IC=7A, IB=2.5A) | 5V(max) |
| Base to emitter saturation voltage (IC=7A, IB=2.5A) | 1.5V(max) |
| Transition frequency (VCE=10V, IC=1A, f=0.5MHz) | 2MHz(typ) |
| Storage time | 12µs(max) |
| Fall time | 0.6µs(max) |

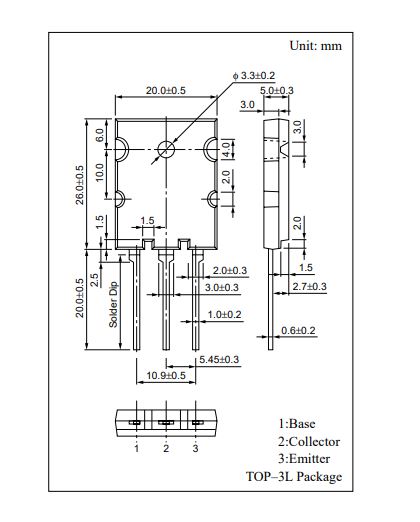

Pin Configuration:
Applications:
Applications:- Horizontal deflection output in CRT displays.
- Power amplification in high-voltage switching circuits.
- Industrial control systems requiring high-speed transistors.
- Consumer electronics for deflection and power management.
- Legacy television and monitor repair.
Package Include:
1x 2SC4111 NPN Transistor.
