2SC828 NPN Transistor

0.75 EGP

Availability: Out of stock
SKU:300000011499

2SC828 is an NPN, Silicon-based AF Amplifier Transistor that is mainly used in AF based audio equipment for amplification and switching. It has a Collector-Emitter Voltage of 45 Vdc with a Collector-Base voltage of 45 Vdc. The 2SC828 transistor could provide 50mAdc of collector current continuously.

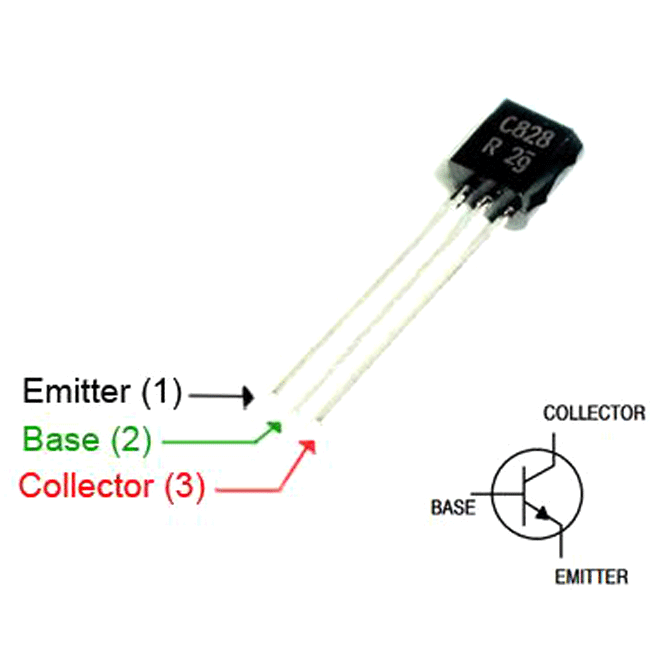

Pin Description of 2SC828 Transistor

Pin Number

Pin Name

Description

1

Emitter

Emitter pin of the transistor

2

Base

Base pin of the transistor

3

Collector

Collector pin of the transistor

Features and Specification of 2SC828 Transistor

  • Type: NPN
  • Segment: AF based Amplification and switching
  • Collector to Emitter Voltage (VCEO)= 25V
  • Collector to Base Voltage (VCBO)= 30V
  • Emitter to Base Voltage (VEBO)= 7V
  • Collector Current (IC)= 50mA
  • Min hFE = 130 for Q variant, 180 for R variant, and 260 for S variant (IC = 2.0 mAdc, VCE = 5 Vdc)
  •  Max hFE = 260 for Q variants, 360 for R variant, and 520 for S variant (IC = 2.0 mAdc, VCE = 5Vdc)
  • Current-gain-bandwidth Product = 220Mhz (Typ) (IC = 2mAdc, VCE = 10Vdc)

Note: Complete technical details can be found in the 2SC828 Datasheet linked at the bottom of this page.

2SC828 Transistor- Overview

The 2SC828 is an NPN silicon-based planar transistor used in AF amplification. It offers great stability in the medium frequency switching operation. The 2SC828 is available in three variants depending on the different levels of hFE. The variants are Q, R and S. The hFE levels are 130-260, 180-360, and 260-520 (min-max) respectively.

Applications of 2SC828 Transistor

  • AF Amplifier system
  • AM Transmitter
  • AF Tuner
  • Oscillator Driver
  • Medium Speed Switching applications

2SC828 Datasheet
