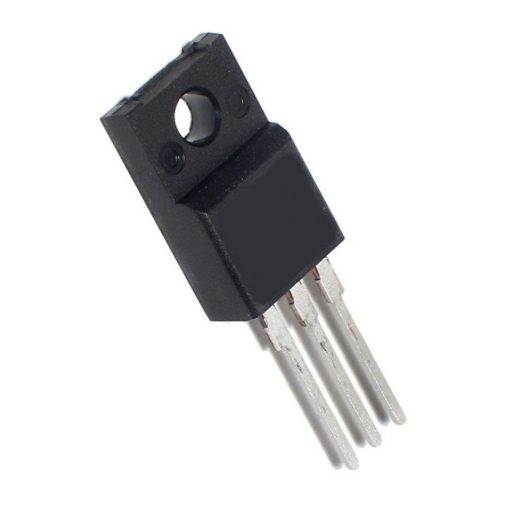

2SK1420 N-Channel MOSFET Transistor TO-220F
The 2SK1420 N-Channel MOSFET Transistor in a TO-220F package from Toshiba is designed for high-power applications, offering exceptional performance in switching power supplies, motor control, and other power circuits. With a maximum voltage of 60V and a current rating of 25A, this MOSFET is ideal for use in applications requiring efficient and reliable power management. The 2SK1420 is well-regarded for its low on-resistance, fast switching time, and robust construction, making it a preferred choice for both industrial and consumer electronics.
Features:
- High Power Handling with 60V and 25A ratings.
- Low On-Resistance for reduced power loss.
- Fast Switching for efficient operation in high-frequency circuits.
- TO-220F Package for easy mounting and effective heat dissipation.
Specifications:
| Parameter | Value |
|---|---|
| Drain-Source Voltage (Vdss) | 60 V |
| Gate-Source Voltage (Vgss) | ±20 V |
| Continuous Drain Current (Id) | 25 A |
| Pulse Drain Current (Idp) | 100 A |
| Total Power Dissipation (Pd) | 30 W |
| Gate Threshold Voltage (Vgs(off)) | 1.5 V to 2.5 V |
| Drain-Source On-Resistance (Rds(on)) | 45 mΩ (Max @ Vgs=4V) |
| Drain-Source On-Resistance (Rds(on)) | 40 mΩ (Max @ Vgs=10V) |

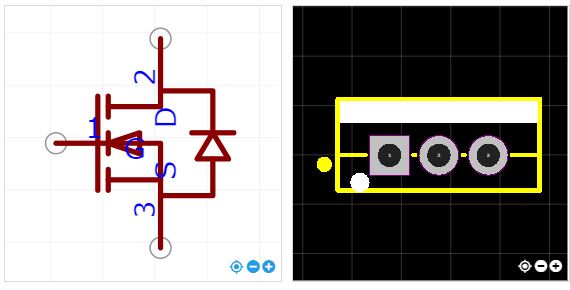

Footprint:
Applications:
- Power switching circuits.
- DC-DC converters.
- Motor control systems.
- Audio amplifiers.
- Power supply regulation.
Package Include:
1x 2SK-1420 N-Channel MOSFET Transistor TO-220F
