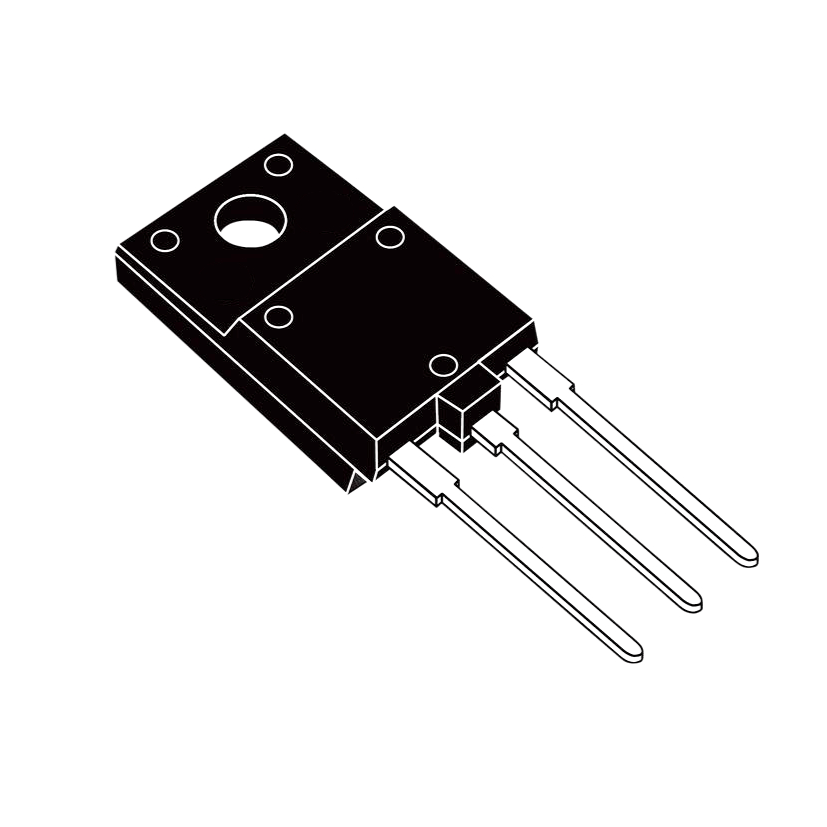

2SK1463 MOSFET Transistor TO-3PF
A versatile and robust N-Channel Silicon MOSFET, the 2SK1463 is engineered for ultrahigh-speed switching applications. This component is an ideal choice for designers and hobbyists looking to enhance the efficiency and performance of their electronic projects. Its low ON-state resistance and high-speed capabilities make it a staple for power supply and converter designs.
Features
- Low ON-state Resistance: Minimizes power loss and improves overall efficiency.
- Ultrahigh-speed Switching: Enables rapid switching, crucial for modern power electronics.
- High Voltage Capability: With a drain-to-source voltage of 900V, it is suitable for high-voltage applications.
Specifications
| Parameter | Symbol | Value | Unit |
|---|---|---|---|
| Drain-to-Source Voltage | VDSS | 900 | V |
| Gate-to-Source Voltage | VGSS | ±30 | V |
| Drain Current (DC) | ID | 4.5 | A |
| Drain Current (Pulse) | IDP | 9 | A |
| ON-State Resistance (Max) | RDS(on) | 3.6 | Ω |
| Power Dissipation (Tc=25°C) | PD | 60 | W |
| Channel Temperature | Tch | 150 | °C |
Applications
- Offline switching power supplies
- Uninterruptible Power Supplies (UPS)
- AC and DC motor controls
- Relay and solenoid drivers
- General-purpose converters
