4015 IC Shift Register Serial to parallel PDIP-16 Original
The CD4015B is a monolithic CMOS integrated circuit that functions as a dual 4-bit static shift register. Its primary role is to convert serial data into parallel data, operating as a serial-in, parallel-out (SIPO) register. The device is constructed using complementary MOS technology, which provides it with the classic benefits of very low power consumption and a wide operating voltage range. This makes it a versatile and robust building block for various digital logic systems, capable of interfacing with both CMOS and TTL logic families when operated at a suitable voltage.
The IC contains two identical and completely independent shift registers on a single chip. Each register has its own dedicated data input, clock input, and a master reset input, allowing for flexible and separate control. Data presented at the serial input is shifted into the register on the low-to-high transition of the clock pulse. The master reset input, when set to a high logic level, asynchronously clears all stages of its respective register, forcing all outputs to a low state, regardless of the clock or data input conditions.
Each of the four stages in a register is represented by a Q output, providing parallel access to the shifted data. The data bit moves from one stage to the next with each clock pulse, effectively creating a delay line or a means to hold multiple bits of data. This parallel output structure is ideal for tasks like driving multiple outputs from a single serial data line, such as illuminating LEDs or controlling other digital loads, thereby reducing the number of microcontroller I/O pins required in a system.
Features:
- Dual 4-Stage Static Shift Registers.
- Serial Input, Parallel Output Operation.
- Master Reset for Each Register.
- Medium-Speed Operation.
- Fully Static Operation (Does not require a minimum clock frequency).
- Low Power TTL Compatibility.
- Standardized Symmetrical Output Characteristics.
- 100% Tested for Quiescent Current at 20V.
Pin Overview:
| Pin Name | Pin # | Type | Description |
|---|---|---|---|
| VDD | 16 | Power | Supply Voltage (+3 to +15V) |
| GND | 8 | Power | Ground (0V) |
| DA | 7 | Input | Data pin for register A |
| CLKA | 9 | Input | Clock pulse for register A |
| RSTA | 6 | Input | Reset pin for register A |
| QA0,QA1,QA2,QA3 | 5,4,3,10 | Output | 4-bit output for register A |
| DB | 15 | Input | Data pin for register B |
| CLKB | 1 | Input | Clock pulse for register B |
| RSTB | 14 | Input | Reset pin for register B |
| QB0,QB1,QB2,QB3 | 11,12,13, 2 | Output | 4-bit output for register B |
Specifications:
| Physical | |

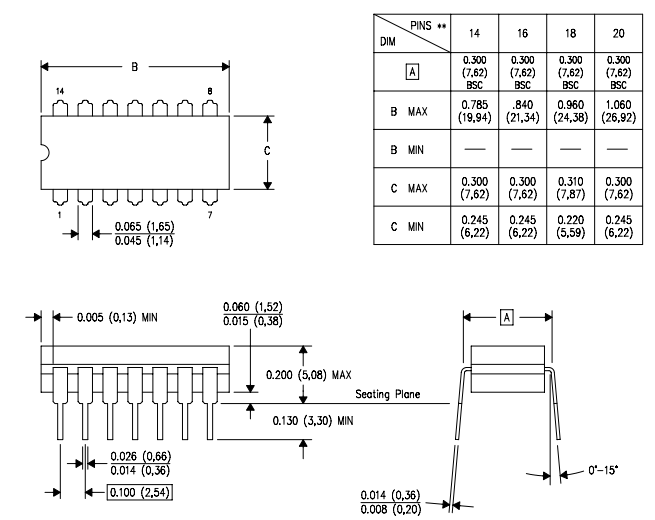

| Case/Package | PDIP |
| Contact Plating | Gold |
| Mount | Through Hole |
| Number of Pins | 16 |
| Technical | |
| Direction | Unidirectional |
| Frequency | 17 MHz |
| Input Capacitance | 5 pF |
| Logic Function | Shift Register |
| Max Operating Temperature | 125 °C |
| Max Supply Voltage | 18 V |
| Min Operating Temperature | -55 °C |
| Min Supply Voltage | 3 V |
| Number of Bits | 4 |
| Number of Bits per Element | 4 |
| Number of Circuits | 2 |
| Number of Elements | 2 |
| Number of Input Lines | 1 |
| Number of Output Lines | 4 |
| Power Dissipation | 500 mW |
| Propagation Delay | 400 ns |
| Quiescent Current | 100 µA |
| Turn-On Delay Time | 400 ns |
Applications:
- Serial-to-Parallel Data Conversion.
- Data Storage and Temporary Memory.
- Time Delay Circuits.
- Sequence Generation and Control.
- LED Matrix or Bar Graph Drivers.
Package Contents:
- 1x 4015 IC Shift Register Serial to parallel PDIP-16 Original
