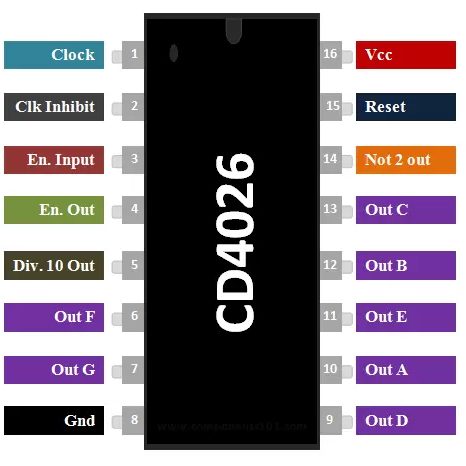

CD4026 Decade Counter/Divider Pinout
CD4026 Pin Configuration
| Pin Number | Pin Name | Description |
| 1 | Clock (CLK) | The counting happens when this clock pulse goes high , this pin is normally connected to 555 timer or other uC to produce a pulse |
| 2 | Clock Inhibit (INH) | Connected to the Ground (low) of the circuit, to enable clock pin |
| 3 | Enable Input (DEI) | This pin is connect to +5V (high) to enable the output pins (Out A to Out G) |
| 4 | Enable Output (DEO) | This is an output which always stays high, this pin will be only if more than one CD4026 IC is used (cascaded) |
| 5 | Divide by 10 (CO) | This is the carry over output pin; it produces a pulse after counting till 9. This pin will be only if more than one CD4026 IC is used (cascaded) |
| 6,7,9,10,11,12,13 | Out A,B,C,D,E, F,G | These are the decoded output pins which should connected to 7-Segment display. |
| 8 | Ground | The ground pin should be connected to ground of circuit |
| 14 | Not 2 out (UCS) | This is Ungated C segment pin. This is an output pin which will be rarely used when division is required. |
| 15 | Reset | This input pin when made high (+5V) will reset the count to 0. |
| 16 | Vcc | This pin powers the IC, typically +5V is used. |
Specifications:
| Product Attribute | Attribute Value |
| Product Category: | Counter ICs |
| Mounting Style: | Through Hole |
| Package/Case: | PDIP-16 |
| Counter Type: | Decade |
| Logic Family: | CD4000 |
| Number of Bits: | 7 bit |
| Counting Sequence: | Up |
| Operating Supply Voltage: | 3 V to 18 V |
| Minimum Operating Temperature: | – 55 C |
| Maximum Operating Temperature: | + 125 C |
| Series: | CD4026B |
| Function: | Counter |
| Operating Temperature Range: | – 55 C to + 125 C |
| Output Current: | +/- 1.5 mA |
| Product Type: | Counter ICs |
Note: Complete Technical Details can be found on the CD4026 datasheet given at the end of this page.
Where to use CD4026 IC
The IC CD4026 is an IC that can perform the function of both a counter as well a 7-segment Driver. One single IC can be used to count from zero (0) to nine (9) directly on a Common Cathode type 7-segment display. The count can be increased by simply giving a high clock pulse; also more than one digit (0-9) can be created by cascading more than one CD4026 IC. So if you have a 7-segment (CC) display on which you have to display numbers that are being counted based on some condition then this IC will be a perfect choice.
How to use a CD4026 IC
The IC can work from 3V to 15V but is normally powered with +5V to the Vdd/Vcc pin, and the Ground/Vss pin is connected to the ground. We have 7 output pins named from Out A to Out G which is directly connected to the 7-segment display. The clock inhibits pin (pin 2) has to be held low (ground/0V) so that the clock signals can be sent to the IC also the Enable Input pin (pin 3) should be made high (+5V) so that the output pins (Out A to G) can be made active.
The 7-segment pins will increment the count by one number each time the clock pin (pin 1) is made high. This clock source can either be obtained from a 555 IC or any other digital IC that is TTL compatible. They simply have to generate a pulse of low voltage 0V and high voltage 5V. In the circuit below I have used a clock source of 1Hz to increment the count. So the number will get incremented for every (T=1/F) 1 second.
The Reset pin (pin 15) is used to reset the count back to zero when made high. There are three other output pins (pin 5,4,14) which will be used only when the IC needs to be cascaded. The pin Carry over (CO – pin 5) will stay high by default, but when the count reaches “9” it will give a small pulse and the count will continue from “0” again. This small pulse can be used to drive the clock pin of a cascaded IC to display more than one digit. The Direct Enable output (DEO) pin will always stay high, to enable any cascaded IC, if available. The Ungated C segment pin (pin 14) is used for any division operation; this pin will stay high by default and will go low when the count reaches “2”.
The complete working of the IC CD4026 can be found in the simulation video given below.
Applications
- Used in 7-segment counter projects
- Can be used to count people or objects crossing a point
- Has the capability to display a wide range of numbers from 0 – 999
- Used in projects where Microcontrollers should be avoided
