4041 CMOS Quad True/Complement Buffer IC DIP-14

4041 CMOS Quad True/Complement Buffer IC DIP-14

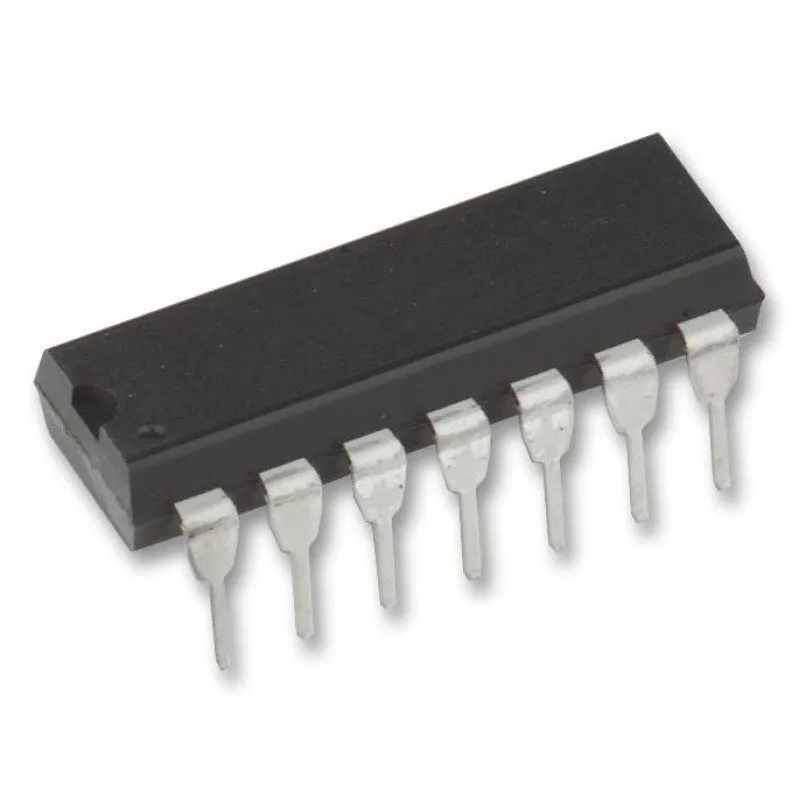

The CD4041UBE is a quad CMOS buffer integrated circuit designed to provide four independent non-inverting buffering channels with true and complement outputs for each input. It is part of the 4000B series of CMOS logic devices and operates reliably over a wide supply voltage range. The device is supplied in a standard 14-pin Dual In-Line Package (DIP-14) that is suitable for through-hole mounting, prototyping, and easy integration into printed circuit boards. It offers high drive capability and excellent noise immunity characteristics typical of the 4000 series CMOS family.

The balanced sink and source current capabilities improve performance over conventional CMOS buffers, and the equalized delay between true and complement outputs ensures consistent timing for switching applications.

Features:

• Four independent non-inverting CMOS buffer channels with both true and inverted outputs.
• Wide power-supply voltage range from 3 V to 18 V.
• Balanced high drive current for both sink and source; approximately four times the standard CMOS “B” drive.
• Very low input leakage current typical of CMOS logic devices.
• Equalized propagation delay between true and complement outputs.

Specifications:

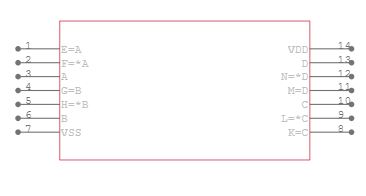

Pin Configuration:

Footprint:

Applications:

• High current source/sink driver in control systems.
• CMOS-to-TTL or DTL converter for logic level translation.
• Display driver for LED or LCD interfaces.
• MOS clock driver in timing circuits.
• Resistor network driver for ladder or weighted resistor applications.
• General-purpose buffer in digital systems.

Package Include:

1x 4041 CMOS Quad True/Complement Buffer IC DIP-14.

Datasheet:

4041
