The 4050 Non-Inverting Hex Buffer/Converter is a CMOS integrated circuit featuring six independent non-inverting buffer stages in a 16-pin dual in-line package. Designed for logic signal buffering and level conversion, this device supports a wide supply voltage range, high noise immunity, and low power dissipation, making it suitable for a variety of digital circuit applications. Each buffer passes input logic levels to the output without inversion while offering the ability to drive multiple loads and assist with interfacing between different logic families. The IC’s robust design ensures reliable operation in buffered digital systems and signal conditioning roles.
Features
Six non-inverting buffer stages for unified logic signal buffering.
Wide supply voltage range supporting typical CMOS operation.
Capable of logic level conversion and buffering functions.
High noise immunity and CMOS low power dissipation.
Outputs capable of driving loads including TTL/DTL.

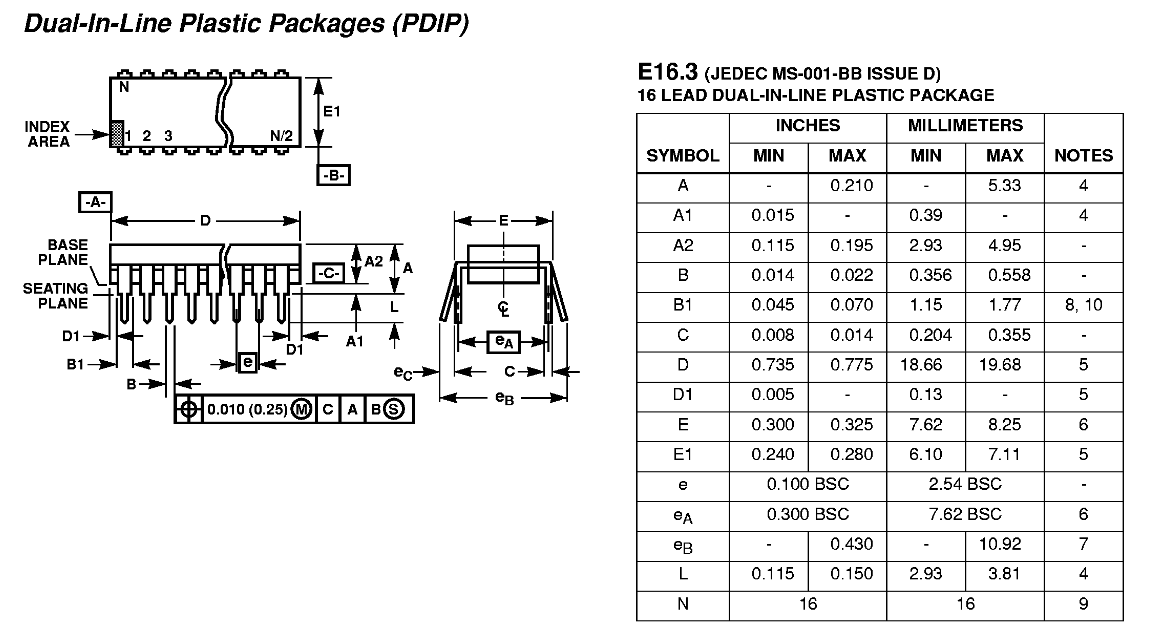

16-pin PDIP package for through-hole PCB integration.
PINOUT
Specifications
Parameter
Value
Device Type
Non-inverting hex buffer/converter
Logic Family
CMOS
Number of Buffers
6
Package Type
PDIP-16
Supply Voltage Range
~3V to ~15V
Operating Temperature
–55°C to +125°C (typical)
Mounting Type
Through-hole
Logic Function
Buffer / level conversion
Output Drive
TTL/DTL compatible load drive
Applications
Logic signal buffering in digital systems.
Voltage/logic level shifting between subsystems.
Interface buffering for microcontrollers and logic families.
PWM or logic waveform conditioning.
Digital control and timing circuits in embedded designs.
