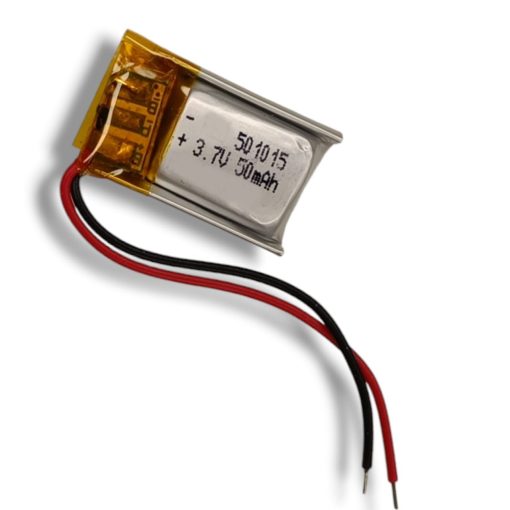

Rechargeable 501015 LIPO Battery Cell 3.7V 50mAh Wire Solder
The Rechargeable 501015 LIPO Battery Cell 3.7V 50mAh Wire Solder is an ultra-compact power source designed for low-power electronic applications. With a nominal voltage of 3.7V and a capacity of 50mAh, it delivers stable and efficient energy in a slim form factor measuring approximately 5.0mm in thickness, 10mm in width, and 15mm in length. The battery comes with pre-soldered wire leads for easy and secure installation. Its lightweight design and reliable performance make it ideal for use in miniature devices such as wireless earbuds, medical sensors, small wearables, and other space-constrained DIY electronics projects.
Features
- Lightweight, low mold opening cost, and high safety.
- Low self-discharge rate.
- This battery are PCM Protected.
- No memory effect and a slow loss of charge when not in use.
- Small Li-Po Battery are rechargeable battery.
- Good charging and discharging characteristics.
- It offers high capacity and hence can be used to hold more power.
- Long cycle life.
Specifications
| Parameter | Specification |
|---|---|
| Battery Type | LIPO |
| Model | 501015 |
| Chemistry | Lithium Polymer |
| Recharging Availability | Rechargeable |
| Nominal Voltage | 3.7V |
| Rated Capacity | 50mAh |
| Full Charge Voltage | 4.2V |
| Cut-off Voltage | 3.0V |
| Power (Wh) | 0.815Wh |
| Dimensions | Thickness: 5mm, Width: 10mm, Length: 15mm |
| Connector Type | Wire leads for soldering |
| Typical Discharge Current | ≤ 0.5C (250mA) |
| Maximum Discharge Current | Up to 1C (500mA) |
| Standard Charging Current | 0.2C (100mA) |
| Cycle Life | ≥ 300 cycles (under standard conditions) |
| Internal Resistance | ≤ 200 mΩ (at full charge) |
| Operating Temperature | Charging: 0°C to +45°CDischarging: -10°C to +60°C |
| Storage Temperature | -20°C to +60°C |
Dimensions
⚠️ Precautions
- Do not store Li-Po batteries in extreme temperatures below 0C or above 50C.
- Always disconnect Batteries when not in use and store batteries in a non-conductive and fireproof container.
- Never expose Batteries to extreme temperatures or direct sunlight.
- Never charge a battery that is still warm after usage, and never use a battery that is still warm from charging.
Applications
- Electronics Gadgets.
- IoT Applications.
- Portable devices.
- Wireless devices.
- Electronic Toys.
Package Contents
- 1x Rechargeable 501015 LIPO Battery Cell 3.7V 50mAh Wire Solder
