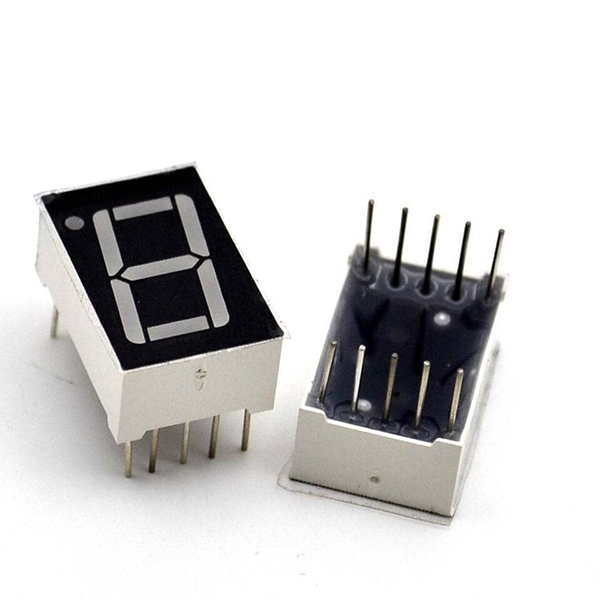

5613BS-21 7-Segment Common Anode 0.56 inch Red
The 5613BS-21 (0.56″) is a compact single-digit 7-segment LED display engineered for clear numeric indication in a variety of panel and instrument applications. Built using AlInGaP LED dice and a white-diffused epoxy with black surface ink, the device produces a strong “super red” appearance centered near 650 nm. Its segments are arranged for high legibility at short to moderate viewing distances and are sized to fit standard PCB footprints for single-digit numeric readouts.
Designed to be driven as a current-operated device, the display gives typical luminous intensity around 5 mcd per segment at IF = 20 mA (range 3.0–7.5 mcd). Forward voltage is modest (≈1.9 V typical), making it straightforward to interface with common microcontroller or driver circuits when paired with proper current limiting. The device is rated for reliable operation over a wide temperature range and includes soldering guidelines for both reflow and hand soldering.
Mechanically robust and ESD-protected (HBM 2 kV), the 5613BS-21 is suitable for instrument panels, consumer electronics, timers and other numeric display tasks where readable red numerals are required. The datasheet also documents reliability tests and storage/handling recommendations to preserve optical uniformity and long life in assembled products.
Features:
- 0.56-inch single-digit 7-segment LED display in red.
- AlInGaP die for vivid “super red” emission.
- White-diffused epoxy with black surface ink for high contrast.
- Typical luminous intensity 5 mcd per segment at IF = 20 mA.
- Recommended operating current 30 mA.
- Low forward voltage around 1.9 V typical.
- ESD protection to HBM 2000 V.
- Wide operating temperature range from −40°C to +85°C.
Specifications:
| Parameter | Specification |
|---|---|
| Display Size: | 0.56 inch (single digit) |
| Configuration: | Common Anode |
| Color: | Red |
| Peak Emission Wavelength: | 650 nm |
| Dominant Wavelength: | 635 – 645 nm (Typical: 640 nm) |
| Luminous Intensity @ 20 mA: | Min: 3.0 mcd, Typical: 5.0 mcd, Max: 7.5 mcd |
| Spectral Line Half-Width: | 20 nm |
| Forward Voltage: | Min: 1.8 V, Typical: 1.9 V, Max: 2.2 V |
| Reverse Current @ 5 V: | Max: 10 µA |
| Recommended Operating Current: | 30 mA |
| Peak Forward Current (1/10 duty @ 1 kHz): | 100 mA |
| Power Dissipation: | 85 mW |
| ESD Rating (HBM): | 2000 V |
| Operating Temperature: | –40 °C to +85 °C |
| Storage Temperature: | –40 °C to +100 °C |
| Soldering: | Reflow: 260°C for 5 s, Hand Solder: 350°C for 3 s |
| Part Number: | FYS-5613BS-21 |

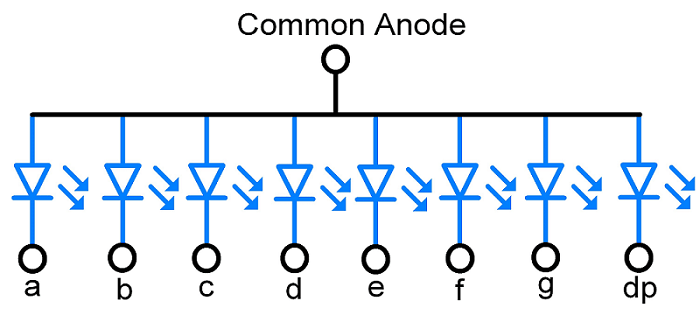

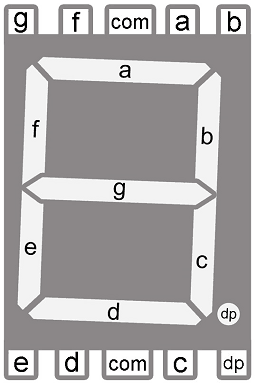

Common Anode (CA)

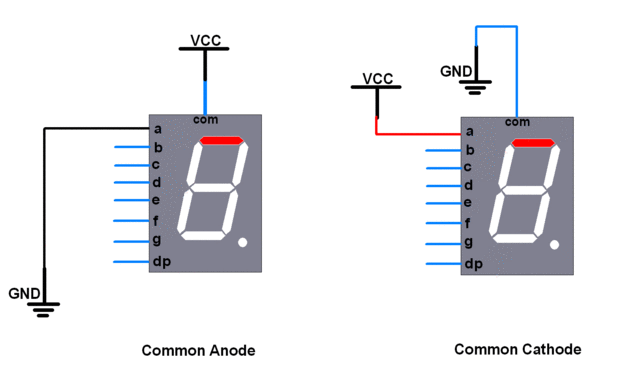

In common anode display, all anode pins are connected together to VCC and LEDs are controlled via cathode terminals. It means to turn ON LED (segment), we have to make that cathode pin logic LOW or Ground.
Applications:
- Numeric displays and instrument panels.
- Digital clocks and timers.
- Consumer electronics numeric indicators.
- Test/measurement equipment readouts.
Package Contents:
- 1x 5613BS-21 7-Segment Common Anode 0.56 inch Red
