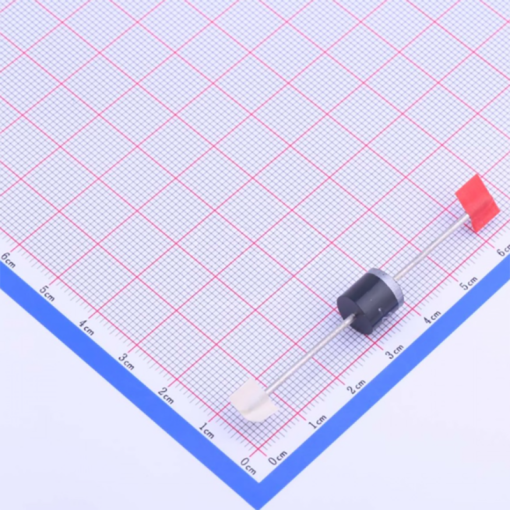

5KP22V TVS Diode Uni-directional 35.5V 141A
The 5KP22V is a high-energy transient voltage suppressor (TVS) from the 5KP series, designed to absorb large surge pulses and clamp transient overvoltages on power lines and high-power DC buses. It is part of a 5,000 W class of suppressors in the R-6/P600 molded package, offered in uni- and bi-directional versions. The device is engineered to protect systems from lightning-induced surges and switching transients by conducting the transient current to ground and keeping the clamped voltage well below destructive levels.
Mechanically the part is a robust, glass-passivated chip junction in a JEDEC R-6/P600 molded plastic package, suitable for heavy duty transient events. Its construction yields low dynamic impedance so the clamping voltage rises minimally as surge current increases; this lets the device limit the peak voltage seen by protected circuitry. The datasheet also specifies high-temperature solder endurance and reflow parameters for board assembly.
Electrically the 5KP22V is specified with a 22 V stand-off (VR) and a tightly controlled breakdown/clamp behavior at specified test currents. It supports connection in series/parallel to scale capacity, and is rated for very high single-pulse energy (5000 W peak power on a 10×1000 μs waveform) while providing fast response (<1.0 μs). These traits make it suitable for industrial and utility environments where occasional extremely large surges must be dissipated without damaging downstream components.
Features:
- Low zener/ dynamic impedance for effective clamping.
- Excellent clamping capability (5000 W peak pulse power, 10×1000 μs).
- JEDEC R-6 / P-600 molded plastic package with glass-passivated junction.
- Uni- and bi-directional versions available.
- Fast response time (typically <1.0 μs).
- Rated for high forward surge and robust soldering (high-temperature reflow capable).
Specifications:
| Parameter (5KP22A / 5KP22CA) | Value |
|---|---|
| Stand-off voltage (VR): | 22.0 V. |
| Reverse leakage at VR (IR@VR): | 1 µA (typ / table entry). |
| Breakdown voltage at test current (VBR @ IT) — min: | 24.40 V. |
| Breakdown voltage at test current (VBR @ IT) — max: | 26.90 V. |
| Test current (IT): | 1 mA. |
| Clamping voltage at IPP (VC @ IPP) — max: | 35.5 V (at specified IPP). |
| Peak pulse current (IPP) — 10/1000 μs: | 141 A (corresponding to the 5000 W class). |
| Peak pulse power (PPP) — 10/1000 μs: | 5000 W (series rating). |
| Steady-state power (TL=75°C) PM(AV): | 8 W. |
| Operating / storage temp. range (Tj / Tstg): | −55 °C to +150 °C. |
| Peak forward surge current (IFSM, 8.3 ms single half-sine): | 400 A. |
| Package / Case: | JEDEC R-6 / P-600 molded plastic (glass passivated junction). |
Pinout Diagram:
Footprint:
Applications:
- A.C. line protection.
- High-power DC bus clamping.
Package Contents:
- 1x TVS Diode 5KP22V
