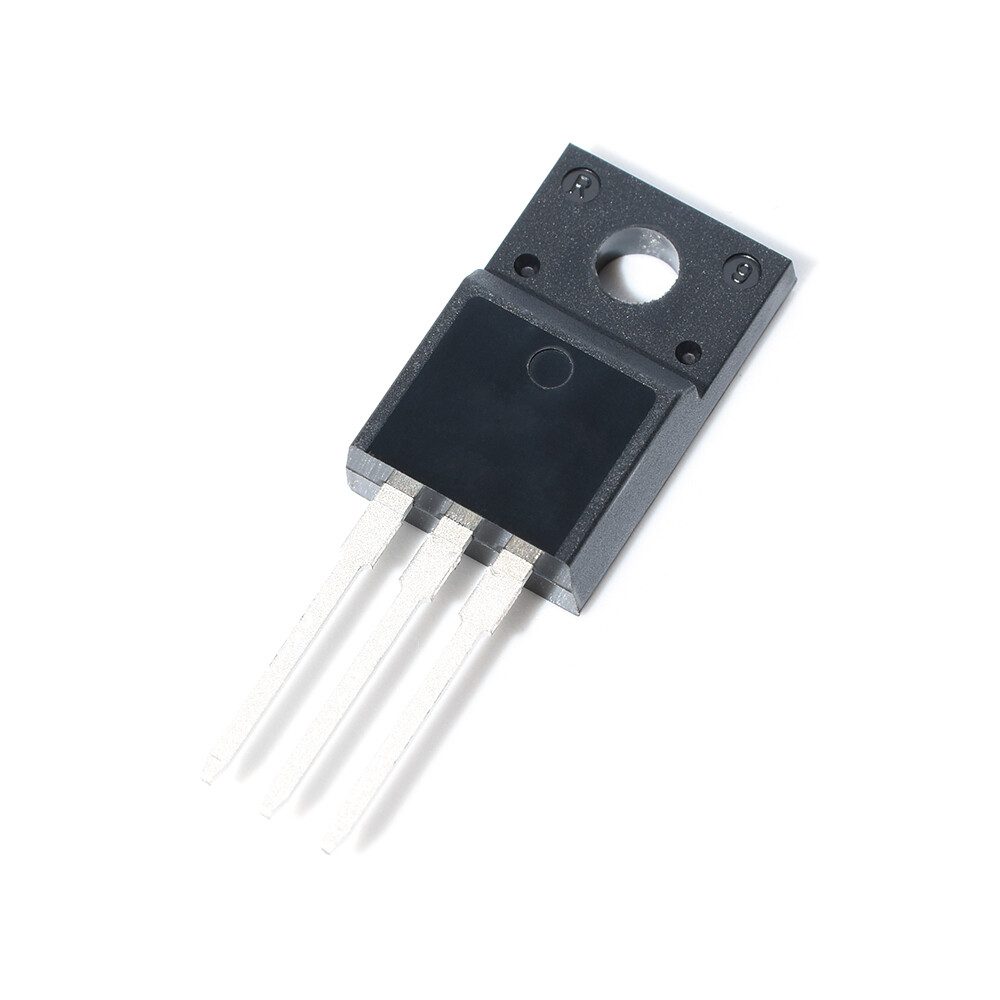

60R360QS MOSFET Transistor N-Channel 600V 11A TO-220F

60R360QS MOSFET Transistor N-Channel 600V 11A TO-220F

The 60R360QS MOSFET Transistor N-Channel 600V 11A TO-220F is a high-performance N-Channel MOSFET transistor designed for fast switching and efficient power management in high-voltage applications. With a drain-source voltage rating of 600V and a continuous drain current of 11A, it offers reliable operation in demanding circuits. Encased in a TO-220F package, this MOSFET provides using magna chip’s advanced super junction technology that can realize very low on-resistance and gate charge. It will provide much  high efficiency by using optimized charge coupling technology. And provides low on-resistance and excellent thermal performance, making it suitable for power supplies, motor drivers, and various industrial electronics. Its robust design ensures high efficiency and long-term reliability in switching and amplification tasks.

Features:

• N-Channel enhancement mode power MOSFET.
• High voltage capability up to 600V.
• Continuous drain current of 11A.
• Low R_DS(on) for improved efficiency.
• Fast switching speed for high-frequency applications.
• TO-220F fully isolated package for easy mounting and heat dissipation.
• High avalanche energy capability.
• Suitable for switching regulators, power supplies, and motor drives.

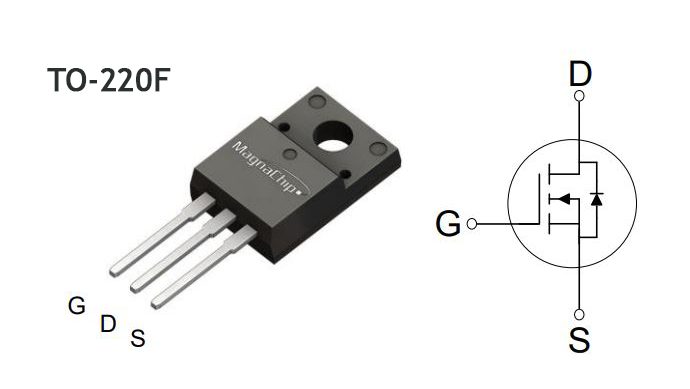

Package & Internal Circuit:

Key Parameters:

Specifications:

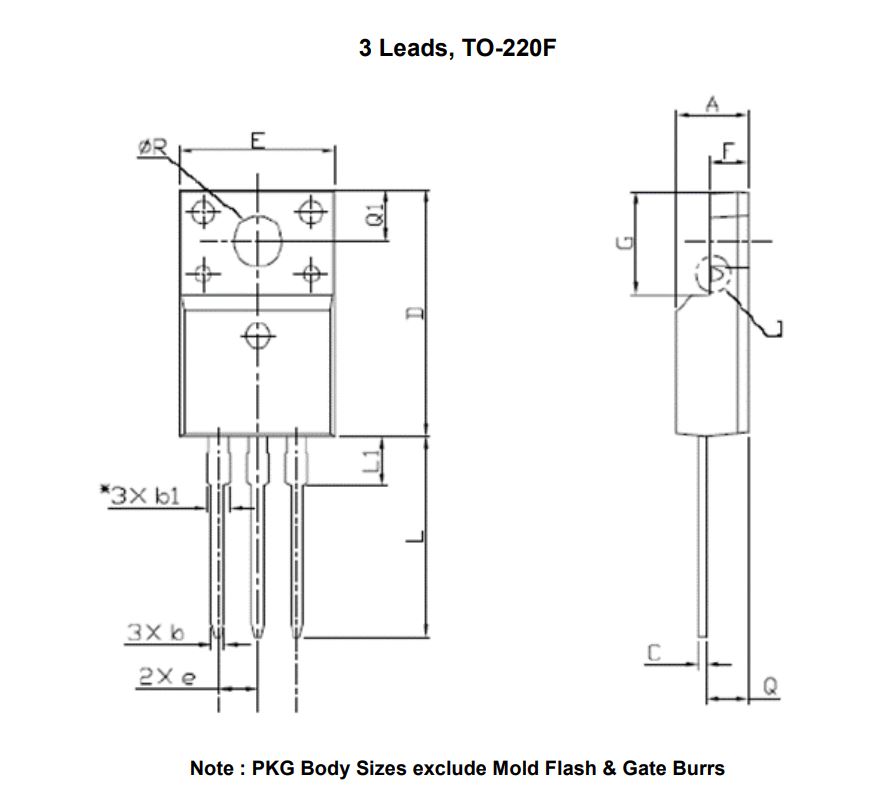

Dimensions:

Applications:

• PFC Power Supply Stages.
•  Switching Applications.
• Adapter.
• Motor Control.
• DC – DC Converters.

Package Contents:

• 1 X  60R360QS MOSFET Transistor N-Channel 600V 11A TO-220F

Datasheet:

• 60R360QS
