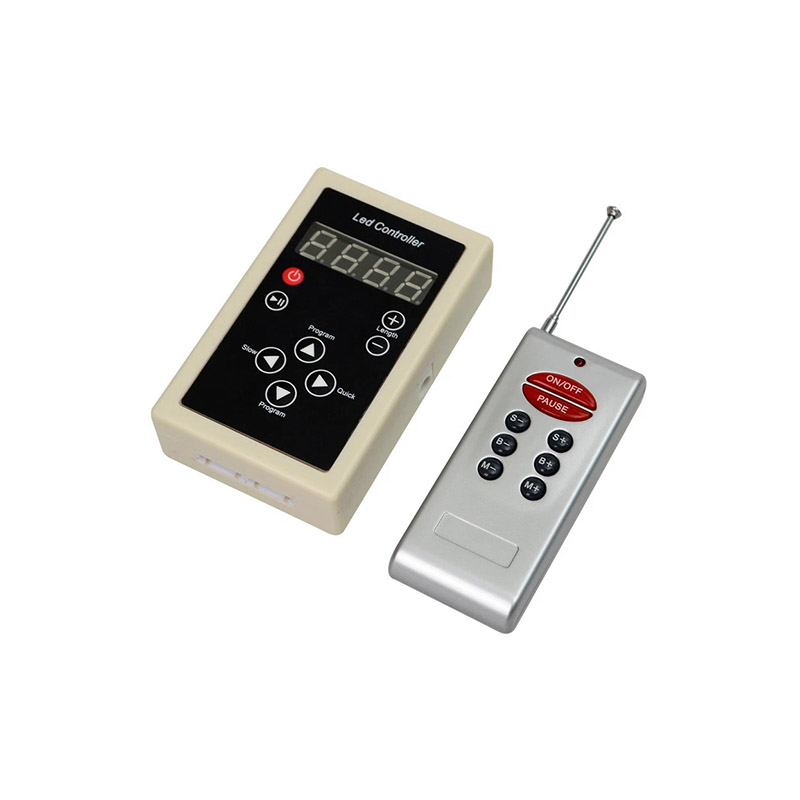

6803 RF Controller for RGB LED Strip 133 Modes 12V 36W
The 6803 RF Controller for RGB LED Strip 133 Modes 12V 36W is a compact and user-friendly lighting controller designed to bring dynamic effects to addressable RGB LED strips. Built around the 6803 driver IC standard, this type of controller receives an RF (radio frequency) signal from a handheld remote, allowing users to change lighting patterns without direct line-of-sight or physical buttons on the controller itself. The unit’s intuitive design makes it suitable for both beginners and more advanced lighting projects where colorful visual effects are desired.
With support for up to 133 distinct modes, this controller lets users cycle through a wide range of dynamic lighting sequences from flowing rainbow patterns to flashing, chasing, and other animated effects. Powered by a standard 12 VDC supply, it delivers enough power for 12 V RGB LED strips used in accent lighting, decoration, and mood enhancement. The RF remote works at a distance, so lights can be managed from across a room or outdoor space without requiring direct control at the strip itself.
The controller integrates a simple interface between the remote and the LED strips, translating mode selections into SPI control signals that sequence LEDs according to the selected program. It’s often used with LPD6803 type strips that support individual LED control, enabling rich and animated color displays. Whether you’re adding vibrant effects to home interiors, events, or commercial installations, this controller brings versatility and visual interest to RGB LED lighting setups.
Features:
- RF wireless remote control with up to 133 selectable modes.
- Designed for 6803/LPD6803 addressable RGB LED strips.
- Dynamic lighting sequences including chasing, color fades, and animations.
- Supports SPI signal output for precise LED sequencing.
- Memory function retains last mode after power loss.
- Adjustable mode speed and length setup.
Specifications:
| Specification | Value |
|---|---|
| Supply Voltage: | DC 12 V |
| Maximum Output Power: | ~36 W (12 V × 3 A) |
| Changing Modes: | 133 Types |
| Control Method: | RF Wireless Remote |
| Supported IC: | LPD6803 / 6803 |

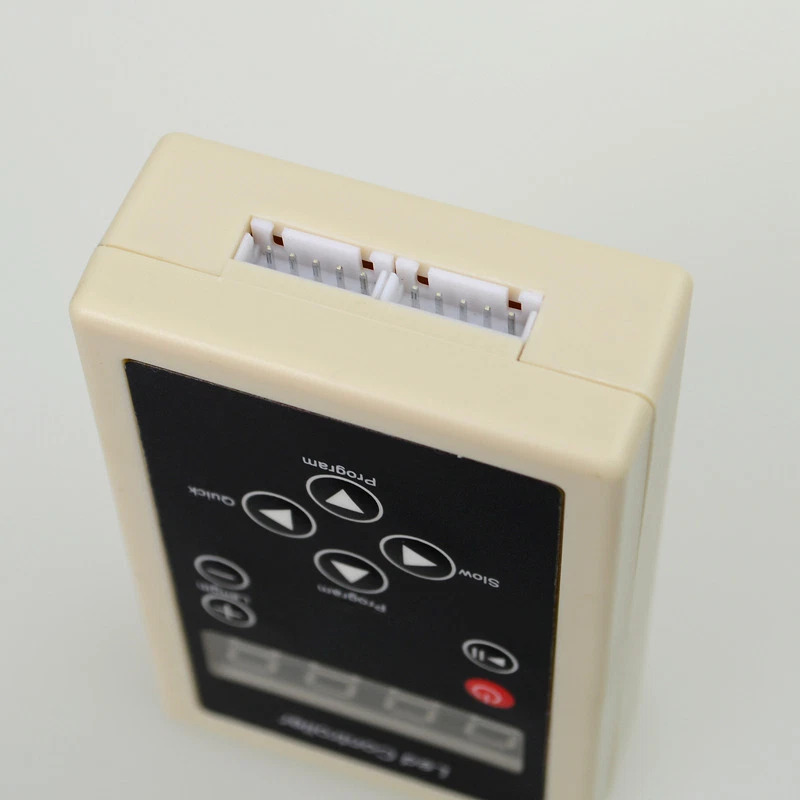

| Output Signal: | Two-group SPI |
| Working Temperature: | -20 °C to 60 °C |
| External Dimensions: | ~92 × 55 × 25 mm |
| Packing Size: | ~145 × 95 × 50 mm |
| Net Weight: | ~165 g |
| Gross Weight: | ~195 g |
Applications:
- LED RGB Strip Lighting Control.
- Decorative Ambient Lighting.
- Event & Party Light Effects.
- Accent Lighting for Displays.
- Architectural Colored Lighting.
Package Contents:
- 1× 6803 RF LED Controller main control unit
- 1× RF Remote Control wireless controller (battery included)
- 2× Connector Cables
- 1× User Manual
