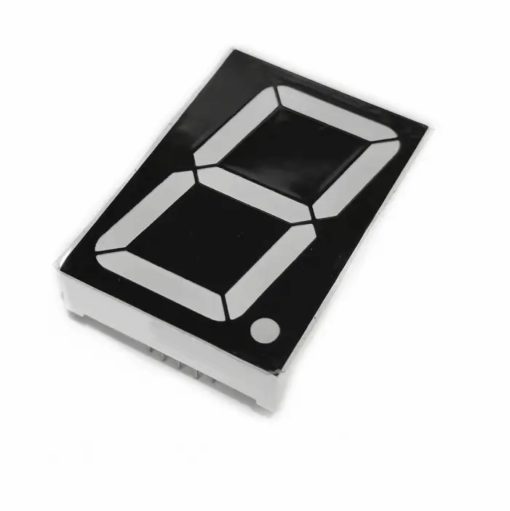

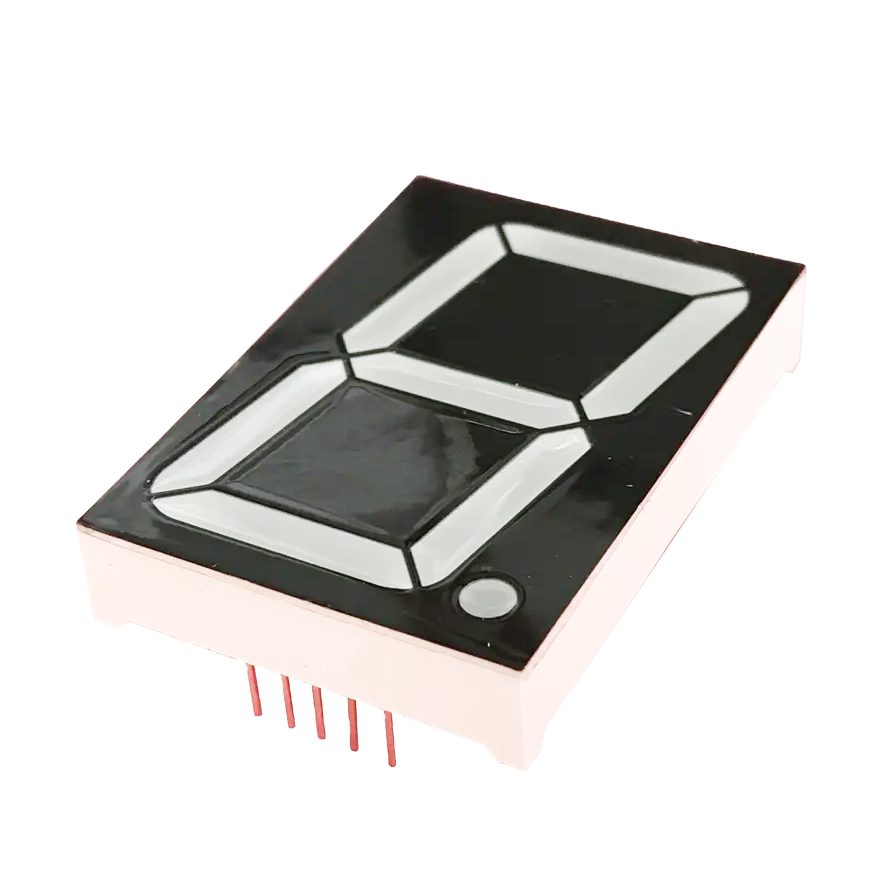

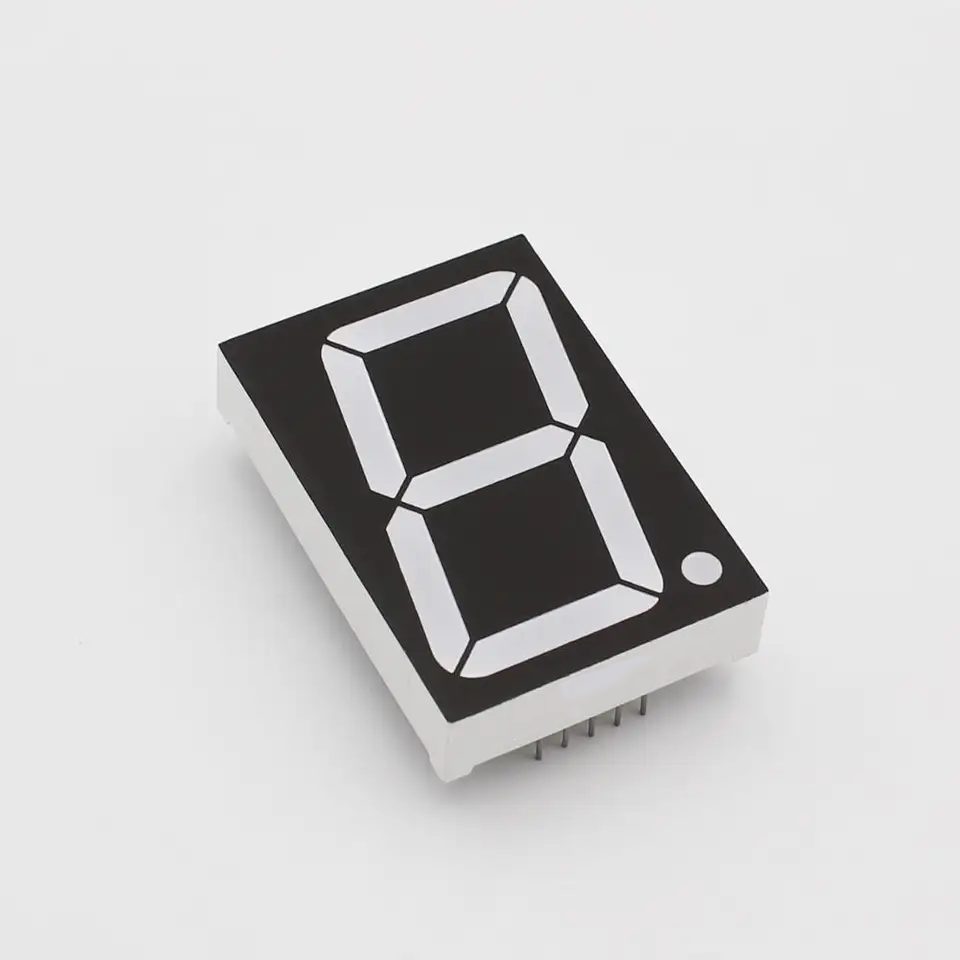

Single Digit 7 Segment Red Led Display 1.5 inch 15BS Common Anode
The Single Digit 7 Segment Red LED Display (1.5 inch, 15BS, Common Anode) is a high-quality component designed for applications requiring clear numeric output. With a digit height of 1.5 inches (38.1mm), it offers excellent visibility, making it ideal for both hobbyist and professional electronics projects.
The common anode configuration simplifies integration with standard microcontrollers and circuits. Constructed with white segments on a black surface, this display provides sharp contrast for enhanced readability. It is also RoHS-compliant, ensuring environmental responsibility and reliability.
This display is perfect for creating eye-catching numeric displays in various settings, from educational prototypes to industrial equipment. Its robust design and bright red emission ensure consistent performance across diverse applications.
Features :
- Digit Height: 1.5 inches (38.1mm) for superior visibility
- Configuration: Single digit 7-segment LED display with common anode polarity
- Emitting Color: Red, providing bright and clear output
- Dimensions: 44mm x 30.6mm x 8mm
- Contrast: White segments on a black surface for high contrast
- Compliance: RoHS Directive-compliant, environmentally friendly
- Durability: Designed for reliable performance in various conditions
Specifications :
| Parameter | Value |
|---|---|
| Emitting Color: | Red |
| Wavelength: | 620-625nm |
| Forward Voltage: | 1.8V (Typical), 2.0V (Maximum) |
| Luminous Intensity: | 110mcd (Typical), 150mcd (Maximum) |
| Test Condition: | IF=15mA |
Applications:
- Numeric displays and instrument panels.
- Digital clocks and timers.
- Consumer electronics numeric indicators.
- Test/measurement equipment readouts.
Package Contents:
- 1x Single Digit 7 Segment Red Led Display 1.5 inch 15BS Common Anode
