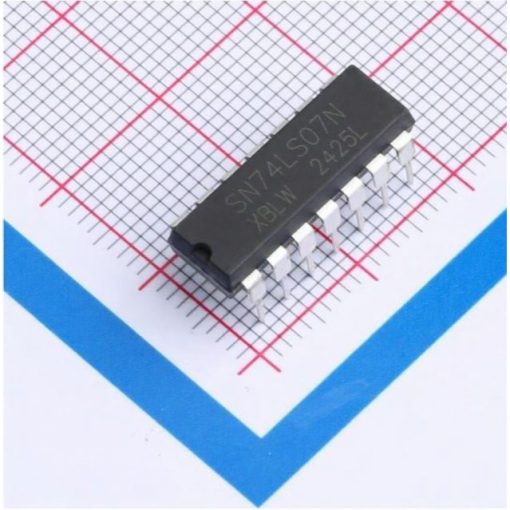

7407 Open Collector 40mA Buffer 14-Dip
The SN74LS07 Hex Buffer with Open-Drain Outputs is an integrated circuit designed for use in digital electronics. This component is a hex buffer that features open-drain outputs, which are ideal for wired-AND or wired-OR logic circuits. It allows for efficient low-voltage logic interfacing and works well in applications requiring high-speed data transmission. Operating within a voltage range of 2.0V to 5.0V, the buffer is suitable for a wide array of consumer, industrial, and commercial electronics.
Features:
- Hex buffer configuration with six independent gates.
- Open-drain outputs suitable for wired-AND and wired-OR applications.
- Wide voltage supply range: 2.0V to 5.0V.
- Fast switching speeds with low propagation delays.
Specifications:
| Parameter | Value |
|---|---|
| Category | Integrated Circuits (ICs)/Logic/Buffers, Drivers, Receivers, Transceivers |
| Manufacturer | XBLW |
| Package | DIP-14 |
| Output Type | Open Drain |
| Operating Temperature | -20℃~+85℃ |
| Number of Bits per Element | 6 |
| Series | 74LS |
| Quiescent Current (Iq) | 2uA |
| Voltage – Supply | 2V~6V |
| Number of Channels | 6 |
| Propagation Delay | 10ns @ 4.5V, 50pF |
Pin Configuration:
| Pin No. | Pin Name | Description |
|---|---|---|
| 1 | 1A | Data input |
| 2 | 1Y | Data output |
| 3 | 2A | Data input |
| 4 | 2Y | Data output |
| 5 | 3A | Data input |
| 6 | 3Y | Data output |
| 7 | GND | Ground |
| 8 | 4Y | Data output |
| 9 | 4A | Data input |
| 10 | 5Y | Data output |
| 11 | 5A | Data input |
| 12 | 6Y | Data output |
| 13 | 6A | Data input |
| 14 | VCC | Power supply |
Footprint:
Applications:
- Digital logic circuits requiring open-drain outputs.
- Consumer electronics for signal buffering.
- Industrial applications for data transmission.
- Communication systems for interfacing with low-voltage logic circuits.
- Computer peripherals for signal buffering.
