74112 DIP Dual J-K Negative-Edge-Triggered Flip-Flop With Preset and Clear
The 74112 DIP is a dual J-K negative-edge-triggered flip-flop with preset and clear inputs, ideal for sequential logic applications.
25.00 EGP
Buy Now74112 DIP Dual J-K Negative-Edge-Triggered Flip-Flop With Preset and Clear
The 74112 DIP Dual J-K Negative-Edge-Triggered Flip-Flop with Preset and Clear is an integrated circuit designed to provide reliable state changes in digital logic systems. This dual flip-flop configuration allows two independent J-K flip-flops in a single package, making it a compact solution for systems that require multiple flip-flops.
The flip-flop is triggered on the negative edge of the clock signal, ensuring precise timing in synchronization applications. It includes both preset and clear inputs, which allow for manual setting or resetting of the flip-flop states, ensuring flexibility in design and function. The J-K flip-flop mechanism enables the toggling of output states based on the J and K inputs, providing more control over the digital circuits.
This device is typically used in sequential logic circuits, where reliable state control is needed, such as in counters, shift registers, and memory storage elements. Its versatility, reliability, and integration into standard DIP packages make it an ideal choice for various digital applications.
Features:
- Dual J-K Flip-Flop Configuration.
- Negative-Edge Triggered Operation.
- Preset and Clear Inputs for State Control.
- Compact 16-Pin Package.
- Suitable for Sequential Logic Applications.
Specifications:
| Parameter | Value |
|---|---|
| Package Type: | DIP (Dual In-line Package) |
| Number of Pins: | 16 |
| Triggering Edge: | Negative Edge |
| Logic Type: | J-K Flip-Flop |
| Preset and Clear Inputs: | Yes |
| Voltage Range: | 4.5V to 5.5V |
| Temperature Range: | -55°C to 125°C |
| Power Consumption: | Low Power |

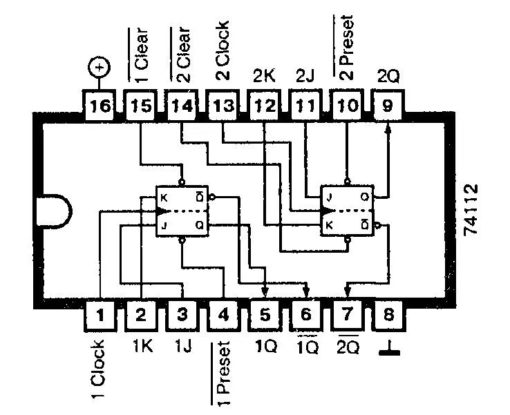

74LS112 Pin Configuration:
| Pin No | Pin Name | Description |
|---|---|---|
| 1 | 1CLK | Clock Input 1 |
| 2 | 1K | Input Pin K1 |
| 3 | 1J | Input Pin J1 |
| 4 | 1PRE’ | Active low Preset Pin 1 |
| 5 | 1Q | Output pin Q1 |
| 6 | 1Q’ | Active Low output Pin Q1 |
| 7 | 2Q’ | Active Low output Pin Q2 |
| 8 | GND | Ground Pin |
| 9 | 2Q | Output pin Q2 |
| 10 | 2PRE’ | Active low Preset Pin 2 |
| 11 | 2J | Input Pin J2 |
| 12 | 2K | Input Pin K2 |
| 13 | 2CLK | Clock Input 2 |
| 14 | 2CLR’ | Active low clear/Reset pin 2 |
| 15 | 1CLR’ | Active low clear/Reset pin 1 |
| 16 | Vcc | Chip Supply Voltage |
Applications:
- Digital Counters.
- Memory Storage Elements.
- Shift Registers.
- Sequence Generators.
Package Contents:
- 1x 74112 DIP Dual J-K Negative-Edge-Triggered Flip-Flop With Preset and Clear

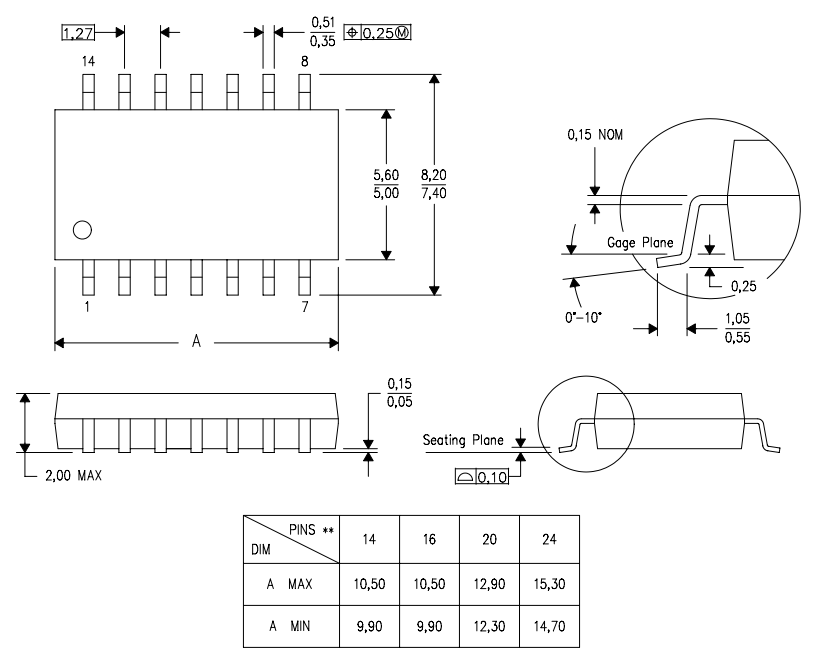

74112 Datasheet
| Weight | 2 g |
|---|---|
| Dimensions | 8 × 19 × 7 mm |
