Features

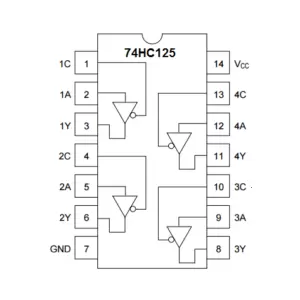

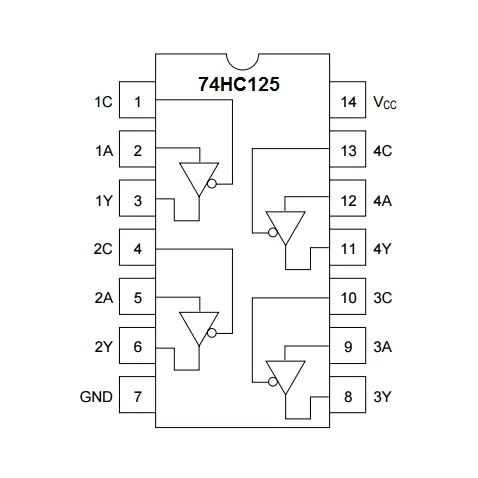

- Quad Bus Buffers with 3-State Outputs
- Separate Control for each Channel
- High-Impedance Output State
- Standard TTL Switching Voltages
Technical Specifications
| Physical | |
| Case/Package | PDIP |
| Contact Plating | Gold |
| Mount | Through Hole |
| Number of Pins | 14 |
| Technical | |
| High Level Output Current | -7.8 mA |
| Logic Function | Buffer, Inverting |
| Low Level Output Current | 7.8 mA |
| Max Operating Temperature | 85 °C |
| Max Output Current | 5.2 mA |
| Max Supply Voltage | 6 V |
| Min Operating Temperature | -40 °C |
| Min Supply Voltage | 2 V |
| Number of Bits | 4 |
| Number of Bits per Element | 1 |
| Number of Channels | 4 |
| Number of Circuits | 4 |
| Number of Elements | 4 |
| Number of Input Lines | 4 |
| Number of Inputs | 4 |
| Number of Output Lines | 4 |
| Number of Outputs | 4 |
| Operating Supply Voltage | 5 V |
| Output Current | 7.8 mA |
| Polarity | Non-Inverting |
| Propagation Delay | 190 ns |
| Quiescent Current | 8 µA |
| Turn-On Delay Time | 190 ns |
