74148 IC line priority encoder
The74148 IC line priority encoder is a high-speed TTL (Transistor-Transistor Logic) integrated circuit designed to encode eight input lines into a 3-bit binary output, prioritizing the highest-order active input. This encoder is ideal for applications requiring efficient data encoding with minimal delay.
Features:
- Encodes 8 data lines to 3-line binary (octal) output.
- Active LOW outputs: EO (Enable Output), GS (Group Select), A0–A2.
- Fully compatible with TTL logic levels.
- Wide operating voltage range: 4.75V to 5.25V.
Specifications:
| Category | Details |
|---|---|
| Manufacturer | Shenzhen honglifa Electronics Co |
| Package | PDIP-16 |
| Type | Priority Encoder |
| Current – Output Low (IOL) | 8 mA |
| Voltage Supply Source | Single Supply |
| Voltage – Supply | 4.75V ~ 5.25V |
| Current – Output High (IOH) | 400 µA |
| Operating Temperature | 0°C ~ +70°C |

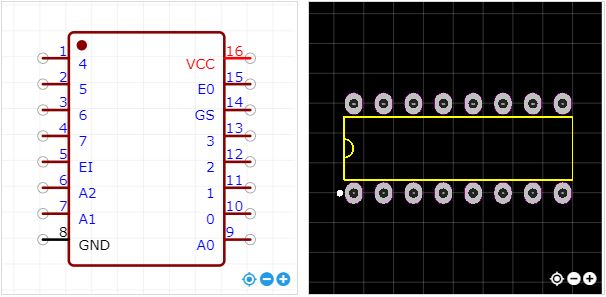

Pin Configuration:
Foot Print:
Applications:
- n-Bit Encoding.
- Code Converters and Generators.
- Industrial control applications.
- Other application areas Battery-powered equipment.
Package Include:
1x 74148 IC line priority encoder
