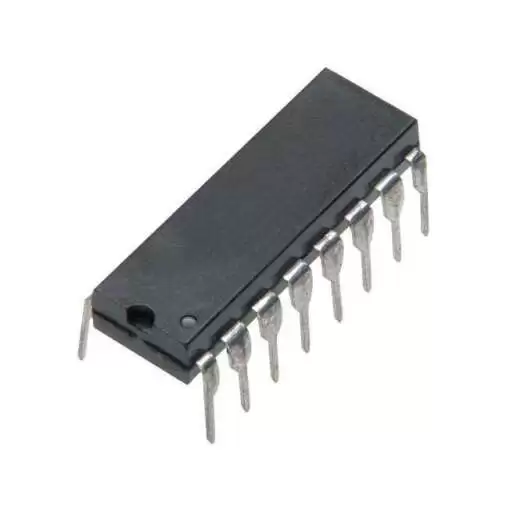

74160 IC Synchronous 4-Bit Counter

Features:

• Internal Look-Ahead for Fast Counting
• Carry Output for n-Bit Cascading
• Synchronous Counting
• Synchronously Programmable
• Load Control Line
• Diode-Clamped Inputs
• Typical Propagation time, Clock to Q output: 14ns
• Typical Maximum CLock Frequency: 32 MHz
• Typical Power Dissipation: 93mW

Specifications:

• Function: Counter
• Bits (#): 4
• Supply voltage (min): 4.75V
• Supply voltage (max): 5.25V
• Input type: Bipolar
• Output type: Push-Pull
• Operating temperature range: 0 to 70°C

Synchronous 4-Bit Counters Datasheet
