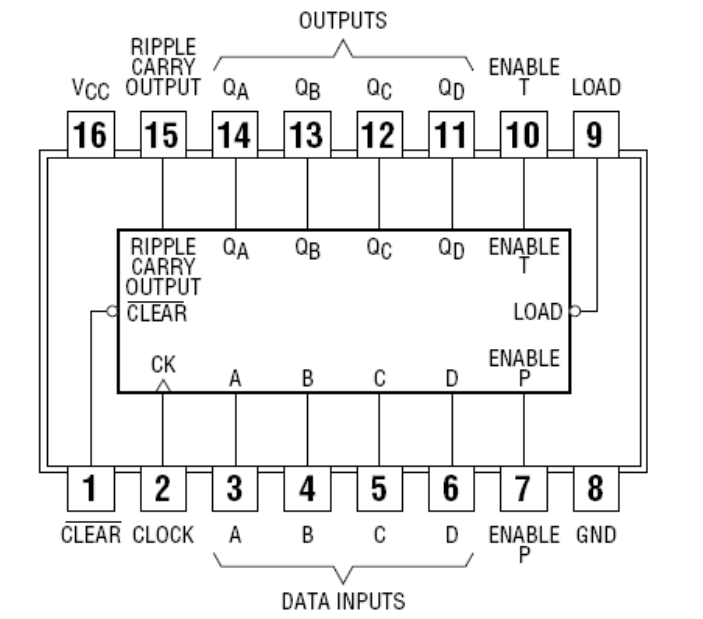

74161 IC Synchronous 4-Bit Counter (Direct Reset)

23.00 EGP

Buy Now
Availability: In Stock
SKU:3523748136796
Features
  • Internal Look-Ahead for Fast Counting
  • Carry Output for n-Bit Cascading
  • Synchronous Counting
  • Synchronously Programmable
  • Load Control Line
  • Diode-Clamped Inputs
Specifications:
Product AttributeAttribute Value
Product Category:Counter ICs
Mounting Style:Through Hole
Package/Case:PDIP-16
Counter Type:Binary
Logic Family:LS
Number of Bits:4 bit
Counting Sequence:Up
Operating Supply Voltage:4.75 V to 5.25 V
Minimum Operating Temperature:0 C
Maximum Operating Temperature:+ 70 C
Function:Counter
Operating Temperature Range:0 C to + 70 C
Output Current:8 mA/- 400 uA
74161 Datasheet
