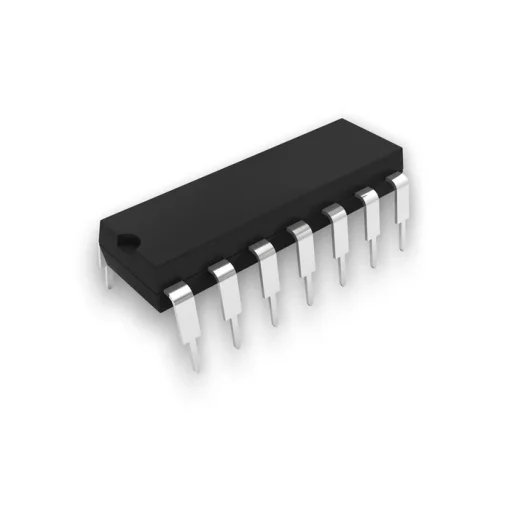

7434 Buffer & line Driver 6V 2μA IC PDIP-14

7434 is A hex non-inverting buffer used for logic level shifting and signal buffering between TTL and CMOS circuits.

10.00 EGP

Buy Now
Availability: In Stock
SKU:3496300098705
7434 Buffer & line Driver 6V 2μA IC PDIP-14

The 7434 is a hex buffer IC containing six independent non-inverting buffers in a single package. It is designed to interface TTL-level signals with CMOS circuits, ensuring compatibility and signal integrity in mixed-logic systems. The HC version operates with a supply voltage range of 2V to 6V, making it suitable for 5V systems while retaining the low power consumption and high noise immunity typical of CMOS technology.

This device is characterized for operation over a wide temperature range, meeting both industrial and military specifications. It provides strong output drive capability, capable of driving up to 10 LS-TTL loads, and includes diode protection on all inputs to guard against electrostatic discharge (ESD) and voltage spikes.

Features:
  • Six independent non-inverting buffer/driver gates.
  • Improves signal strength and fan-out capability.
  • Isolates logic stages to protect sensitive circuits.
  • TTL-compatible logic levels.
  • Suitable for driving long traces and multiple loads.
Specifications:
SYMBOL PARAMETER TEST CONDITION VCC (V) MIN. TYP. MAX. UNIT
VIH HIGH level input Voltage 2.0 1.5 V
4.5 3.15 V
6.0 4.2 V
VIL LOW level input voltage 2.0 0.3 V
4.5 0.9 V
6.0 1.2 V
VOH HIGH level output voltage VIN = VIH or VIL, IOH = -20μA 2.0 1.9 2.0 1.9 V
VIN = VIH or VIL, IOH = -20μA 4.5 4.4 4.5 4.4 V
VIN = VIH or VIL, IOH = -20μA 6.0 5.9 6.0 5.9 V
VIN = VIH or VIL, IOH = -4mA 4.5 3.98 4.3 V
VIN = VIH or VIL, IOH = -5.2mA 6.0 5.48 5.2 V
VOL LOW level output voltage VIN = VIH or VIL, IOL = 20μA 2.0 0.1 V
VIN = VIH or VIL, IOL = 20μA 4.5 0.1 V
VIN = VIH or VIL, IOL = 20μA 6.0 0.1 V
IIN Input leakage Current VIN = VCC or GND 6.0 0.1 μA
ICC Quiescent Supply Current VIN = VCC or GND, Iout = 0μA 6.0 2 20 μA
Pinout:

Pin Name Function
1 1A Input for Buffer 1
2 1Y Output for Buffer 1
3 2A Input for Buffer 2
4 2Y Output for Buffer 2
5 3A Input for Buffer 3
6 3Y Output for Buffer 3
7 GND Ground
8 4Y Output for Buffer 4
9 4A Input for Buffer 4
10 5Y Output for Buffer 5
11 5A Input for Buffer 5
12 6Y Output for Buffer 6
13 6A Input for Buffer 6
14 VCC Supply Voltage
Applications:
  • TTL-to-CMOS level conversion.
  • Signal buffering in bus-oriented systems.
  • Input/output port isolation in microcontrollers.
  • Driving high-capacitance or long trace lines.
  • General-purpose non-inverting buffer in digital designs.
Packages:
  • 1x 7434 Buffer & line Driver 6V 2μA IC PDIP-14.
Documents:
