7438 Quad 2-Input NAND Buffer With Open-Collector Outputs
7438 quad 2-input positive-NAND buffer IC features open-collector outputs, enabling wired-OR/AND for high-speed TTL and bus-driving in a 14-pin DIP.
18.00 EGP
In stockSKU 3496300149285
Buy Now
Shipping across EgyptDelivered to your door
Cash on deliveryPay when your order arrives
Not sure it fits your project?Ask us on WhatsApp - we reply fast
7438 Quad 2-Input NAND Buffer With Open-Collector Outputs
The 7438 is a quad 2-input NAND buffer IC designed for digital logic applications requiring open-collector output functionality. It contains four independent NAND gates, each capable of handling two input signals and producing an inverted logical output.
Features:
- Four independent 2-input positive-NAND buffer gates in a single 14-pin DIP package.
- Open-collector outputs that allow wired-OR and wired-AND configurations, simplifying complex gate implementations.
- Wide supply voltage range from 4.75V to 5.25V, compatible with standard 5V TTL systems.
- High-speed operation with a maximum propagation delay of 32ns at 5V and 45pF load capacitance.
- Sink output current capability of up to 24mA, suitable for driving LEDs, relays, and bus lines.
Specifications:
| Parameter | Value |
|---|---|
| Logic Type | NAND Gate – Buffer |
| Number of Circuits | 4 |
| Number of Inputs | 2 (per gate) |
| Output Type | Open Collector |
| Supply Voltage (VCC) | 4.75VDC to 5.25VDC |
| Input Logic Level – Low | 0.8V (Max.) |
| Input Logic Level – High | 2V (Min.) |
| Output Logic Level – Low | 0.4V (Max.) |
| Output Logic Level – High | 5.5V (Max.) |
| Output Current (Low) | 24mA (Sink) |
| Propagation Delay (tPLH / tPHL) | 32ns @ 5V, 45pF |
| Operating Temperature | 0°C to 70°C |
| Mounting Type | Through Hole |
| Package | 14-PDIP |

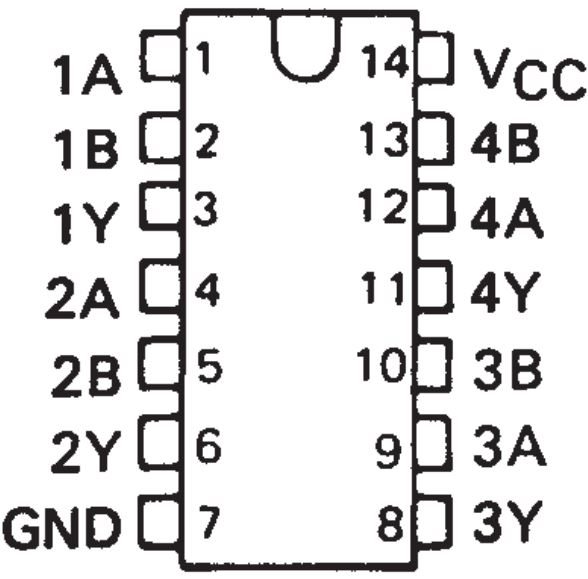

Pin Configuration:

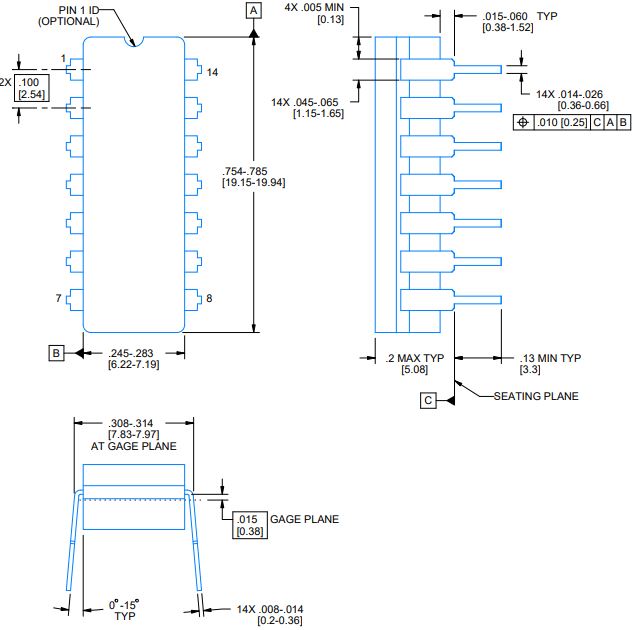

Foot print:
Applications:
- Digital logic circuit design.
- Wired-AND / wired-OR bus systems.
- LED and indicator driving circuits.
- Interface circuits between logic families.
- Industrial control logic.
- Embedded system signal conditioning.
- Educational and prototyping applications.
Package Include:
- 1x 7438 Quad 2-Input NAND Buffer With Open-Collector Outputs.
Datasheet:
