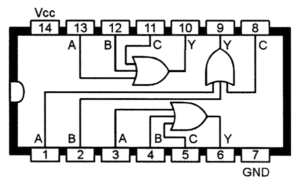

744075 IC TTL Triple 3-Input OR Gate
35.00 EGP
Buy Now
Availability:
In Stock
SKU:4637509018517
Technical Specifications
| Physical |
| Case/Package |
PDIP |
| Mount |
Through Hole |
| Number of Pins |
14 |
| Technical |
| High Level Output Current |
-5.2 mA |
| Logic Function |
OR |
| Low Level Output Current |
5.2 mA |
| Max Operating Temperature |
125 °C |
| Max Supply Voltage |
6 V |
| Min Operating Temperature |
-55 °C |
| Min Supply Voltage |
2 V |
| Number of Circuits |
3 |
| Number of Elements |
3 |
| Number of Gates |
3 |
| Number of Input Lines |
3 |
| Number of Inputs |
3 |
| Number of Output Lines |
1 |
| Number of Outputs |
1 |
| Output Current |
5.2 mA |
| Propagation Delay |
20 ns |
| Quiescent Current |
1 µA |
| Turn-On Delay Time |
80 ns |
