74HC595 8-Bit Serial to Serial/Parallel IC DIP-16
The 74HC595 is an 8-bit shift register IC used to expand digital outputs from microcontrollers such as Arduino by converting serial data into parallel outputs.
12.00 EGP
In stockSKU 8635362501272
Buy Now
Shipping across EgyptDelivered to your door
Cash on deliveryPay when your order arrives
Not sure it fits your project?Ask us on WhatsApp - we reply fast
74HC595 8-Bit Serial to Serial/Parallel IC DIP-16
The 74HC595 is a very handy IC used in many microcontroller projects. You clock in 8 bits of data (like, on/off settings for 8 LEDs) via two lines, and when you toggle a third line, it pops these settings out on 8 outputs on the IC. So you trade 3 valuable lines on your microcontroller for 8 outputs – a pretty good deal, eh?
This is called “Shifting data out” of the microcontroller by “synchronous serial communication”. This is the serial part of the deal, where each bit is “shifted in” one at a time, then BOOM, they all appear at once (in parallel) on the chip’s output.
There are some great tutorials on how to use a shift register. Here’s one for the Arduino microcontroller, but the technique holds true for pretty much all microcontrollers!
Features
- It is a shift register with 8-bit serial input and 8-bit serial or 3-state parallel outputs.
- The operating voltage of this IC is from 2V to 6V.
- The output voltage is equal to the operating voltage of this IC.
- It is based on CMOS logic and therefore consumes a very low power of 80uA.
- The output source/sink current is 35mA.
- It has a characteristic of high noise immunity.
- It can be easily cascaded through pin 9 with more IC to get more outputs.
- The maximum clock frequency is 25Mhz @4.5V.
- Schmitt trigger action is provided on all inputs.
Specifications:
| Parameter | Specification |
|---|---|
| IC Number | 74HC595 |
| IC Type | 8-Bit Shift Register |
| Logic Family | 74HC CMOS |
| Number of Bits | 8 |
| Data Input | Serial |
| Data Outputs | 8 parallel outputs |
| Serial Output | Available |
| Shift Register Clock | Rising-edge triggered |
| Storage Register Clock | Rising-edge triggered |
| Output Type | Three-state |
| Output Enable | Active LOW |
| Master Reset | Active LOW |
| Supply Voltage | 2V to 6V |
| Nominal Supply Voltage | 5V |

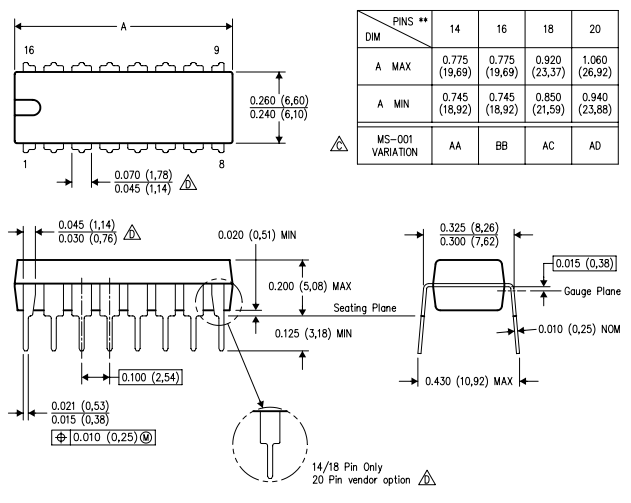

| Package Type | DIP-16 |
| Mounting Type | Through-hole |
| Operating Temperature | Typically -40°C to +85°C; depends on manufacturer |
| Supply Current | Depends on switching frequency, supply voltage, and load |
Pinout:
Applications:
- Holding Data for a long time period.
- Serial to Parallel Data Conversion.
- General Purpose Logic.
- Controlling LED’s.
Packages Included:
- 1 × 74HC595 8-Bit Serial to Serial/Parallel IC DIP-16.
Documents:
