74HC139 IC DUAL 1-OF-4 DECODER / DEMULTIPLEXER DIP-16

Features:

• The 74HC139 is a high-speed CMOS integrated circuit that provides two independent 1-of-4 Decoders/Demultiplexers.
• It is a versatile component commonly used in digital logic systems for decoding or routing signals.
• The 74HC139 decodes two binary weighted address inputs (nA0, nA1) to four mutually exclusive outputs (nY0 to nY3).
• Each decoder features an enable input (nE).
• When (nE) is HIGH all outputs are forced HIGH.
• The enable input can be used as the data input for a 1-to-4 demultiplexer application.
• Inputs include clamp diodes.
• This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.
• High-Speed Operation: Operates with a propagation delay of only a few nanoseconds, depending on supply voltage and load conditions.
• Wide Operating Voltage Range: Compatible with both 3.3V and 5V logic levels, typically ranging from 2V to 6V.
• Standard CMOS Logic: Fully compatible with TTL input levels for ease of integration in mixed-logic systems.
• Independent Operation: Two separate decoders/demultiplexers in one package.
• Active Low Outputs: Outputs are active low, which is standard for many digital logic applications.
• Enable Input: Each decoder can be individually enabled or disabled to conserve power or manage functionality.
• Low Power Consumption: Ideal for battery-powered devices or systems with strict power requirements.

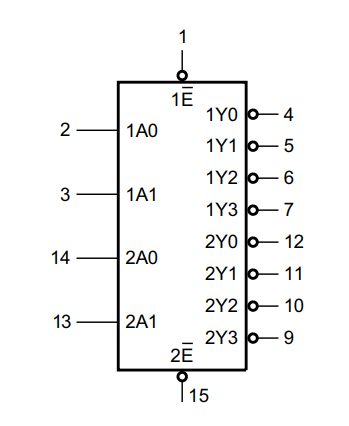

Pin Assignments:

Specifications:

Applications:

• Memory Address Decoding.
• Data Routing and Selection.
• Signal Multiplexing and Demultiplexing.
• Logic Function Generation.
• Digital Communication Systems.

Datasheet:

74HC139
