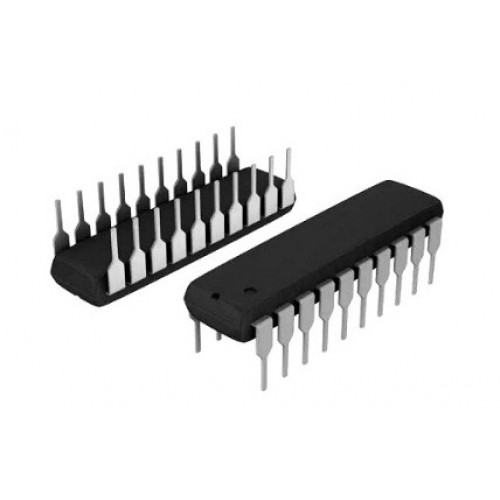

74HC273 Octal D-Type Flip-Flop with Reset IC (74273 IC) DIP-20
The 74HC273 allows for the synchronized transfer of data from eight individual inputs to their respective outputs on the rising edge of a single clock pulse. It includes a “Master Clear” (CLR) function that, when pulled low, immediately resets all outputs to a low state, regardless of the clock or data inputs.
✅Features
- Ultra-Low Power Consumption
- High Drive Capability
- Superior Speed
- Wide Voltage Flexibility
- Advanced Input Protection
- High Noise Immunity
- Minimal Leakage
📜📚Specifications
| Parameter | Rating / Value |
|---|---|
| Supply Voltage Range (VCC) | 2.0V to 6.0V |
| Operating Temperature (TA) | -40°C to +85°C |
| Max Clock Frequency (fmax) | 30 MHz (Min at 4.5V) |
| Propagation Delay (CLK to Qn) | 15 ns (Typical at 4.5V) |
| Master Clear Delay (CLR to Qn) | 15 ns (Typical at 4.5V) |
| Continuous Output Current (IO) | ±25 mA |
| Total Power Dissipation (PD) | 500 mW |
| Quiescent Supply Current (ICC) | 80 μA Max |
💻Applications
- Synchronous Data Storage
- State Registers
- Bus-Organized Systems
🎁Package Content
- 1 x 74HC273 Octal D-Type Flip-Flop with Reset IC (74273 IC) DIP-20
