Features:
- The L7906CV is a fixed-output negative voltage regulator from the L79xx series, designed to provide a stable -6V output voltage.
- It is a robust and versatile regulator widely used in electronic systems requiring a reliable negative voltage source.
- Thermal shutdown and short-circuit protection.
- Fixed Output Voltage suitable for a wide range of applications.
- Operates with input voltages between -8V and -35V.
- Supports up to 1.5A of current with proper heat dissipation.
- Automatically protects the device from overheating.
- Low ripple and noise in the output voltage make it suitable for sensitive circuits.

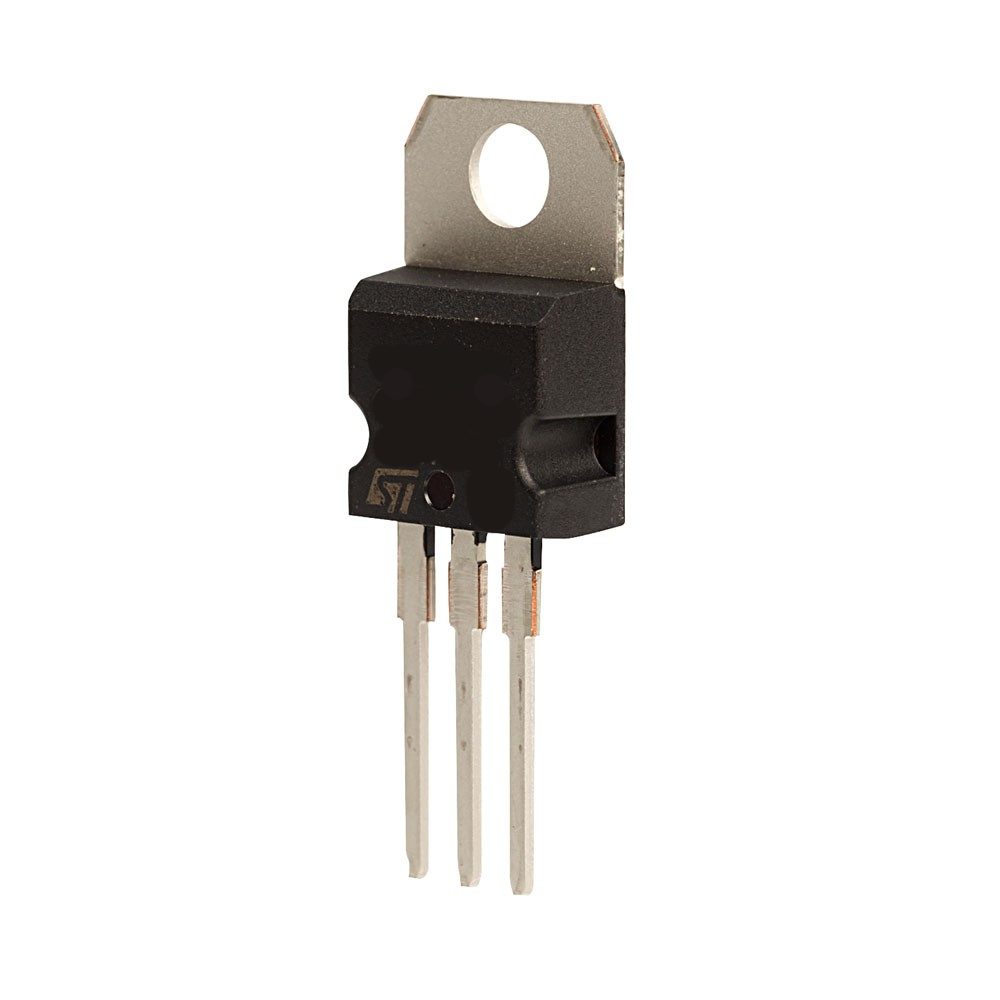

- Available in TO-220 package, ideal for through-hole mounting and effective heat dissipation.
Pin Assignments:
Specifications:
| Datasheet | L7906CV |
| Product Type | Linear Voltage Regulators |
| Series | L7906C |
| Model | L7906CV |
| Mounting Style | Through Hole |
| Package/Case | TO-220 |
| Number of Outputs | 1 Output |
| Polarity | Negative |
| Output Type | Fixed |
| Output Voltage | – 6 V |
| Output Current | 1.5 A |
| Input Voltage – Min | – 25 V |
| Input Voltage – Max | – 7 V |
| Line Regulation | 120 mV |
| Load Regulation | 120 mV |
| Operating Temperature | 0 °C to + 150 °C |
Applications:
- Dual Power Supplies: Ideal for circuits requiring both positive and negative voltage rails, such as op-amps and analog systems.
- Noise-Sensitive Systems: Precision instruments, audio amplifiers, and sensor applications.
- Power Regulation: Provides stable -6V for digital and analog circuits, ensuring proper operation.
- Battery-Powered Devices: Extends battery life and maintains voltage stability.
- Industrial Electronics: Suitable for control systems and embedded systems requiring a negative voltage supply.
