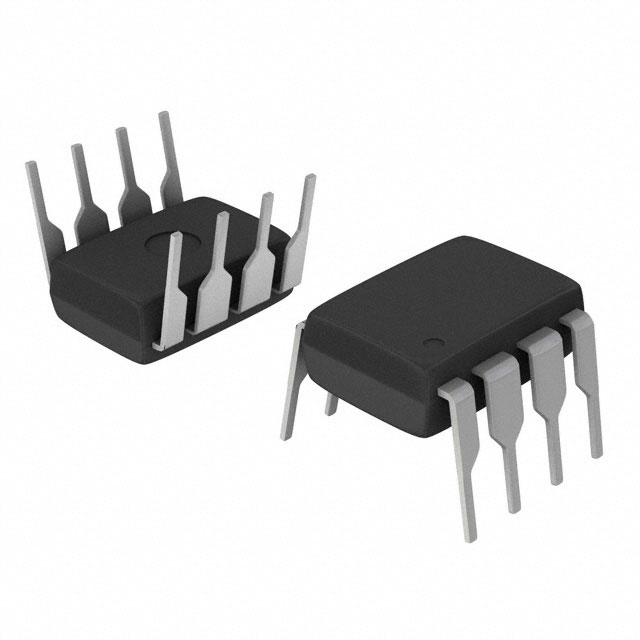

93C06EN EEPROM IC 8-DIP

93C06EN EEPROM IC 8-DIP

The FM93C06 is a 256-bit non-volatile EEPROM (Electrically Erasable Programmable Read-Only Memory) from Fairchild Semiconductor. It is organized in a 16×16-bit array and is compatible with the MICROWIRE™ synchronous serial bus, making it ideal for integration with various microcontrollers and microprocessors. The device requires a 4-wire interface with Chip Select (CS), Clock (SK), Data Input (DI), and Data Output (DO) pins for communication.

This EEPROM operates with a wide VCC range of 2.7V to 5.5V and features a typical active current of 200µA. Its low standby current options make it highly suitable for battery-powered applications. The FM93C06 supports 7 different instructions, enabling read, write, and erase operations. The device is built using Fairchild’s floating-gate CMOS process, ensuring high reliability, endurance, and low power consumption.

The FM93C06 is designed for applications where high endurance and long data retention are required. It offers 40 years of data retention and can withstand up to 1,000,000 data write cycles. The device is available in multiple packages, including 8-pin SO, 8-pin DIP, and 8-pin TSSOP, catering to different space and mounting requirements.

Features:

• Wide VCC range (2.7V to 5.5V)
• Low active current 200µA
• Ultra-low standby current (1µA for L version, 0.1µA for LZ version)
• No erase required before write
• Self-timed write cycle
• Available in 8-pin DIP, 8-pin SO, and 8-pin TSSOP packages

Specifications:

Pinout Diagram:

Footprint:

Applications:

• Consumer Electronics.
• Automotive Electronics.
• Smart Appliances.
• Remote Sensing.
• Battery-Powered Systems.
• Industrial Controls.

Package includes:

• 1x 93C06EN EEPROM IC 8-DIP

Datasheet
