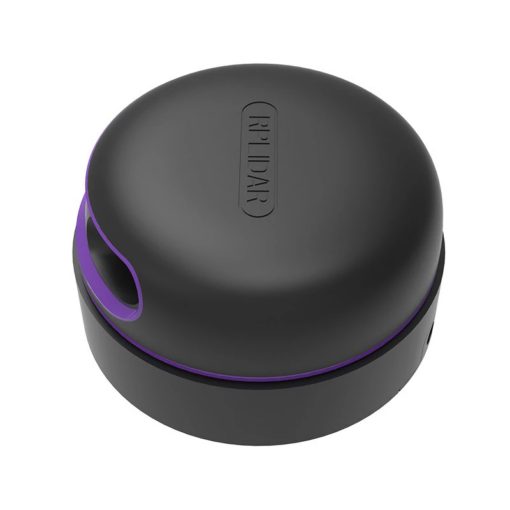

A2M12 RPLIDAR Laser Scanner 360° 12meter

• The RPLIDAR A2M12 is the 360 degree 2D laser scanner (LIDAR) solution developed by SLAMTEC. It can take up to 16000 samples of laser ranging per second thanks to its high rotation speed. The on-board system can perform 2D 360° scans within a range of 12 meters.
• The core of RPLIDAR A2 runs clockwise to perform a 360 degree omnidirectional laser range scanning for its surrounding environment and then generate an outline map for the environment.
• The RPLIDAR A2 consists of a range scanner core and mechanical powering parts which makes the core rotate at a high speed. When it functions normally, the scanner will rotate and scan clockwise allowing you to be able to get the range scan data via the communication interface of the RPLIDAR and control the start, stop and rotating speed of the rotation motor via PWM. The typical scanning frequency of the RPLIDAR A2 360° Laser Scanner is 10hz (600rpm) with an actual scanning frequency that can be freely adjusted within the 5-15hz range.
• The RPLIDAR A2 adopts a laser triangulation measurement system developed by SLAMTEC, which makes the RPLIDAR A2 have excellent performance in multiple indoor and outdoor environments. With the low noise brushless motor and OPTMAG technology, the RPLIDAR has a ultra-long life.
• SLAMTEC provides RoboStudio, a real-time monitoring tool and SDK (available for Windows, MacOS, x86 Linux and Arm Linux) to speed up the product development.

Features:

• 360-degree Scan Field where The RPLIDAR A2M12 offers a full 360-degree scanning angle, providing a comprehensive view of the surrounding environment.
• High-Resolution Data where It has a high resolution with up to 12800 samples per rotation, which translates into more detailed and accurate point cloud data for mapping and navigation.
• Long Detection Range where With a maximum detection range of up to 12 meters (depending on environmental conditions), it can detect objects at a considerable distance.
• Fast Rotation Speed where The motor rotates at a speed that allows for a fast refresh rate of environmental data.
• USB Interface where It connects to a Raspberry Pi or other single-board computers via USB, making integration simple and straightforward.
• Software Compatibility where The device comes with an SDK supporting multiple programming languages like C++, Python, etc., enabling developers to easily access and process LiDAR data.
• Low Power Consumption where It has low power consumption, suitable for battery-powered mobile robots or drones.

Specification:

• Brand: RPLIDAR
• Model: A2M12
• Measuring Range: 0.2 m – 12 m
• Sampling Frequency: 16 K
• Rotational Speed: 10 Hz (5 – 15 Hz)
• Angular Resolution: 0.225°
• Scan Field Flatness: ±1.5°
• Proof Level: Class 1
• System Voltage: 5 V
• System Current: 450 – 600 mA
• Power Consumption: 2.25 – 3 W
• Output: UART Serial (256000 bps)
• Temperature Range: 0 – 40 °C
• Angular Range: 360°
• Range Resolution: ≤1% of the range (≤12 m) | ≤2% of the range (12 ~ 16 m)
• Accuracy: 1% of the range (≤3 m) | 2% of the range (3 – 5 m) | 2.5% of the range (5 – 25 m)
• Weight: 190 g

Dimensions:

                                                                                                                     10Hz 8000 Points

Applications:

• Robotics and Autonomous Navigation.
• Industrial Automation.
• Smart Home and Security Systems.
• UAV (Unmanned Aerial Vehicles) and Drones.
• 3D Scanning and Mapping.
• Research and Development.
• Automotive Applications.

Documents:

A2M12 RPLIDAR Laser Scanner
