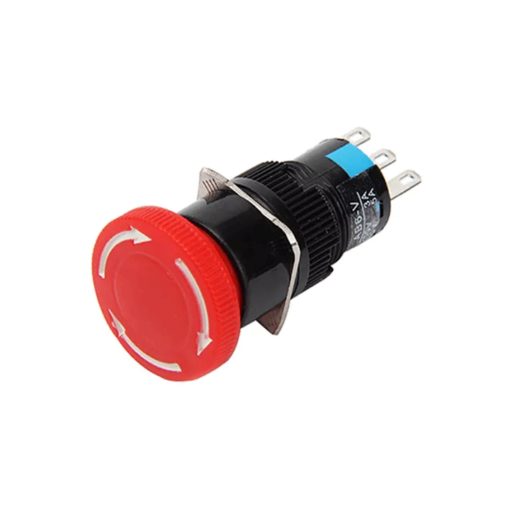

AB6-A Emergency Stop Mushroom Waterproof Push Button Switch 16mm
The AB6-A Emergency Stop Mushroom Waterproof Push Button Switch is a critical component designed for safety and control in industrial environments. This 16mm switch features a mushroom-shaped button that is easily identifiable, providing a quick emergency stop function when required. Its compact design allows it to fit into tight spaces while maintaining a high level of visibility and accessibility.
The AB6-A is built with durability in mind, with a robust construction that includes a waterproof feature. This ensures that the switch operates effectively even in environments where water exposure is a concern. The mushroom design not only provides clear visual identification but also allows for quick and easy activation in emergencies. The switch is designed to withstand mechanical stress, making it suitable for heavy-duty applications.
This push button switch is engineered to provide a reliable emergency stop function, ensuring that systems can be safely shut down in case of an emergency. Its versatility makes it ideal for a wide range of industrial applications, including machinery, control panels, and safety systems, where rapid response is essential for protecting both operators and equipment.
Features:
- Mushroom-shaped button for easy emergency activation.
- Waterproof design for use in challenging environments.
- Compact 16mm size, ideal for tight spaces.
- High visibility and easily identifiable design.
- Robust construction for durability in industrial applications.
- Quick and simple activation for safety-critical situations.
- Ideal for machinery, control panels, and industrial systems.
- Designed for emergency stop functionality, ensuring safety.
Specifications:
| Type | AB6-A | |
| Mode of Operation | Emergency Type | |
| Contact Part Type | Normally Closed Button(NC) and Normally Opened Button(NO) | |
| Contact Material | Silver, Silver Alloy, Cladding thickness is 4μm | |
|
Withstand voltage |
Between Contact and
Lamp Terminal |
2000V,AC50Hz,1 min |
| Between Terminal of the Same Pole | 1000V,AC50Hz,1 min | |
|
Between Terminal of Different Pole |
2000V,AC50Hz,1min | |
| Vibration Resistance | 50Hz, Amplitude is about 1.2mm | |
| Shock Resistance | >10g | |
| Other Function | Waterproof | |
| Rated Voltage | AC24V,AC110V,AC220V | |
| Insulation Resistance | ≥100mΩ | |
| Contact Resistance | ≤30mΩ | |
| Lifetime | ≥100×10^4times | |
| Wiring | Diameter of Welded Wire:2×0.8mm
Area of Copper Wire Max:0.75mm² Connecting Link:2.8*0.5mm |
|
| Solder Heat Resistance | 230℃ No Than 3 second | |
| conventional thermal current | 5A | |
| International Protection | IP65 | |
| pollution level | III | |
| Above Sea Level | ≤2000m | |
| Operating temperature | -25℃~+55℃ | |
| Relative Humidity | 45~85%RH(No Condensation) | |
Dimensions:
Applications:
- Industrial Machinery.
- Safety Systems.
- Control Panels.
- Automated Systems.
- Construction Equipment.
Package Contents:
- 1x AB6-A Emergency Stop Mushroom Waterproof Push Button Switch 16mm
