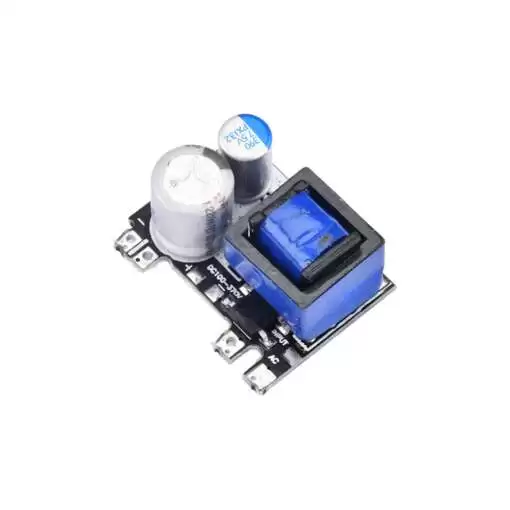

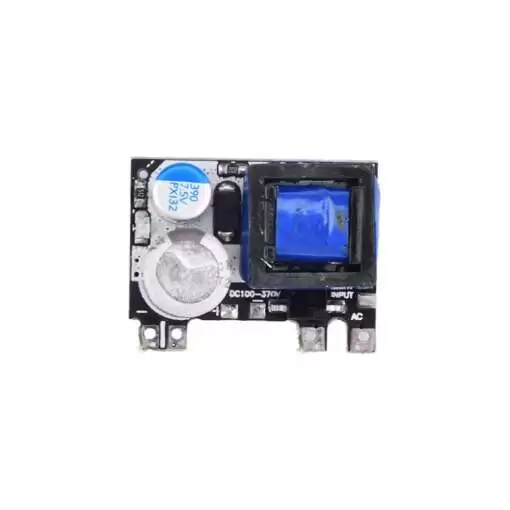

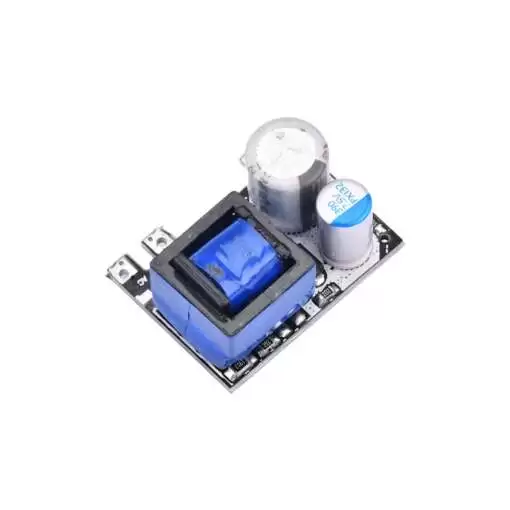

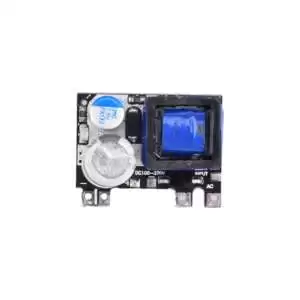

AC-DC Step Down Transformer Power Supply Module 5V 600mA 3W

5V 600mA 3W:

• Input voltage range: AC70-270V, DC100-380V
• Output Voltage;5V;max output voltage range:4.9-5.3V or 4.8-5.2V;
• Output Current:0-600mA
• Output indicator: green
• Total load power:<4w
• No load power: 0.03W
• Frequency range (Hz): 47-63
• Working temperature: – 25-70 ° C (the maximum temperature resistance of components is 105 ° C) (it is not recommended to use above 70 °C)
• Test resistance: 7 Ω (4.9v) to 5v
• Output power: ≥ 73% – 80%;
• Surge current (A) Cold start: 4A/230VAC
• Output protection: overvoltage, overcurrent, over temperature, short circuit protection, etc.
