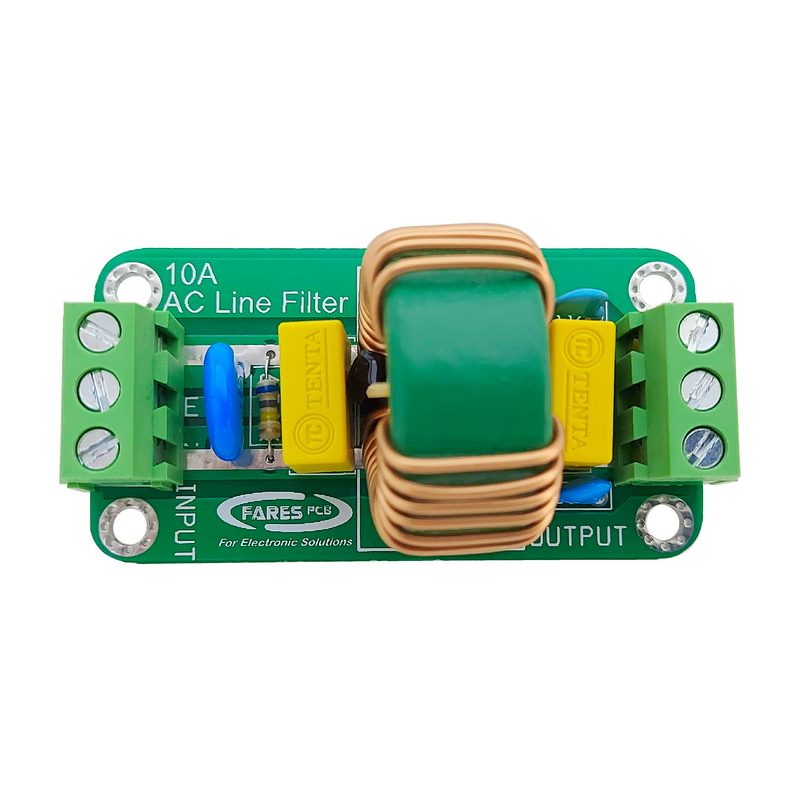

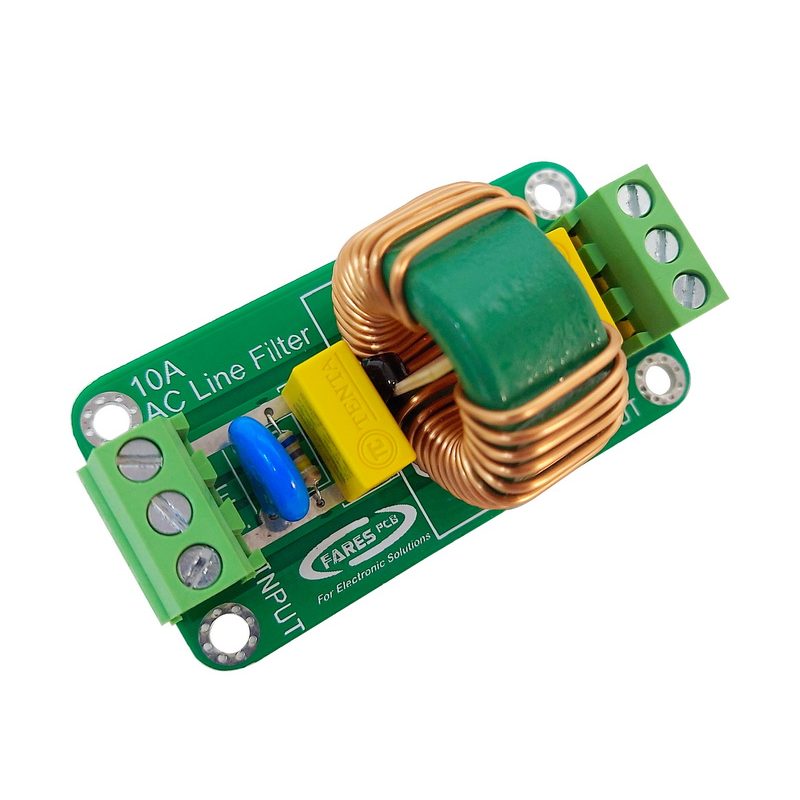

AC Line EMI Filter 10A
The AC Line EMI Filter 10A is a compact, panel-mount AC mains filter engineered to suppress conducted electromagnetic interference on single-phase power lines while allowing normal 50/60Hz power to pass, delivering continuous operation up to 10A at AC250V and featuring a 5kHz nominal cutoff for differential and common-mode noise attenuation, robust mounting provisions and compact 60mm x 30mm x 30mm dimensions suitable for industrial and consumer installations.
Features
- Maximum operating voltage AC250V.
- Rated continuous current 10A.
- Cut-off frequency 5kHz for effective attenuation of higher-frequency conducted noise.
- Common-mode choke plus X and Y safety capacitors for combined common-mode and differential-mode suppression.
- Four Ø3.5mm mounting holes for secure panel or chassis installation.
- Compact form factor with dimensions 60mm x 30mm x 30mm.
- Designed for installation at the equipment mains entry to maximise EMC performance.
Specifications
| Parameter | Value |
|---|---|
| Maximum Voltage | AC 250 V |
| Maximum Current | 10 A |
| Cut-off Frequency | 5 kHz |
| Mounting Holes | Four, Ø 3.5 mm |
| Filter Topology | Common-mode choke + X capacitor + Y capacitors |
| Dimensions | 60mm × 30mm × 30mm |
Applications
- Mains input filtering for switch-mode power supplies and industrial controllers.
- Noise suppression for audio, measurement, and laboratory equipment.
- Protection against conducted emissions in motor drives and power electronics.
- General purpose RFI/EMI mitigation at equipment AC entry points.
- Retrofit EMC improvements on existing machinery and enclosures.
Package Contents
- 1x AC Line EMI Filter 10A
