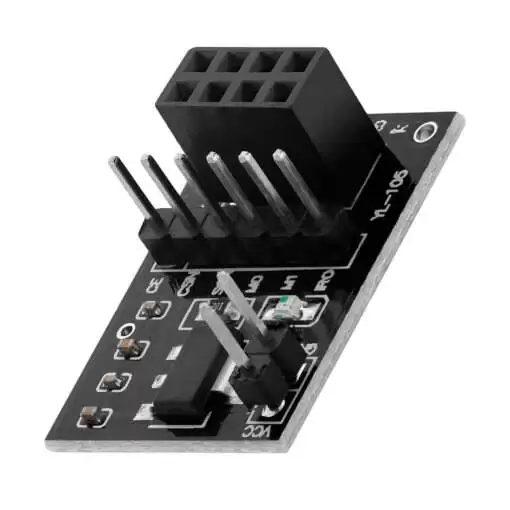

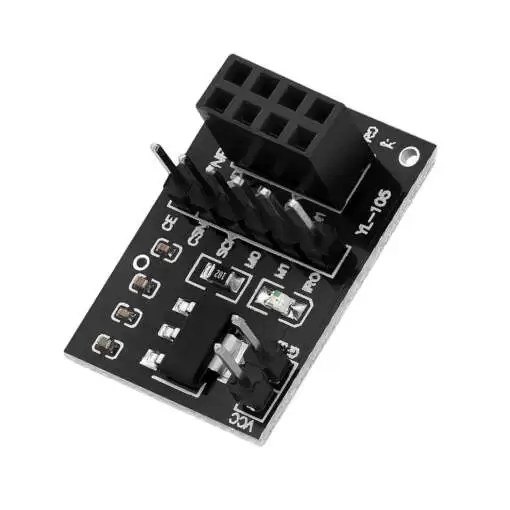

Adapter Board for NRF24L01 Wireless Module 3.3V

This 5V-3.3V VCC Adapter Board for NRF24L01 Wireless Module enables you to use NRF24l01 type transceivers on 5V systems like Arduino.

It regulates the 5V input to 1.9~3.6V DC and incorporates bypass capacitors for reliable operation. The NRF24L01 utilizes Enhanced ShockBurst (ESB) protocol to support two-way data packet communication with packet buffering, packet acknowledgment, and automatic re-transmission of lost packets.

Features:

• It can be used with the NRF24L01 wireless module
• Add core nRF24L01+ Breakout Adapter with onboard 3.3V Regulator
• Onboard 3.3V voltage regulator accepts your Arduino +5V supply and provides 3.3V for the attached nRF24L01+ module
• Allows for easy connection to nRF24L01+ modules
• Small power on SMD LED indicator
• On-Board Voltage Regulator:
  1. Voltage Regulator Input Voltage (connected to VCC): 4.8V to 12V
  2. Voltage Regulator Input Voltage Max: 15V (we recommend staying below 12V)

Specifications:

• Input Voltage: 5V DC
• Output Voltage: 1.9~3.6 DC
• Current: 12.3 mA
• It’s for 8 Pin NRF24L01+ Module
• A simple socket board is for the NRF24L01 wireless module

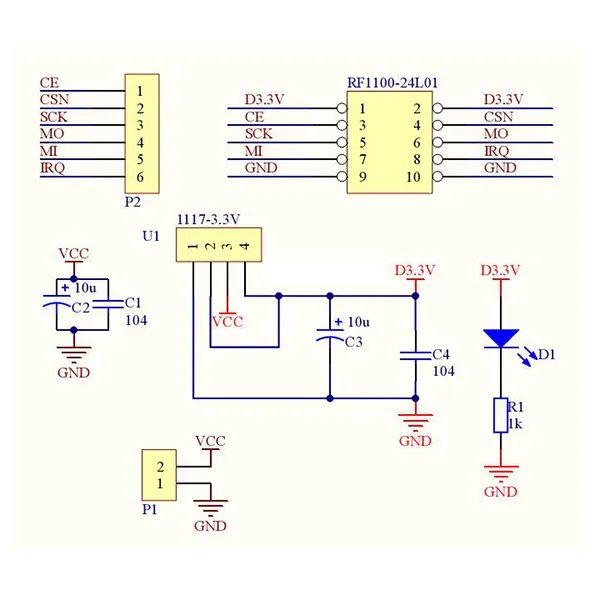

• On-board AMS1117-3.3 chip
• It can be used with the NRF24L01 wireless module
• Dimension: 26 x 19 x 12mm
