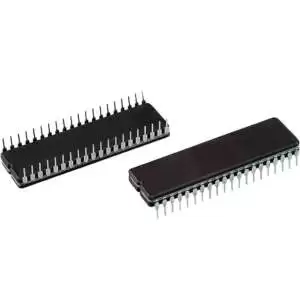

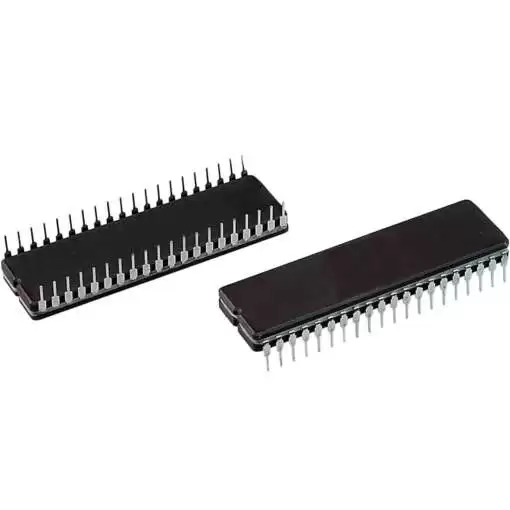

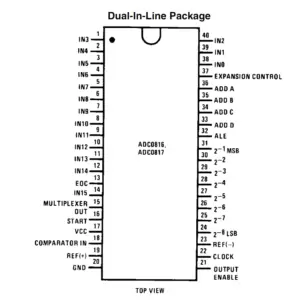

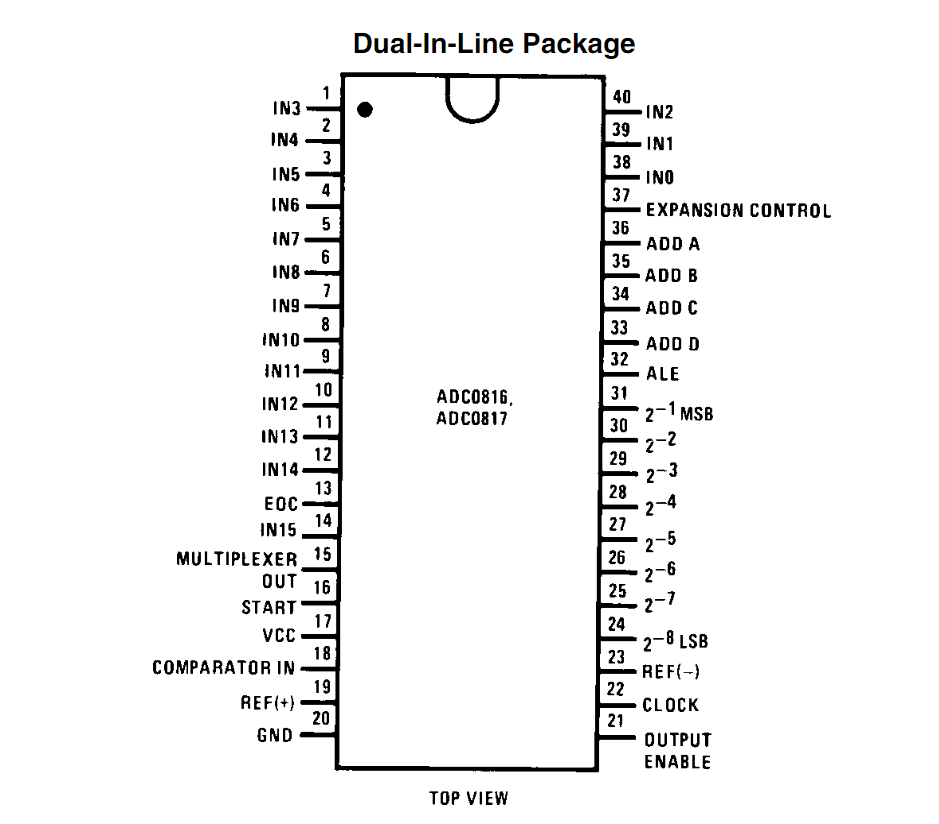

ADC0816 Analog to Digital Converter (CMOS) 8-Bit 16-Input 40-CDIP

300.00 EGP

Buy Now
Availability: In Stock
SKU:34963000839310

The ADC0816, ADC0817 data acquisition component is a monolithic CMOS device with an 8-bit analog-to-digital converter, 16-channel multiplexer and microprocessor compatible control logic. The 8-bit A/D converter uses successive approximation as the conversion technique. The converter features a high-impedance chopper stabilized comparator, a 256R voltage divider with an analog switch tree and a successive approximation register. The 16-channel multiplexer can directly access any one of 16-single-ended analog signals, and provides the logic for additional channel expansion. Signal conditioning of any analog input signal is eased by direct access to the multiplexer output, and to the input of the 8-bit A/D converter.

The device eliminates the need for external zero and full-scale adjustments. Easy interfacing to microprocessors is provided by the latched and decoded multiplexer address inputs and latched TTL TRI-STATE ® outputs.

The design of the ADC0816, and ADC0817 has been optimized by incorporating the most desirable aspects of several A/D conversion techniques. The ADC0816, and ADC0817 offer high speed, high accuracy, minimal temperature dependence, excellent long-term accuracy and repeatability, and consume minimal power. These features make this device ideally suited to applications from process and machine control to consumer and automotive applications. For similar performance 28-pin, 8-bit A/D converter, see the ADC0808, ADC0809 data sheet.

Features
  • Easy interface to all microprocessors
  • Operates ratiometrically or with 5 VDC or analog span-adjusted voltage reference
  • 16-channel multiplexer with latched control logic
  • Outputs meet TTL voltage level specifications
  • 0V to 5V analog input voltage range with a single 5V supply
  • No zero or full-scale adjust required
  • Standard hermetic or molded 40-pin DIP package
  • Temperature range −40°C to +85°C
  • Latched TRI-STATE output
  • Direct access to “comparator in” and “multiplexer out” for signal conditioning
Product Attributes
TYPE DESCRIPTION
Category Integrated Circuits (ICs)

Data Acquisition

Analog to Digital Converters (ADC)

Number of Bits 8
Number of Inputs 16
Input Type Single Ended
Configuration MUX-S/H-ADC
Ratio – S/H:ADC 1:1
Number of A/D Converters 1
Architecture SAR
Reference Type External
Voltage – Supply, Analog 4.5V ~ 6V
Voltage – Supply, Digital 4.5V ~ 6V
Operating Temperature -40°C ~ 85°C
Package / Case 40-CDIP (0.600″, 15.24mm)
Mounting Type Through Hole
