ADC0832 8-Bit Analog To Digital Converter
The ADC0832 is a successive approximation, 8-bit Analog to Digital Converter. The ADC0832 has 2 analog input channels and a serial I/O output for connecting to microcontrollers. The ADC0832 inputs can be configured for either single-ended or differential inputs. The device operates with a +5Vdc supply.
Features
- Microwire Compatible with Direct Interface to COPS Microcontrollers
- Easy Interfacing to All Microprocessors
- Operates Ratiometrically or with 5Vdc
- Remote Operation with Serial Data Link
- 0V to 5V Analog Input Voltage range with Single 5V Supply
- No Zero or Full Scale Adjust Required
- TTL/MOS Input/Output Compatible

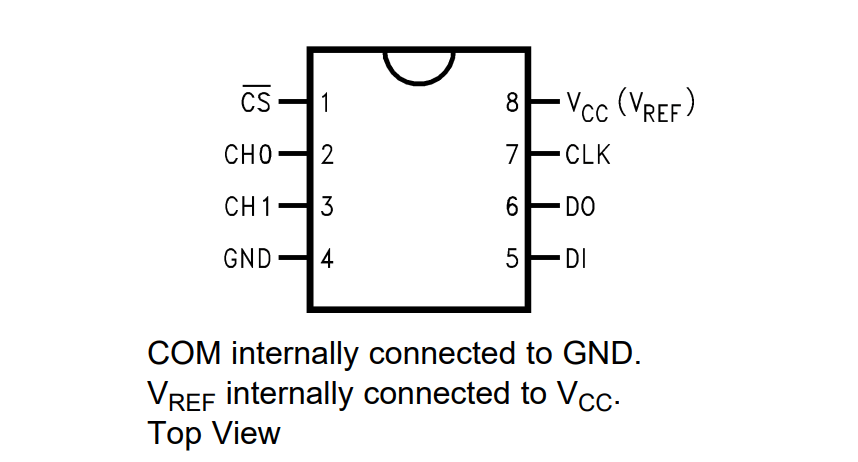

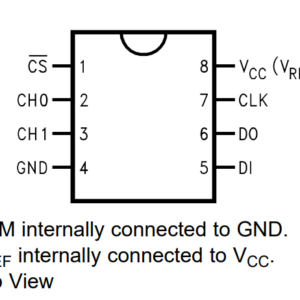

Pin Layout
| Pin Number | Description |
| 1 | CS – Chip Select (Active Low) |
| 2 | CH0 – Analog Input Channel 0 |
| 3 | CH1 – Analog Input Channel 1 |
| 4 | GND – Ground |
| 5 | DI – Data Input |
| 6 | DO – Data Output |
| 7 | CLK – Clock |
| 8 | Vcc – Positive Supply |
Specifications:
| Product Attribute | Attribute Value |
| Product Category: | Analog to Digital Converters – ADC |
| Series: | ADC0832-N |
| Mounting Style: | Through Hole |
| Package/Case: | PDIP-8 |
| Resolution: | 8 bit |
| Number of Channels: | 1 Channel/2 Channel |
| Interface Type: | 3-Wire |
| Sampling Rate: | 31 kS/s |
| Input Type: | Differential/Single-Ended |
| Architecture: | SAR |
| Analogue Supply Voltage: | 5 V |
| Digital Supply Voltage: | 5 V |
| Minimum Operating Temperature: | 0 C |
| Maximum Operating Temperature: | + 70 C |
| Input Voltage: | 5 V |
| Number of ADC Inputs: | 1 Input/2 Input |
| Number of Converters: | 1 Converter |
| Pd – Power Dissipation: | 800 mW |
| Power Consumption: | 15 mW |
| Supply Voltage – Max: | 5 V |
| Supply Voltage – Min: | 5 V |
