Ai-Thinker Ai-M62-32S WiFi 6 + BLE 5.3 Module

Ai-Thinker Ai-M62-32S WiFi 6 + BLE 5.3 Module

The Ai-Thinker Ai-M62-32S WiFi 6 + BLE 5.3 Module, developed by Shenzhen Ai-Thinker Technology Co., Ltd., is a cutting-edge solution designed to meet the connectivity demands of modern Internet of Things applications. This module integrates advanced Wi-Fi 6 IEEE 802.11b/g/n/ax and Bluetooth Low Energy (BLE) 5.3 technologies, providing high-speed, reliable, and secure wireless communication for a diverse range of devices, from smart home systems to wearable electronics.

Features:

• SMD-38 package.
• Supports 2.4GHz operating frequency band.
• Support IEEE 802.11 B/g/n/ax.
• Support BLE5.3.
• Support Thread.
• Support Wi-Fi/BLE/Thread coexistence.
• Wi-Fi security support WPS/WEP/WPA/WPA2/WPA3.
• Supports 20/40MHz bandwidth, 1T1R, maximum rate 229.4 Mbps.
• Support STA, SoftAP, STA + SoftAP and sniffer modes.
• 32-bit RISC-V CPU with FPU and DSP, with a maximum dominant frequency of 320M.
• 532KB SRAM,128KB ROM,4Kb eFuse.
• Support Audio Codec, USB2.0, SDU, SD/MMC(SDH), SPI, UART, I2C, I2S, PWM, GPDAC, GPDC, ACOMP, GPIO, etc.
• Integrated RF Balun, PA/LNA.
• Support for safe startup and safe debugging.
• Support XIP QSPI On-The-Fly AES decryption (OTFAD).
• Support Trust Zone.
• Support AES-CBC/CCM/GCM/XTS mode.
• Support MD5, SHA-1/224/256/384/512.
• TRNG (True Random Number Generator) is supported.
• Support PKA (Public Key Accelerator) for RSA/ECC.
• BLE-enabled Wi-Fi fast connection.
• Universal AT command can be used quickly.
• Supports secondary development and integrates Windows and Linux development
  environments.

Specifications:

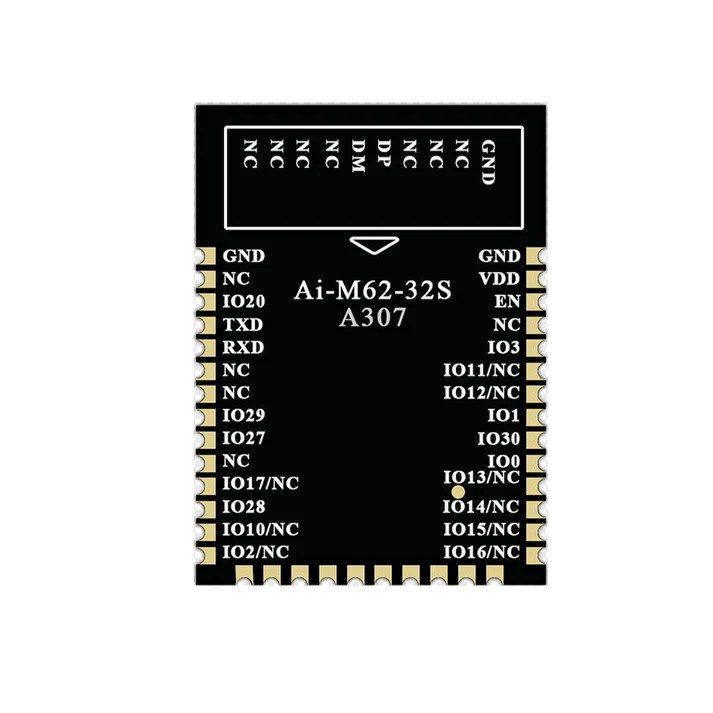

Pin Configuration:

Application:

• Internet of Things (IoT) devices.
• Smart home systems.
• Wearable electronic devices.
• Mobile devices.
• Audio and video multimedia applications.
• Industrial automation.

Package Include:

• 1x Ai‑Thinker Ai‑M62‑32S Wi‑Fi 6 + BLE 5.3 Module.

Data Sheet:

Ai-M62-32S
