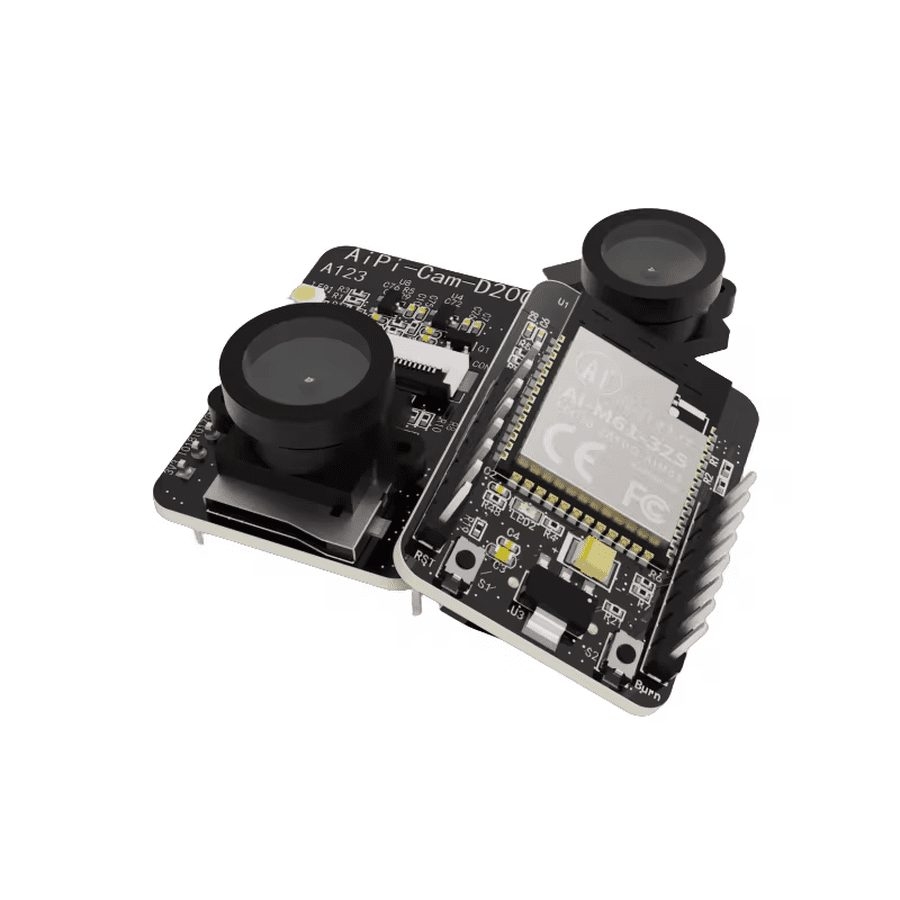

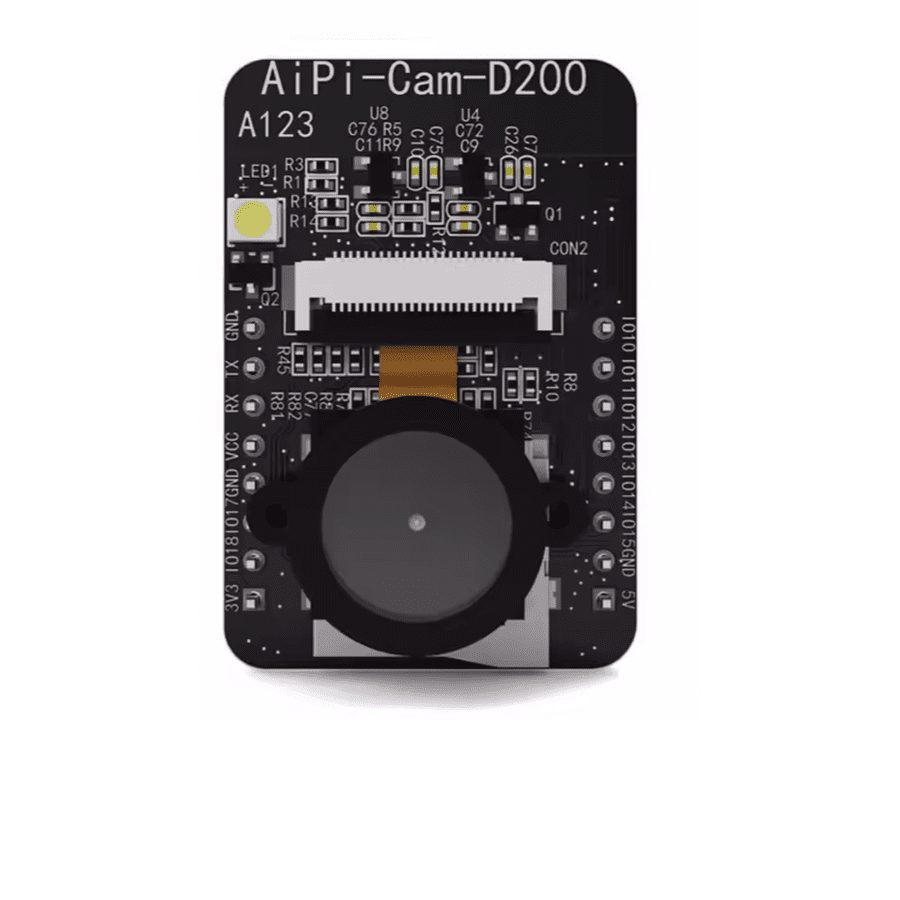

Ai-Thinker AiPi-CAM-D200 with Ai-M61-32S & GC2145 Camera Module. Compatible with ESP32 CAM
The AiPi-CAM-D200 is a high-performance camera core board developed by Ai-Thinker, designed to leverage the capabilities of the Ai-M61-32S module. This module supports advanced wireless protocols, including WiFi 802.11b/g/n/ax (WiFi6), Bluetooth Low Energy (BLE) 5.3, and Thread, making it a versatile choice for Internet of Things (IoT) applications. The board is an upgraded iteration of the AiPi-Cam-D, featuring a 2-megapixel (2MP) camera and a TF card holder for local storage, addressing limitations of earlier models like the Ai-WB1-32S-CAM.
Features
- Compatibility: Fully compatible with the Ai-WB1-32S-CAM, allowing for easy upgrades or integration with existing projects.
- TF Card Holder: Includes a TF card slot for local storage of images and videos, enhancing functionality over previous models.
- High-Resolution Camera: Equipped with a 2MP camera (GC2145) for clear imaging.
- Advanced Connectivity: Supports WiFi6, BLE 5.3, and Thread protocols for robust wireless communication.
- Developer-Friendly Design
- Preloaded Firmware: Comes with factory-loaded firmware, reducing setup time for users.
- Versatile Applications: Suitable for a wide range of IoT applications, from smart home devices to industrial monitoring.
Specifications
| Category | Details |
|---|---|
| Camera | |
| Model | GC2145 |
| Resolution | 2MP (1600×1200 pixels) |
| Focal Length | 2 meters |
| Module | |
| Model | Ai-M61-32S |
| CPU | 32-bit RISC-V, up to 320MHz, with Floating Point Unit (FPU) and DSP |
| Memory | 4MB pSRAM, 532KB SRAM, 128KB ROM, 4Kb eFuse |
| Wireless Protocols | WiFi 802.11b/g/n/ax, BLE 5.3, Thread |
| Interfaces | DVP, MJPEG, Display, Audio Codec, USB2.0, SDU, Ethernet (EMAC), SD/MMC (SDH), SPI, UART, I2C, I2S, PWM, GPDAC, GPADC, ACOMP, GPIO |
Applications
- Home Smart Devices
- Industrial Wireless Control
- Wireless Monitoring Systems
- QR Code Wireless Identification
- Wireless Positioning Systems
- General IoT Projects
Package Content
- 1 x Ai Thinker AiPi-CAM-D200 ESP32 CAM Development Board with Ai-M61-32S & GC2145 Camera Module
